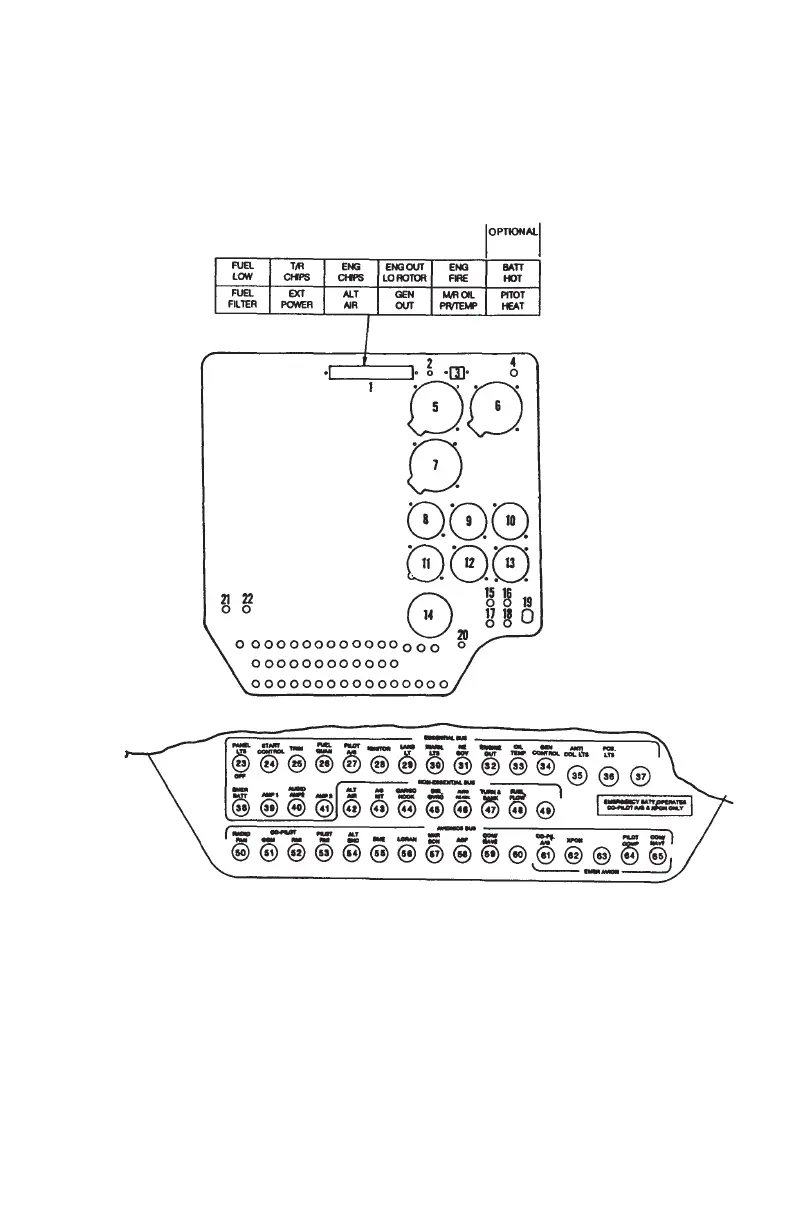

Figure 4-2. Instrument Panel (Sheet 1 of 3)
Normal Procedures
Schweizer RSG, LLC.
Model 269D Helicopter
Pilot's Flight Manual
4-11
R
eissued: 16 Jan 2019
RIGHT SEAT PILOT-IN-COMMAND
NOTES:
1. SEE SHEET 3 OF 3 FOR LEGEND.
2. THE ALTERNATE AIR DOOR CONTROL SWITCH AND THE ANTI-ICE
CONTROL ARE LOCATED TO THE LEFT OF THE RIGHT PILOT’S SEAT,
BELOW THE COLLECTIVE STICK .
* SEE BELOW FOR
CIRCUIT BREAKER
PANEL DETAILS
FAA Approved
