l to Seat Assembly
.
Assembly hardware required: (4) M8 Allen Bolts 16mm (item #22)
(4) Flat Washers Ø8 * Ø19 * 2T(item#2)

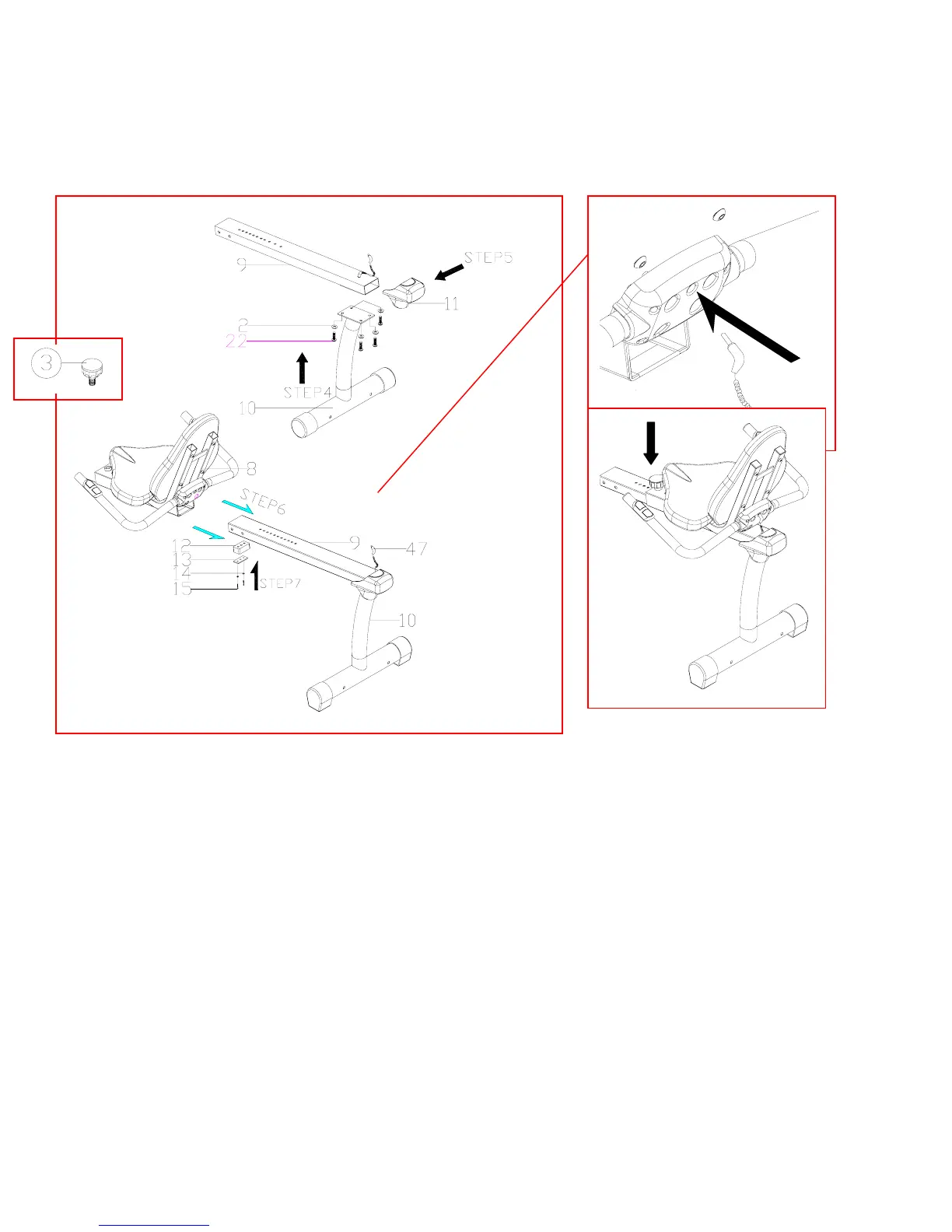

Step 4: Attach SEAT RAIL (#9) to REAR STABILIZER TUBE (#10) with 4 FLAT
WASHERS (#2) and 4 ALLEN BOLTS (#22). Tighten bolts.
Step 5: Place END CAP (#11) on the end of the SEAT RAIL (#9). Make sure the
HR CABLE (#47) is strung through the exit slot on the SEAT RAIL before end cap is
secured.
Step 6: Insert SEAT PIN ADJUSTMENT KNOB (#3) into SEAT FRAME (#8).
Slide the seat assembly from stage 1 onto the SEAT RAIL (#9). Tighten seat
assembly to the rail with the SEAT PIN ADJUSTMENT KNOB (#3). Insert HR
CABLE (#47) into HR input on the back of the seat assembly.
Step 7: Attach BUFFER (#12), BUFFER PLATE (#13), FLAT WASHER (#14) and
SCREWS (#15) to the bottom of the seat rail as illustrated above.
Assembly Stage #2
Attach Rear Stabilizer and Seat Rai
