Schwinn 202 - Assembly Stage #4: Attach Seat Rail and Lower Base Frame

Assembly Stage #4
at Rail and Lower Base Frame to MAttach Se ain Unit
9
#22) Assembly Hardware Required: (7) Allen Bolts 16 mm long (item
(3) Flat Washers (item #2)
(2) Allen Bolts 90 mm long (item #24)
(2) Curved Washers (item #19)
(4) Flat Washer (item #7)
Ste
wit n
unt
31

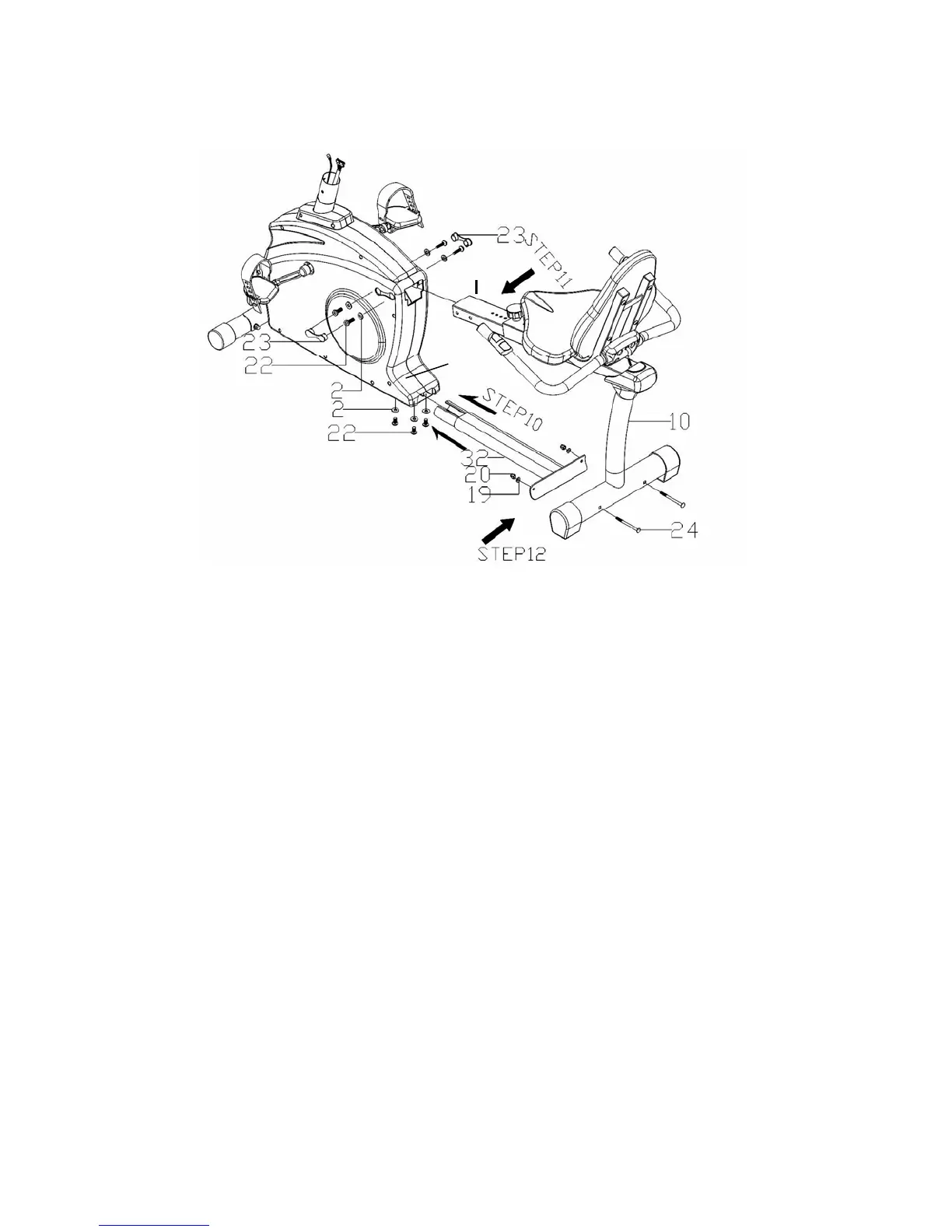

p 10: Slide the LOWER BASE FRAME (#32) into the MAIN UNIT (#31), attach
h 3, 16mm BOLTS (#22) and 3 FLAT WASHERS (#2). Do not completely tighte
il after step 12.
