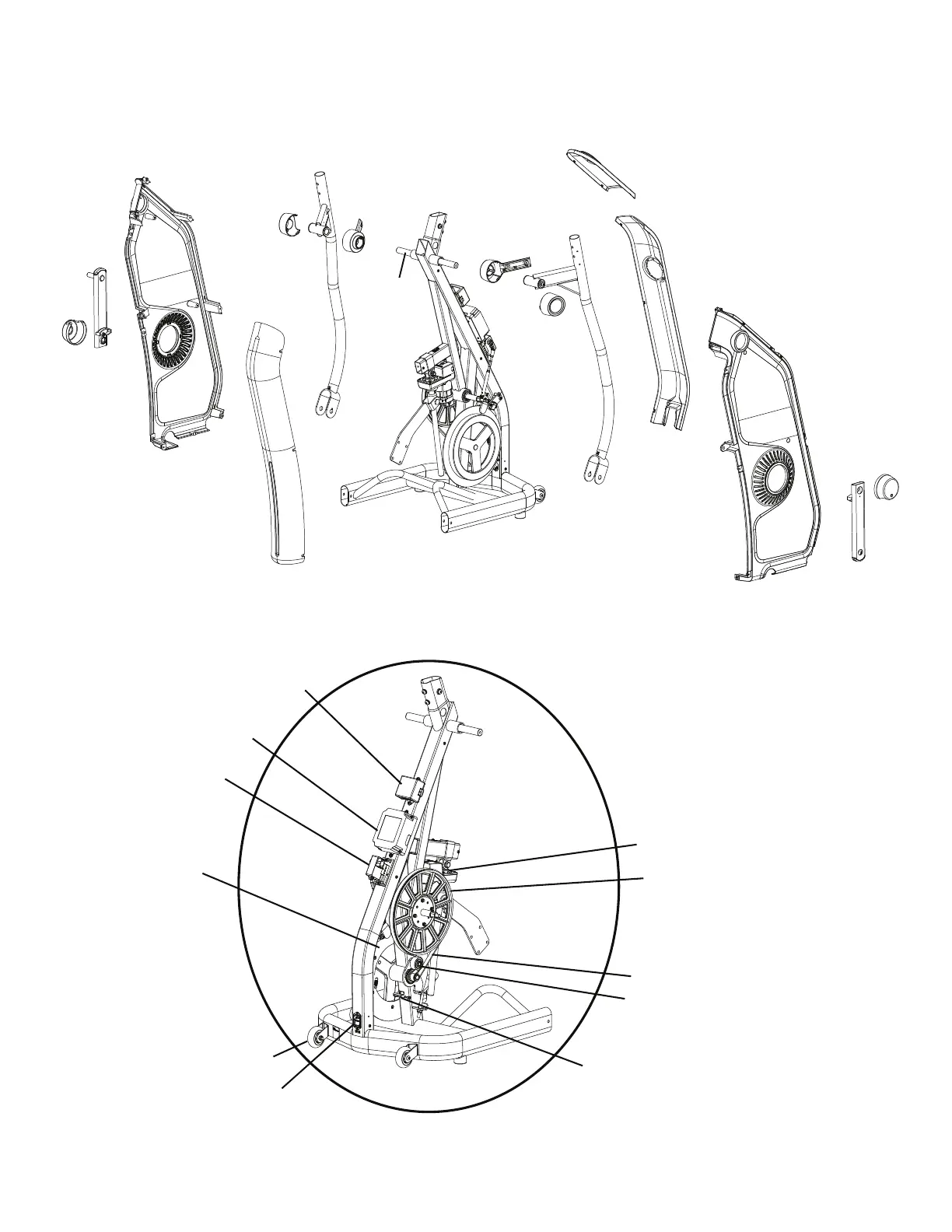

Schwinn 490e - Page 11

11
Lower Handle-
bar, Right
Front Upper
Shroud
Crank
Cap
Shroud
Front Lower
Shroud
Lower Handle-
bar, Left
Crank
Cap
Shroud
Crank
Arm
Crank
Arm
Left Main Shroud
Right Main Shroud
Pivot Cover
Outer Cap
Inner Pivot
Shroud
Inner Pivot
Shroud
Pivot Cover
Outer Cap
Rear Shroud
Servo Motor
Transport Wheel
Power Switch and Inlet
Flywheel
Speed Sensor Assembly
Incline (Lift) Motor
Drive Pulley
Drive Belt
Idler Pulley
Sensor Board
O󰀪inePowerSupply
Main Assembly Frame
Pivot Rod
Maintenance Parts - Main Assembly
