48

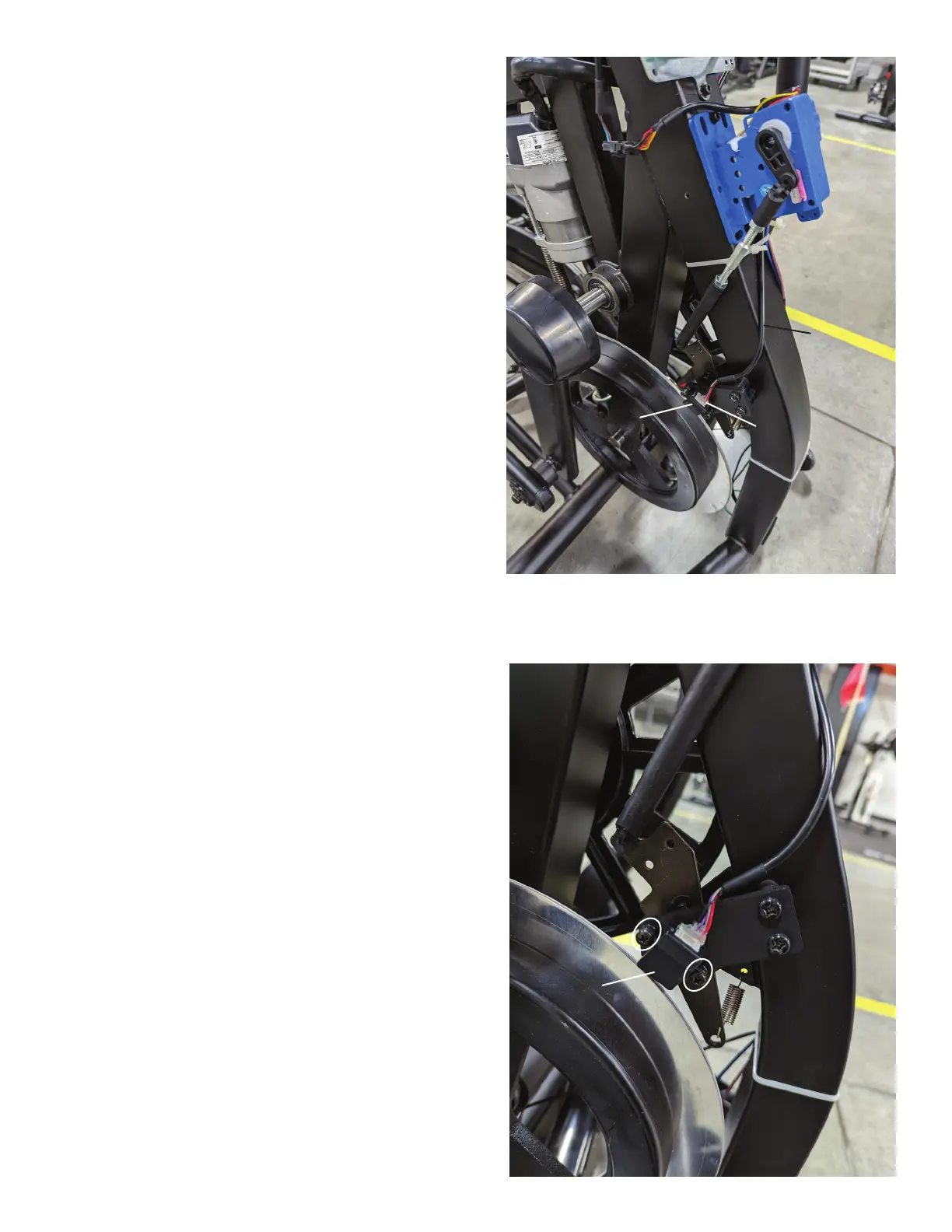

Note: The Resistance Sensor can be accessed by
gentlyexingtheRightMainShroudoutward
slightly. The Shrouds have been removed from
the images to provide additional details.
5. Disconnect the Resistance Sensor Cable Connector
from the Resistance Sensor.
Resistance
Sensor
Resistance
Sensor
Split Cable As-
sembly
(Servo, Speed
and Resistance)
Resistance Sensor
Cable Connector
6. Using a #2 Phillips screwdriver, remove the two screws
(indicated by ovals) that secures the Resistance Sensor.
7. Using a #2 Phillips screwdriver, connect the new
Resistance Sensor to the Frame.
8. Connect the Resistance Sensor Cable Connector to the
Resistance Sensor.
