58
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always
unplug the power cord from the wall outlet and wait 5 minutes before cleaning, main-
taining or repairing this machine. Place the power cord in a secure location.
Note:Yourmachinemaynotmatchtheimagesprovidedexactly.
1. Unplug the AC Adapter from the wall outlet and machine.
2. FlextheedgesoftheFrontLowerShroudtodisengage
the 6 inside tabs from the Main Shrouds.
Note: It may be easier to pry up the edges of the Front
LowerShroudusingaatheadscrewdriver.To
avoid damage to the surface of the Shrouds,
we recommend putting a piece of cloth over the
screwdriver blade.
Note: All Shrouds have been removed for clarity.
Make sure that power to the machine is discon-
nected before beginning this step.

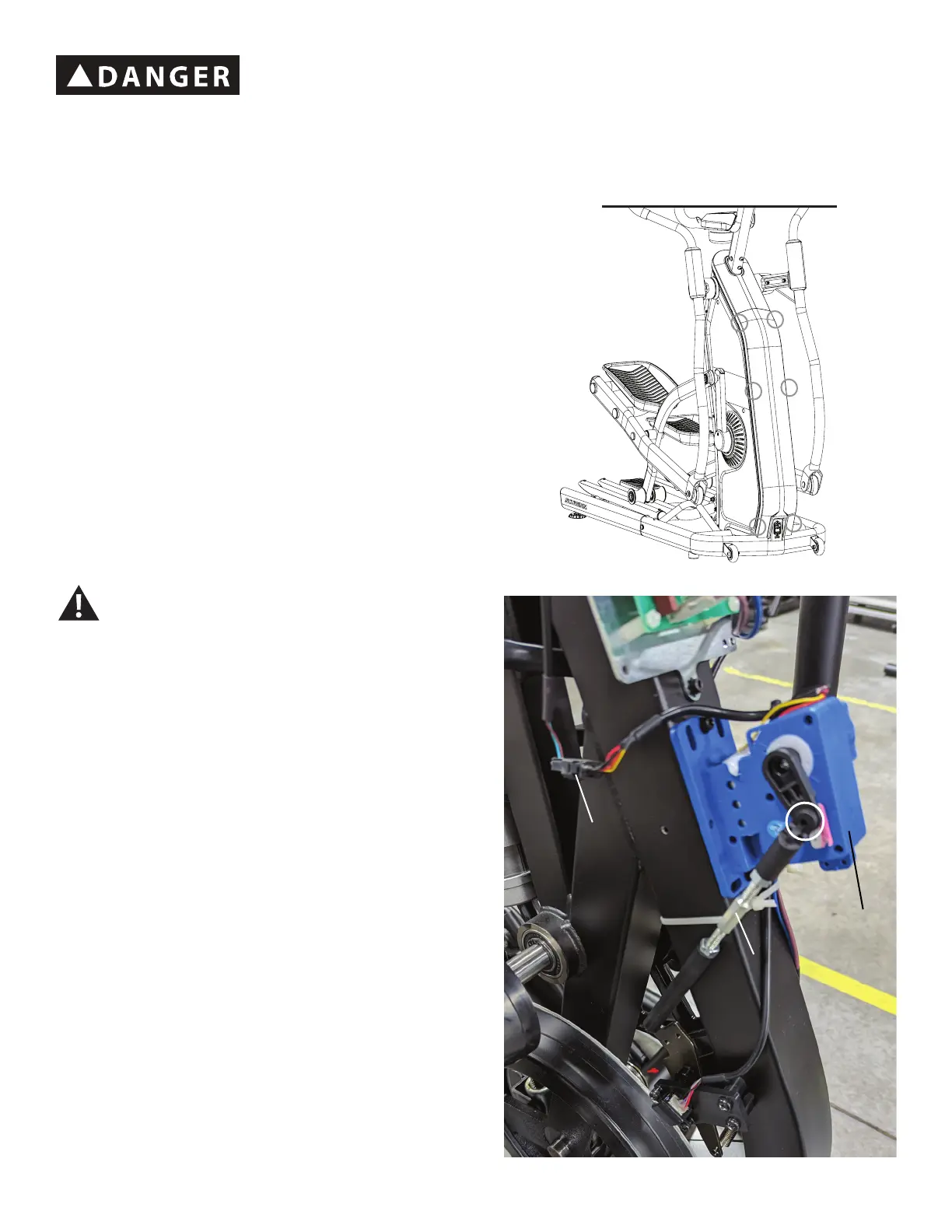

3. Carefully disconnect the Servo Motor Cable Connectors.
NOTICE: Do not pinch or cut the cables.
4. Using a standard screwdriver, gently separate the tabs
(indicated by oval) that connects the Servo Motor Linkage to
the Servo Motor.
Servo Motor
Servo Motor Cable
Connectors
Servo Motor
Linkage
