Note: Your machine may not match the image. For reference only.

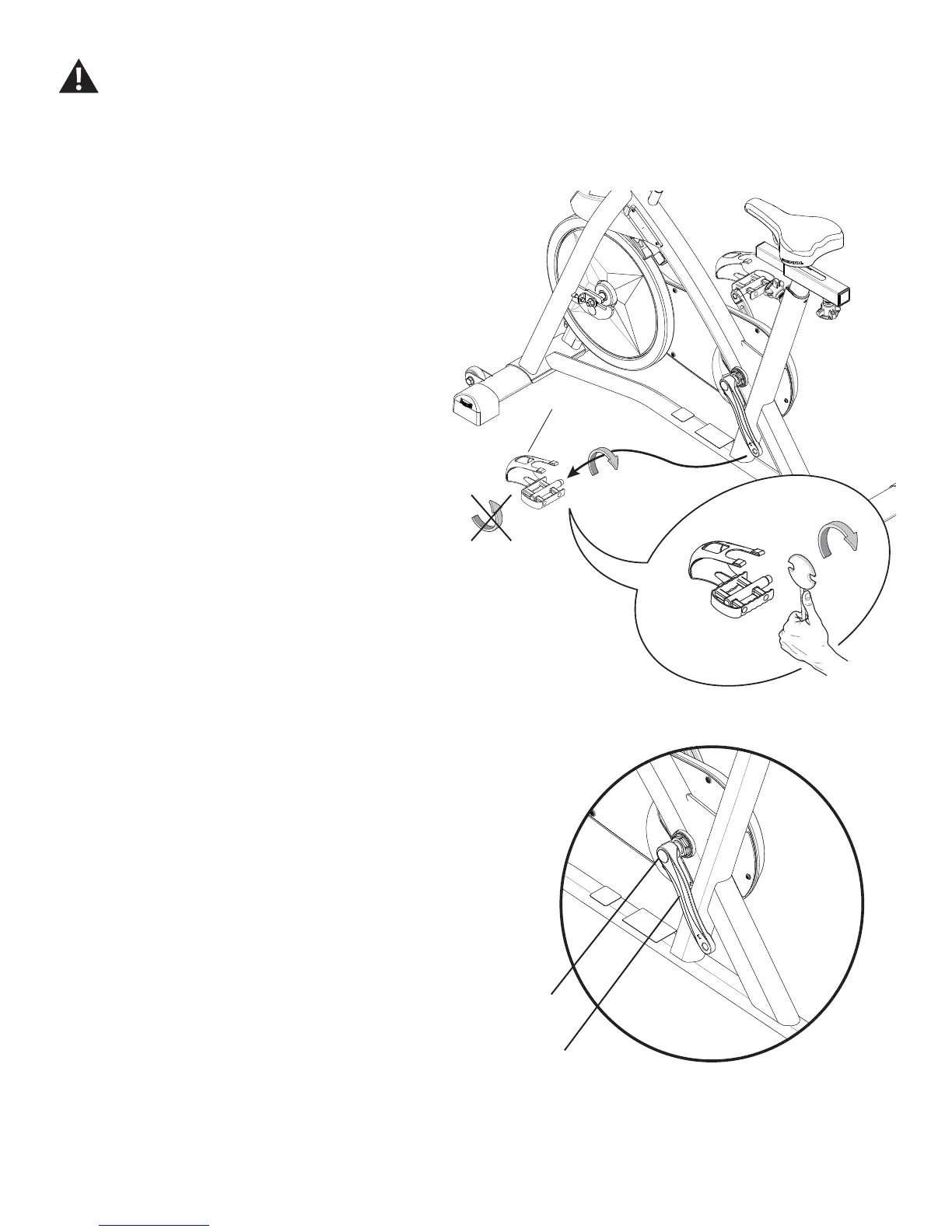

1. Loosen and remove the Left Pedal. Set it safely aside for
reassembly.
Note: The Left Pedal is reverse-threaded.
Orientation is based from a seated position
on the bike. The Left Pedal has an “L”.
2. Using a flathead screwdriver, remove the threaded Cap (B)
from the Crank Arm (A).
Disconnect the data cable from the console before you service this machine.
B
A
L
