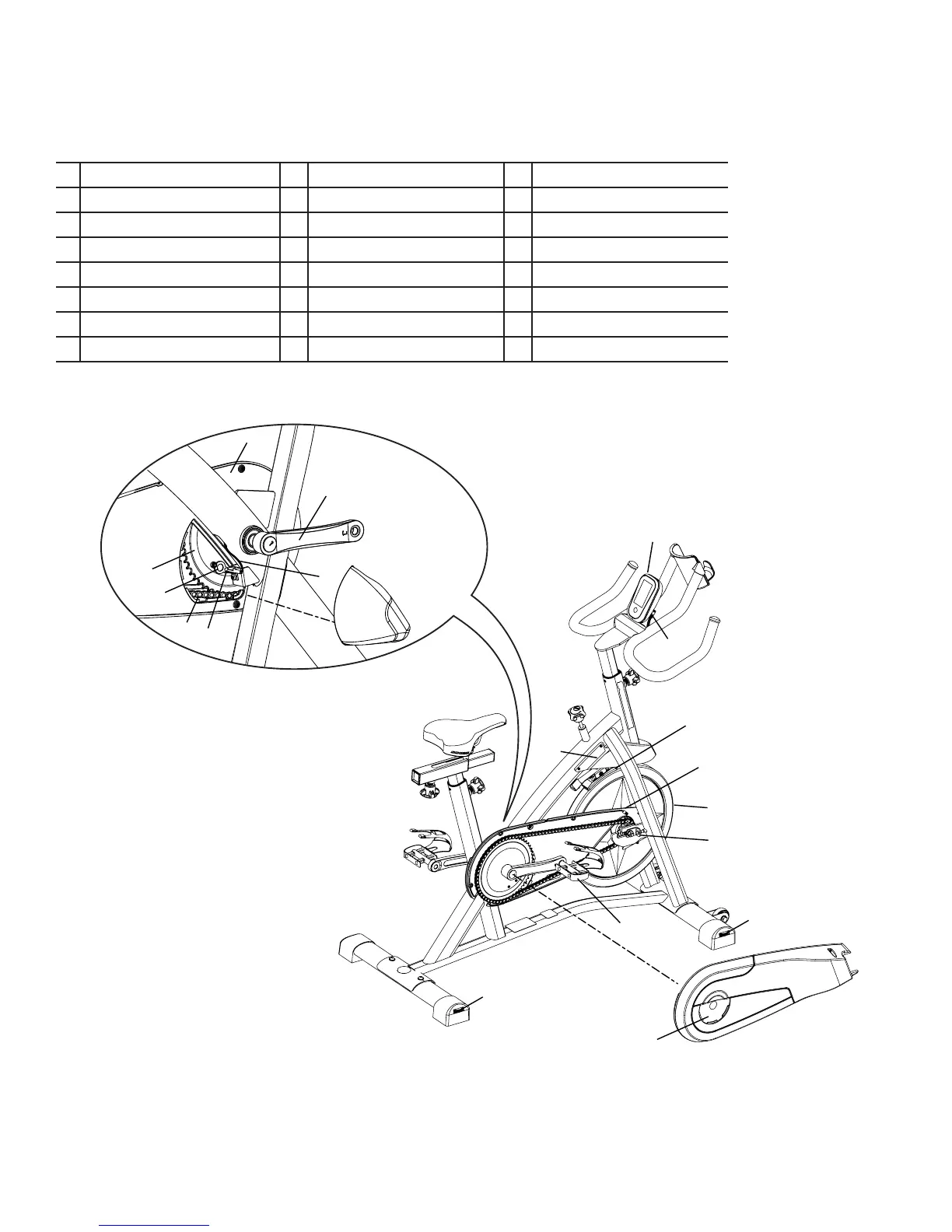

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
A Console I Crank Arms Q Chain
B Water Bottle Holder J Pedals R Speed Sensor Magnet
C Handlebars K Seat S RPM Sensor
D Brake/Resistance Knob L Seat Post T Sprocket Drive
E Brake Assembly M Adjustment Knobs U Data Cable
F Chain Guard N Chain Guard Door V Flywheel
G Chain Guard Center Plate O Levelers W Flywheel Retainer Clip
H Chain Guard Inside P Transport Wheels X Brake Cover
I
H
Q
R
S
T
U
A
B
C
U
M
D
E
V
H
W
P
O
M
F
G
J
O
Q
I
J
M
M
L
K
N
X
