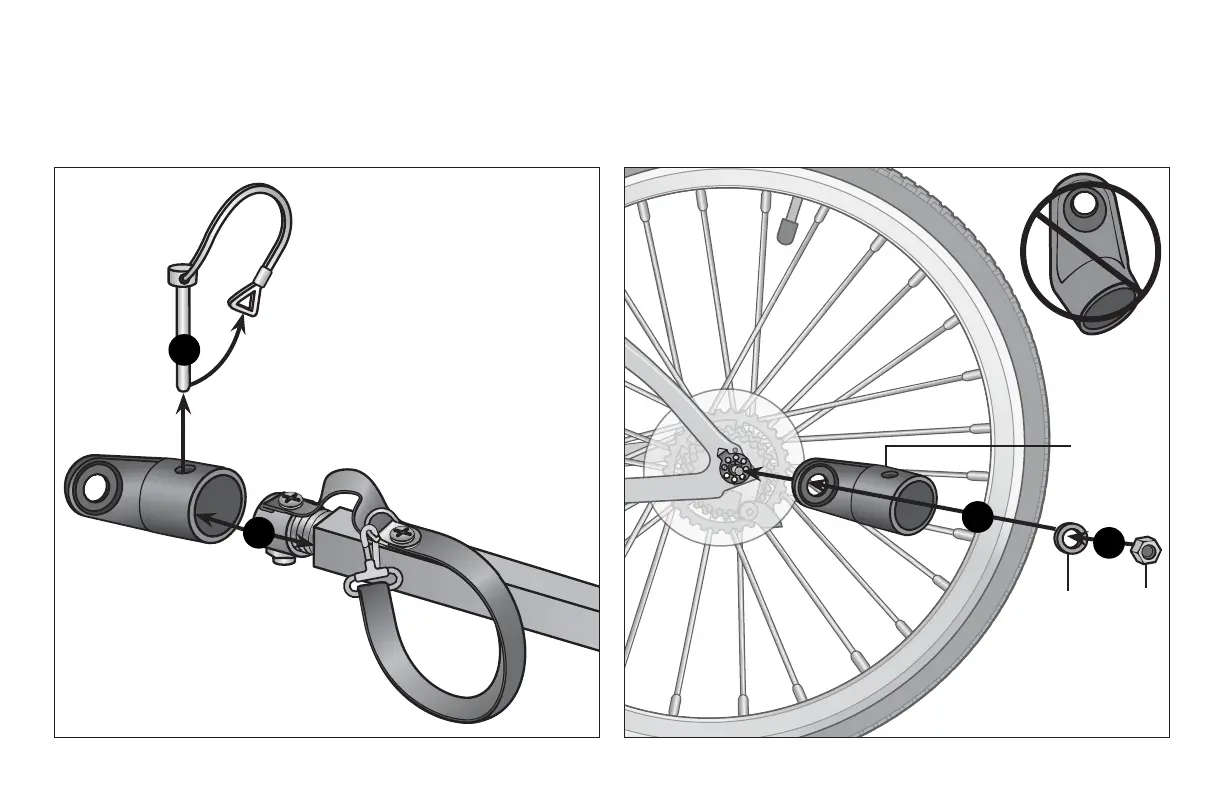

❹ Remove the safety loop from the end of the locking pin on the
end of the coupler. Figure 4.4
❺ Remove the locking pin from the coupler and slide the coupler
o the end of the tow bar.
Figure 4.4
4
4
❻ Insert the coupler plate onto the wheel axle. Place the coupler
in a horizontal posion so that it is in line with the tow bar.
❼ Place the hub nut and washer back onto the axle and ghten.
Figure 4.5
Figure 4.5
Coupler
Incorrect
coupler
placement
Washer Hub nut
6
7
13 Schwinn Rascal Plus Pet Trailer
