Schwinn Rascal Plus - Attach Crossbar Latch; Connect Crossbar to Frame

CONNECT THE CROSSBAR TO THE FRAME
❸ Rotate the crossbar unl it locks into the crossbar latch.
Be sure the cross bar is not caught by the fabric. Figure 3.6

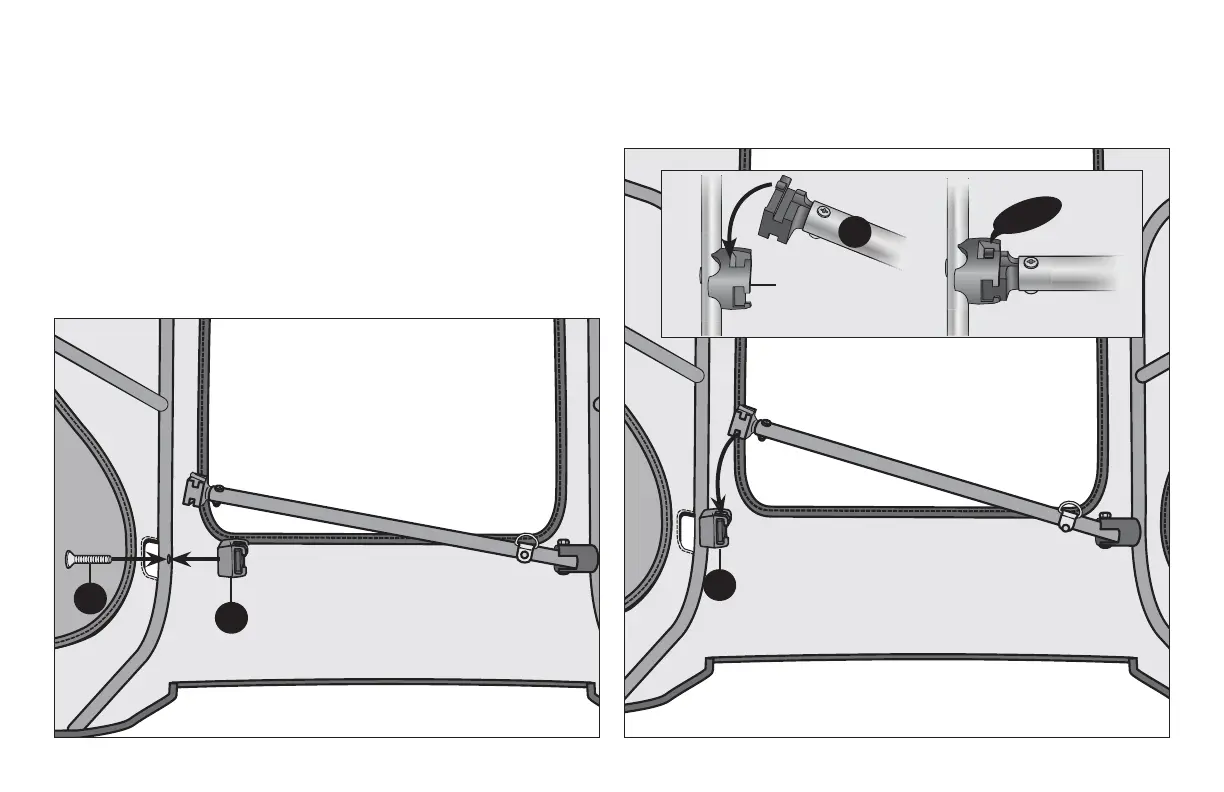

Figure 3.5
ATTACH THE CROSSBAR LATCH
TIP! To perform this step it may be easier to place the trailer on its
back side with the front side facing up.
❶ Working from the interior of the trailer, align the hole of the
crossbar latch with the hole in the frame (located in the rear
left corner of the trailer).
❷ Insert the bolt through the frame and into the latch.
Tighten the bolt using a 4 mm hex wrench. TIP! There will be
a cutout in the fabric wall where the bolt will be inserted.
Figure 3.5
Schwinn Rascal Plus Pet Trailer 6
Figure 3.6
L
ock
4
Crossbar latch
2
1
3
