Schwinn Rower - Page 11

11

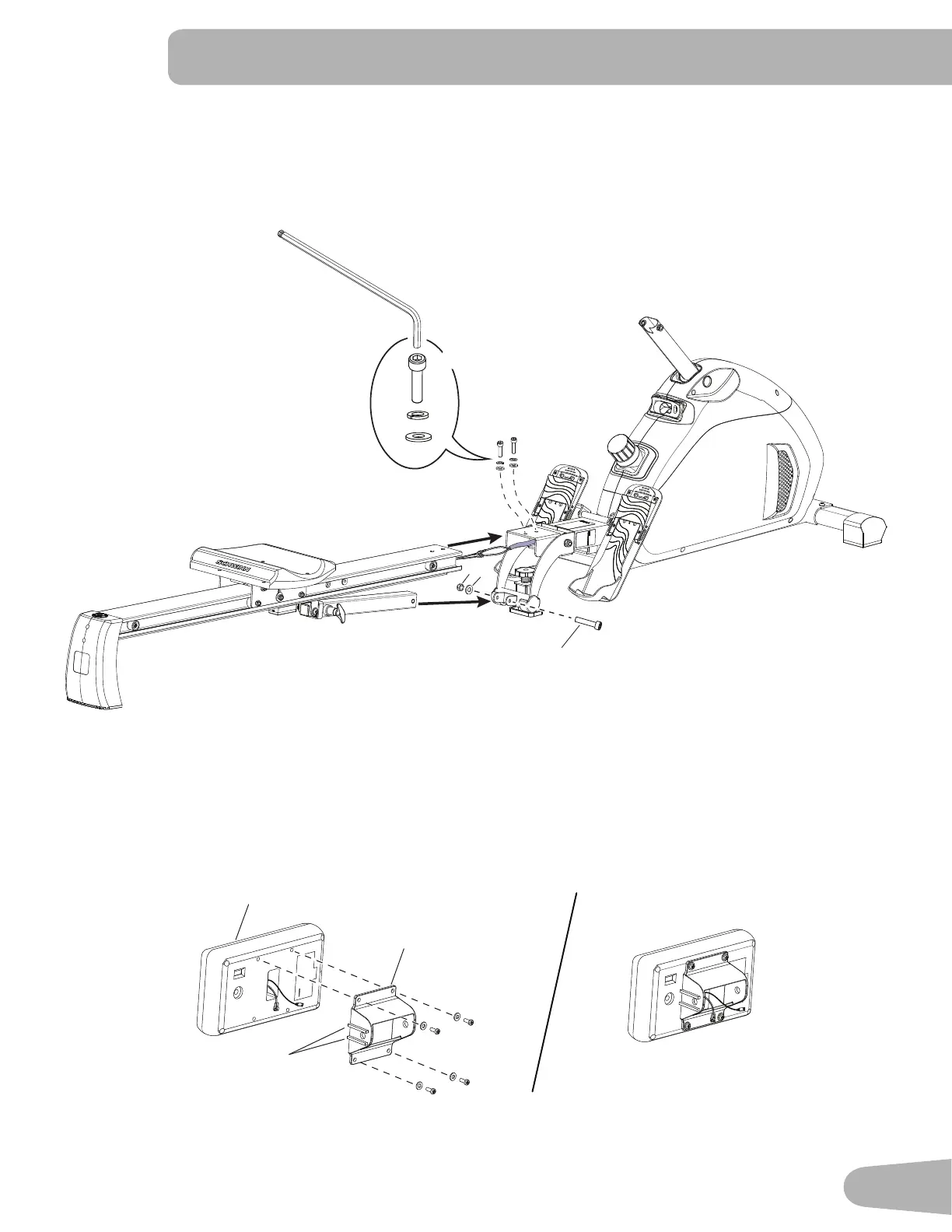

5. Attach Seat Rail Assembly to Frame Assembly
Note:Installthetopscrewsandwashersfirst,thenthelongscrew(A)throughthebracket.ItmaybeeasieriftheSeatRail
Locking Pin is pulled.
NOTICE: Do not crimp the cables.
6mm
X2
B
E
A
D
F
C
6. Attach Console Bracket to the Console
Note:Removethepre-installedhardware(*)fromthebackoftheConsole,thenroutethecablesthroughtheConsole
Bracket.Besurethe2ribs(7a)ontheConsoleBracketareontherightsidesothattheopeningpointsdownward.
NOTICE: Do not crimp the cables.
7a
7
6
