10| 3.0 Initial Setup

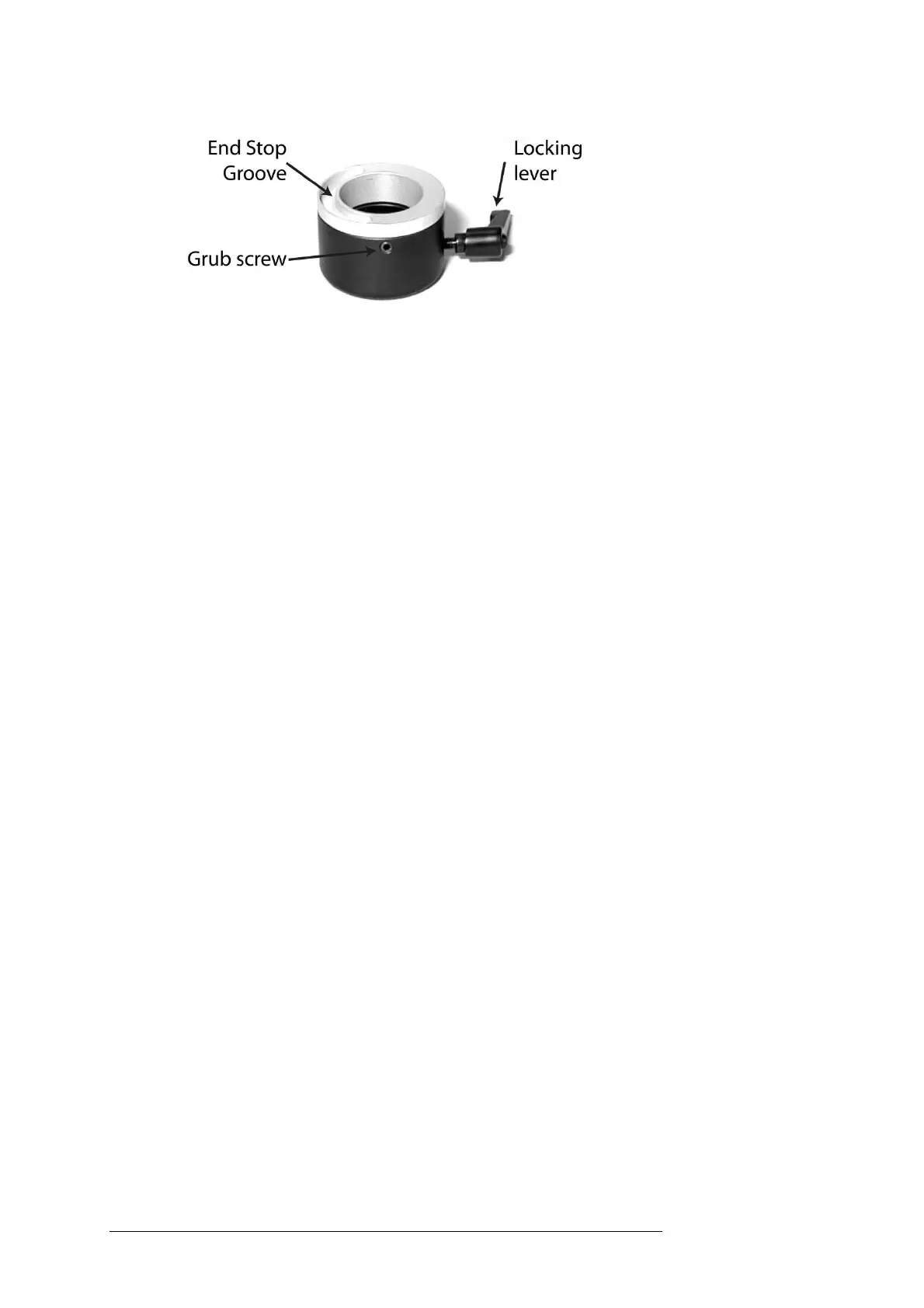

Figure C: Post and Platform locking collar
2
. Loosen the platform clamp and rotate it to your ideal 'home
position, keeping the screw on the underside of the platform
located in the end stop groove of the silver upper ring.
3. Keeping the platform stationary, rotate the silver collar until one
end of the groove is in contact with the end stop screw.
4. Retighten the grub screw on the silver collar to set its position.
Note: the end stops can be configured to enable rotation
in either clockwise and anti-clockwise directions. In step 3
of the above, locate the end stop at different ends of
groove to alternate between the two.
