2| 1.0 Product Introduction
1.2.2 Product Walkthrough

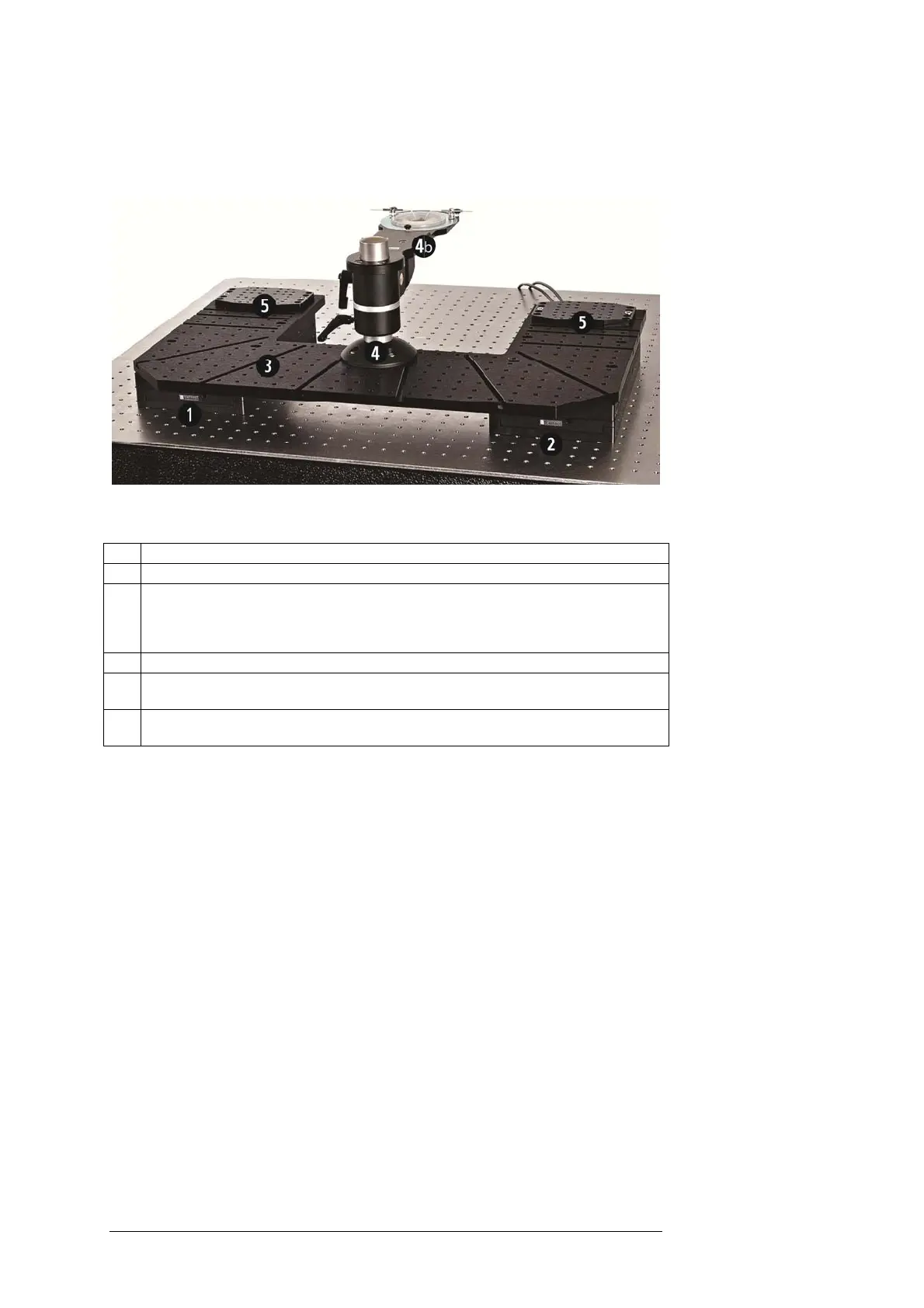

Figure A: Motorised Moveable Base Plate, with key components
indicated
1 Slave stage
2 Motorised stage (indicated by flying leads)
3 Top plate
Multiple versions available for compatibility with different upright microscope.
See section 7 for dimensions.
These may be supplied with either metric or imperial tapped holes.
4 Post and Platform Sample Chamber mount
4b Sample chamber platform.
In vivo platform also available.
5 Carriage mounting plates (three supplied)
Either metric or imperial tapped holes, to match the top plate supplied
