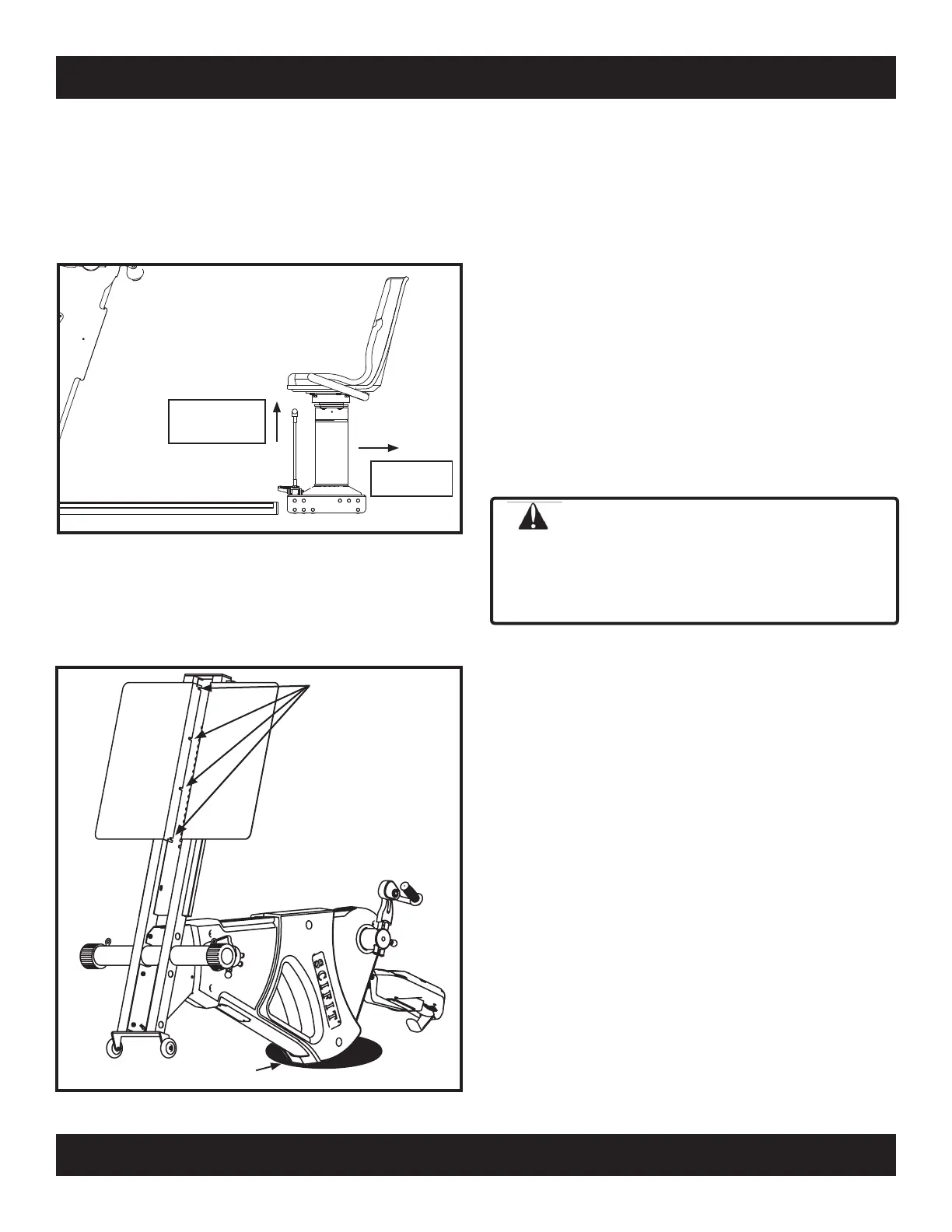

Optional Wheelchair Platform (#1180)
To install the optional wheelchair platform you must
first remove the seat assembly from the base. Pull up
on the yellow T-handle seat adjustment rod and slide
the seat assembly completely off the roller track.
(A) Loosen
Four (4) Bolts
(B) Slide Slots
Under Washers
(C) Tighten Bolts
Protective Pad
With the aid of an assistant, carefully raise the base
up, and lower the work console down until the console
is resting on the floor. To prevent damage to the
covers place a pad, piece of carpet or cardboard
between the case and floor.
(A) With a 1/2” socket, loosen the four back end bolts
that secure the stainless steel adjustment track to the
base frame just enough to slide the platform under
the lockwasher. NOTE: Do not remove the bolts.
(B) Slide the platform slots between the lockwasher
and the frame, with the flat surface of the platform
flush against the frame.
(C) tighten the four bolts, then repeat the process
for the other side.
After securing the platforms with the help of
another person, carefully lift and set the machine to
it’s normal position, then reinstall the seat assembly
the same way it was removed from the seat track.
Monocoque Frame is top heavy.Two people are
required to position frame in place. Failure to support
frame properly may result in injury to yourself and/or
others.
CAUTION
Pull T-handle
up and hold
Move seat off
of roller track
