ASSEMBLY
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT
5

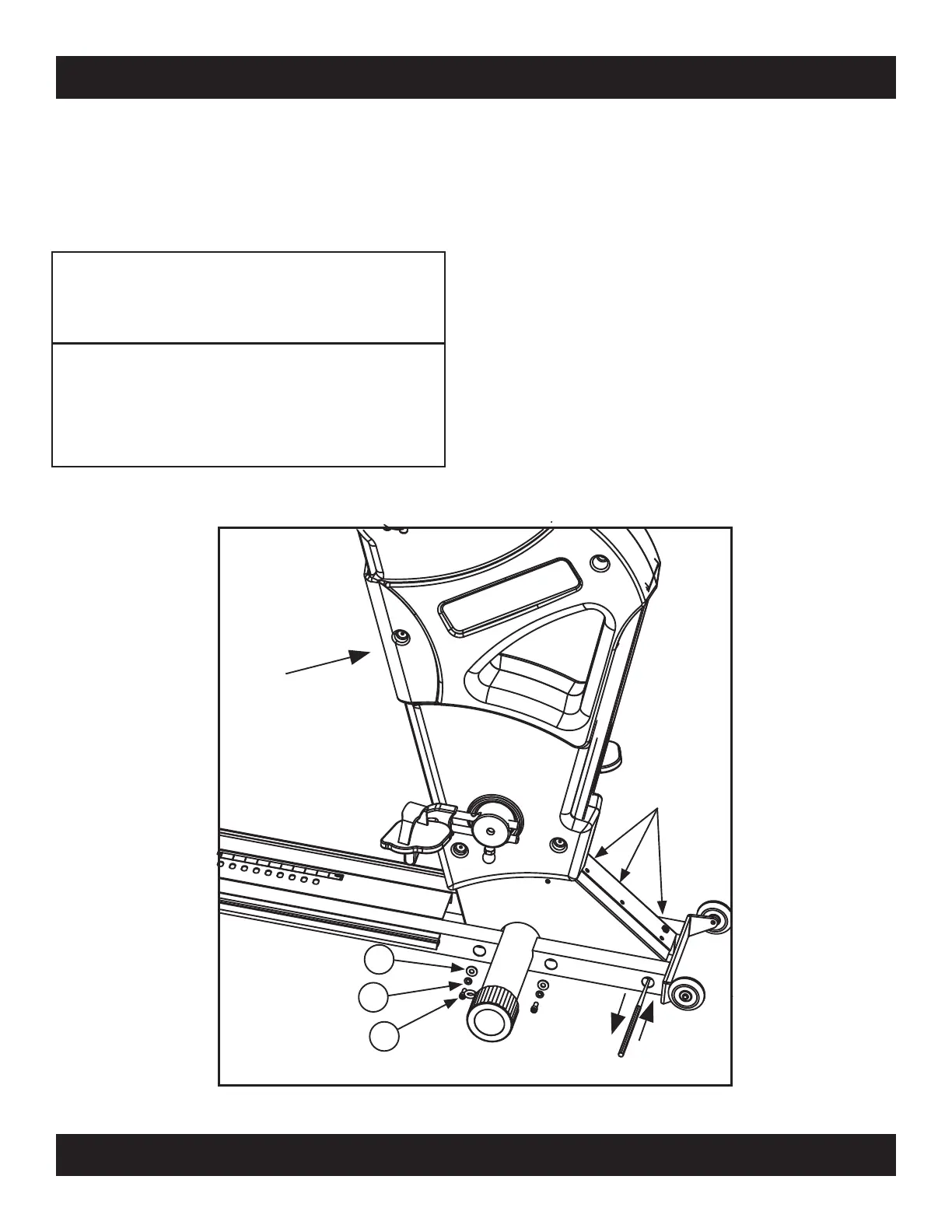

Assemble Monocoque Frame to Base Frame
With the aid of a second person, align bottom mounting
threaded nutserts of Monocoque Frame with the Base
Frame mounting holes.
Starting on the right side,
(A) Insert a long needle point center punch through the
front threaded mounting hole of the base frame.
(B) Push up on the frame until the nut-serts are aligned
with the mounting holes
(C) Slide (Qty.1) 3/8” split washer and (Qty.1) 3/8” flat
washer onto three 3/8” bolts, align and loosely thread
two of the bolts into remaining open mounting holes.
(D) Remove the center punch and loosely thread in the
third bolt.
(E) Repeat step A-D for the left side.
(F) Tighten all bolts to 48 ft/lbs or 576 in/lbs (65 nm).
Assembly
For equipment that is shipped overseas, some assembly is
required. Follow the steps below for assembly.
Required Tools:
Long Needle Point Center Punch
5/16” Allen Drive Socket
Ratchet
Torque wrench
Required Parts:
Item Qty. Description Part #
1 6 3/8” x 1” Socket HD Cap Bolt N/A
2 6 3/8” Split Lock Washer N/A
3 6 3/8” Flat Washer N/A
2
3
1
(D)
(A)
(C)
(B)
(E)
