For model J075, if the pulleys are not aligned, ad-
just the motor mounting plate (D) until the pulleys are
aligned, then tighten stand fasteners and jointer mount-
ing ange bolts.
Aligning the Pulleys
Hold a straightedge across the pulleys to check their
alignment (C). If the pulleys are aligned, tighten down
all stand fasteners (J075), and the jointer mounting
ange bolts (all models).
C
For model J100, if the pulleys are not aligned, adjust
the jointer’s position on the stand (E) until the pulleys
are aligned, then tighten the jointer mounting ange
bolts.
Adjusting Belt Tension
To test belt tension, push on the belt with one nger (F);
the belt should not move more than 1/2”.
To increase tension (all models), loosen the four motor
mounting bolts (G). Then, slide the motor downwards
and re-tighten the bolts (H). Check pulley alignment
after adjusting belt tension.
E
F
G
H

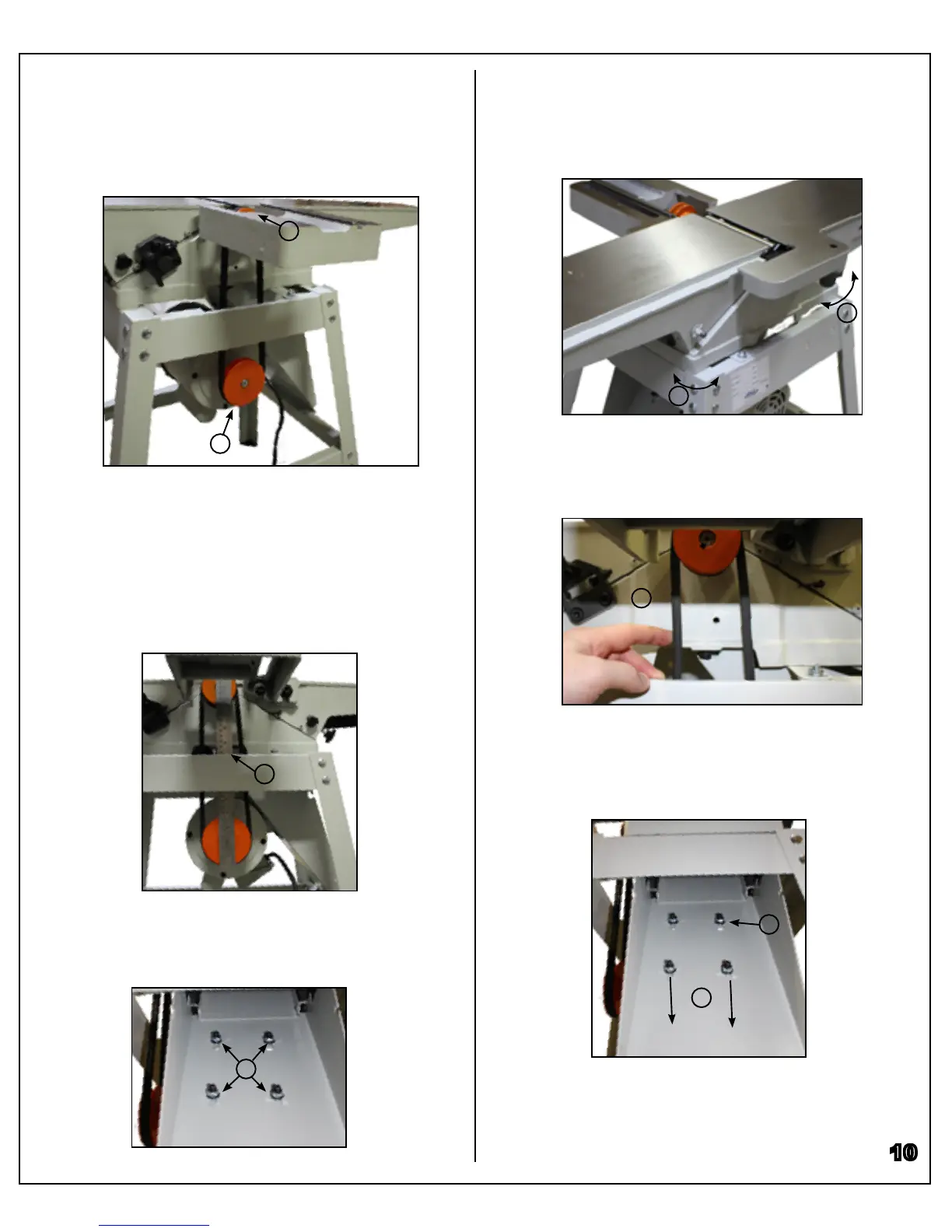

Installing the Belt
V Belt Installation
Install the V-belt in the groove on the upper pulley (A).
Slide the belt into the groove one side of the lower pul-
ley (B). Then, carefully rotate the belt by hand to allow
the belt to seat itself fully onto the lower pulley.
A
B
D
E
10
