Scosche FCJ2076 - Page 7

Read pages 2-4
for kit assembly.
1983-84 Chrysler E Class
Read pages 2-4
1984-88 Chrysler Le Baron
for kit assembly.
1984-87 Chrysler New Yorker
1983-88 Dodge 600 ES 1985-89 Dodge Aries
1983-88 Dodge 600 ES 1981-89 Plymouth Reliant
RADIO REMOVAL:
1. Remove nine securing screws from the top and bottom of the radio trim panel. Remove
the panel by pulling it down and out.
2. Unhook the wiring harness.
3. Remove the two Chrysler anti-theft bolts retaining the radio (use Snap-On bit TTW 12 for
1/4'' drive) and remove the radio. Disconnect power, ground cable, antenna and speaker wires.

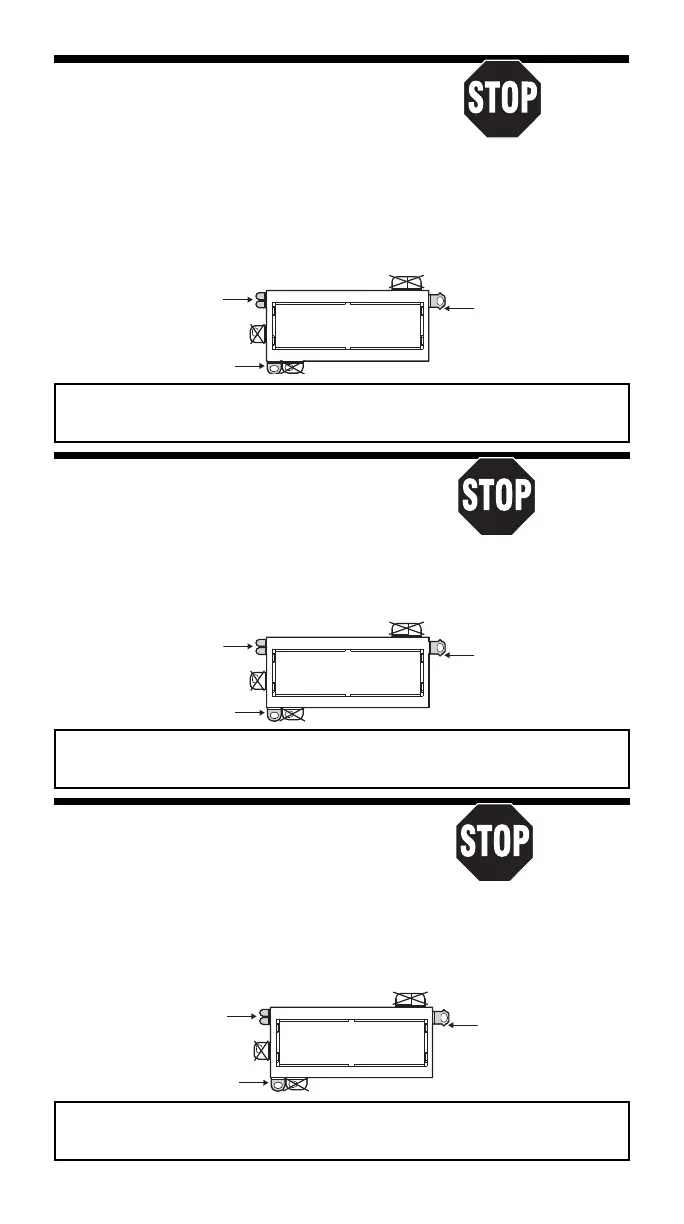

#2190 PANEL
USE THESE SUPPORT
TABS AS REQUIRED
Usar tantas de estas
pestañas como sea
necesario
USE THIS BRACKET
Usar este braquete
REMOVE ALIGNMENT
PIN - BOTTOM
Sacar la clavija de
alineamiento - Inferior
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
1990-93 Chrysler Fifth Avenue/Imperial
Read pages 2-4
1988-93 Chrysler New Yorker
for kit assembly.
1988-93 Dodge Dynasty
RADIO REMOVAL:
1. Remove nine securing screws from the top and bottom of the radio trim panel. Remove
the panel by pulling it down and out.
2. Unhook the wiring harness.
3. Remove the two Chrysler anti-theft bolts retaining the radio (use Snap-On bit TTW 12 for
1/4'' drive) and remove the radio. Disconnect power, ground cable, antenna and speaker wires.
USE THESE SUPPORT
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
PIN - BOTTOM
Usar tantas de estas
Sacar la clavija de
pestañas como sea
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD.FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
1979-89 Chrysler Imperial
Read pages 2-4
1979-81 Chrysler Newport
for kit assembly.
1979-83 Chrysler New Yorker
1979-81 Dodge St. Regis
RADIO REMOVAL:
1. Remove four screws securing the radio dash panel: two above the radio
and two above the heater controls.
2. Remove radio dash panel.
3. Remove two screws securing the radio to the dash. Pull the radio out.
4. Disconnect power, antenna, and all speaker and electrical connections.
USE THESE SUPPORT
TABS AS REQUIRED
Usar tantas de estas
pestañas como sea
necesario
USE THIS BRACKET
Usar este braquete
#2190 PANEL
REMOVE ALIGNMENT
PIN - BOTTOM
Sacar la clavija de
alineamiento - Inferior
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
7
