Scosche FCJ2076 - Page 8

1984-86 Chrysler Laser
Read pages 2-4
1984-89 Dodge Daytona
for kit assembly.
RADIO REMOVAL:
1. Remove one screw from each side of the ashtray.
2. Pull off the trim panel.
3. Remove two screws securing the radio to the dash. Pull the radio out.
4. Disconnect the power, antenna, and all speaker and electrical connections.
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete

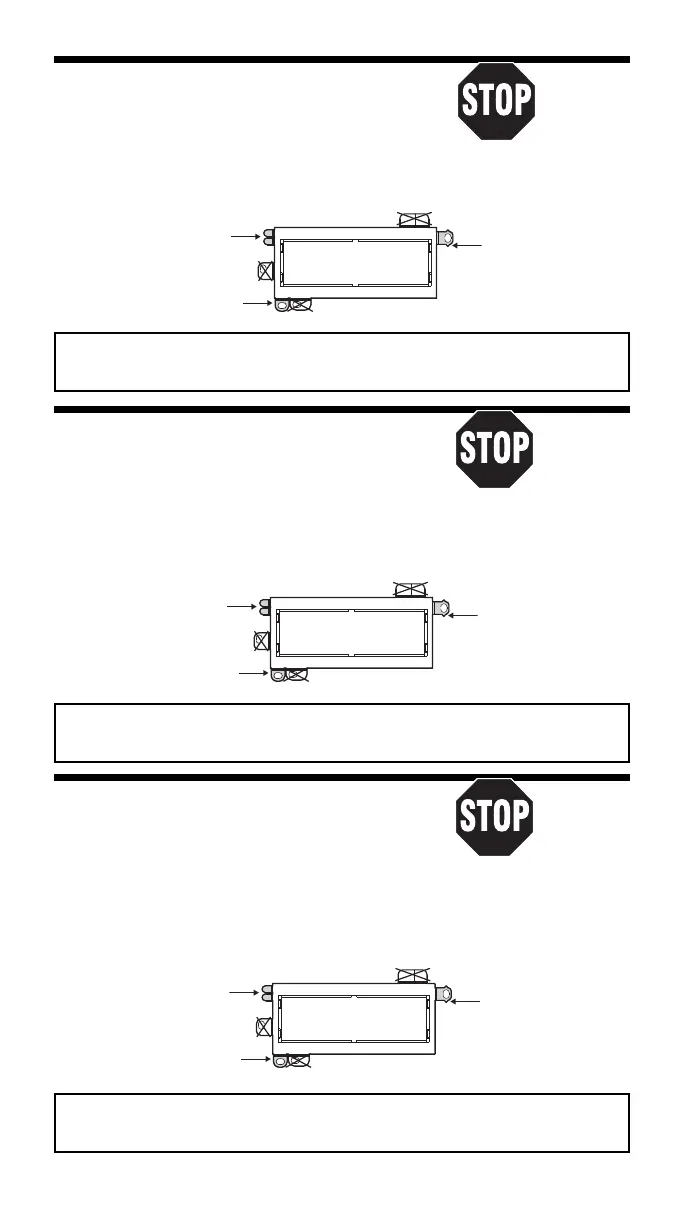

USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
1. Remove four screws from the top of the radio panel trim
and four from the bottom of the panel trim. Remove the panel.
2. Remove two bolts retaining the radio, and remove the radio. Disconnect the power, ground
cable, antenna and speaker wires.
#2190 PANEL
USE THESE SUPPORT
TABS AS REQUIRED
Usar tantas de estas
pestañas como sea
necesario
USE THIS BRACKET
Usar este braquete
REMOVE ALIGNMENT
PIN - BOTTOM
Sacar la clavija de
alineamiento - Inferior
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
1982-83 Chrysler Le Baron
Read pages 2-4
for kit assembly.
Read pages 2-4
for kit assembly.
Read pages 2-4
for kit assembly.
Read pages 2-4
1981-84 Dodge Aries
for kit assembly.
1982-83 Dodge 400
RADIO REMOVAL:
1977-81 Chrysler Le Baron
Read pages 2-4
for kit assembly.
1979-89 Chrysler Fifth Avenue
1977-89 Dodge Diplomat
1978-89 Plymouth Gran Fury
RADIO REMOVAL:
1. Remove four screws from the top edge of the dash panel and four screws from the bottom
edge. Remove the panel.
2. Remove two screws securing the radio to the dash and pull out.
3. Disconnect power, antenna, and all speaker, and electrical connections.
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
8
