Specifications of RF33A-1WA:

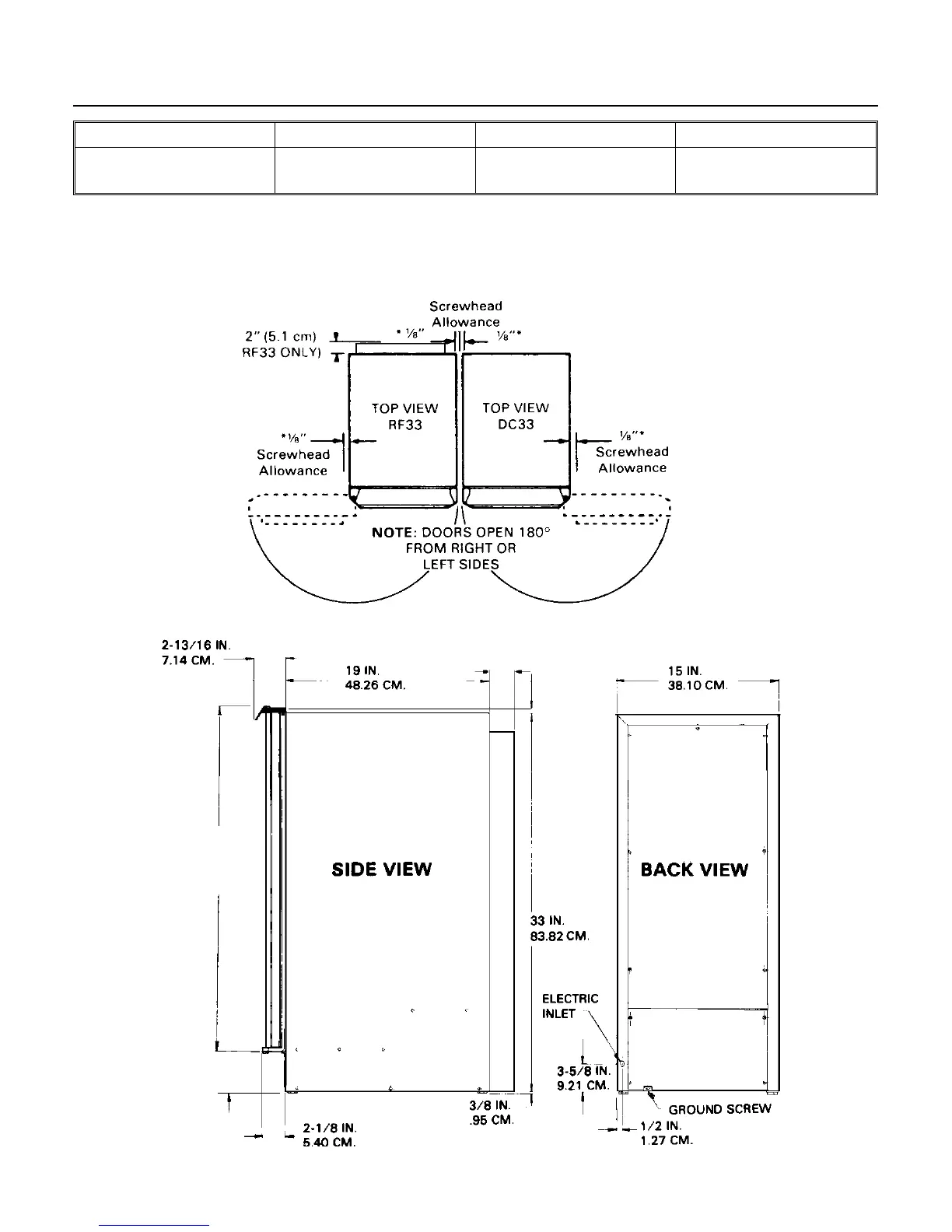

Cabinet dimensions are critical to a built in
installation. The diagrams illustrated below show
the details of the cabinet construction.
Note: Right and Left
Placement of Machines Will
Not Affect Performance.
1/2"
1.3 cm
2"
5.1 cm
29 7/8"
74.0 cm
4"(10.2 cm)
to bottom of
legs
Capacity Insulation Compressor Condenser Type
3 + cubic feet 1" foamed in place
polyurethane
1
⁄
16
H.P.
Forced Draft
RF33
November 1992
Page 2
