Scotsman DC33 - Reversing Door Swing

Reversing Door Swing:
The RF33 was shipped with the door hinged at the
left. The door and hinges are designed for placing
the hinges on either the right or the left side of the
cabinet. Moving the hinges to the right allows the
door to pivot from the right side.
Note: There is a part, packed with the machine,
that is required for this procedure.
1. Open the door and remove the three screws
holding the lower hinge to the cabinet.
2. With the door open enough to see both screws
at the top door hinge, remove the two screws. The
door is now free of the cabinet.
3. Remove the single screw and the hinge filler
plate from the top of the door.
4. Install the other filler plate (shipped inside
refrigerator compartment) onto the top corner of
the door where the hinge was.
5. Remove the three plastic plugs from the top
front corner where the hinge will mount.
6. Remove the three plastic plugs from the lower
front corner where that hinge will mount.
7. Remove the three screws holding the top hinge
to the cabinet. Remove that hinge from the top
and, flipping it upside down, install it onto the
bottom of the door, on the opposite side using the
original screws.
8. Remove the hinge assembly from the bottom of
the door, and flip it upside down; secure it to the
cabinet at the opposite side top position with the
original screws.
9. Hold the door up to the cabinet. Secure the door
to the top hinge with the original screws.
10. Secure the bottom hinge to the cabinet with
the original screws.
11. Place the plastic plugs removed earlier into the
empty holes.
12. Check operation of the door by opening and
closing it.
Door Handle
Filler Plate
Hinge
Hinge
Magnetic
Gasket
Door

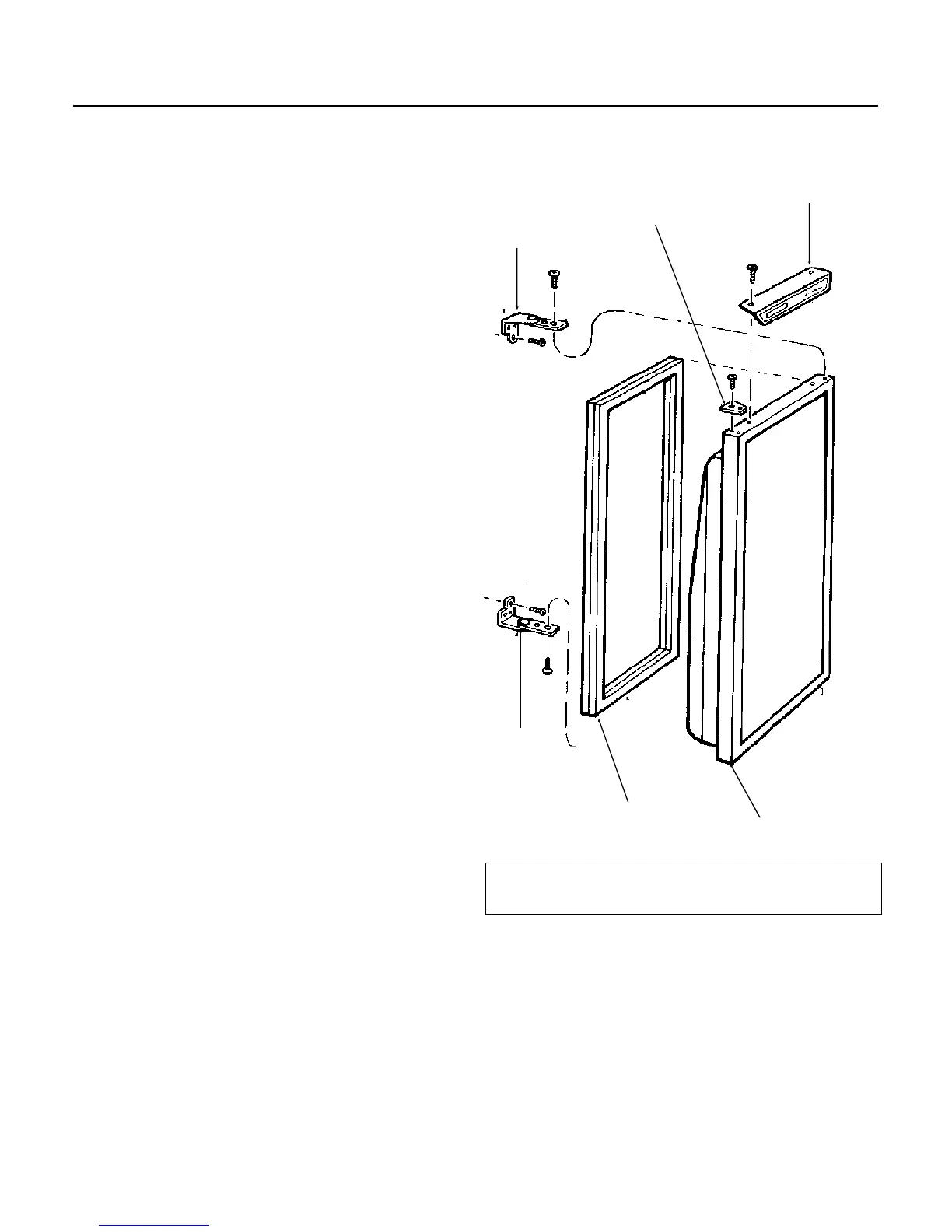

Reverse Hinges From Top to Bottom and Left to Right To
Reverse Door Swing
RF33
November 1992
Page 5
