EH222 E and Condensing Unit
Remote Low Side Cuber User Manual
June 2018
Page 30

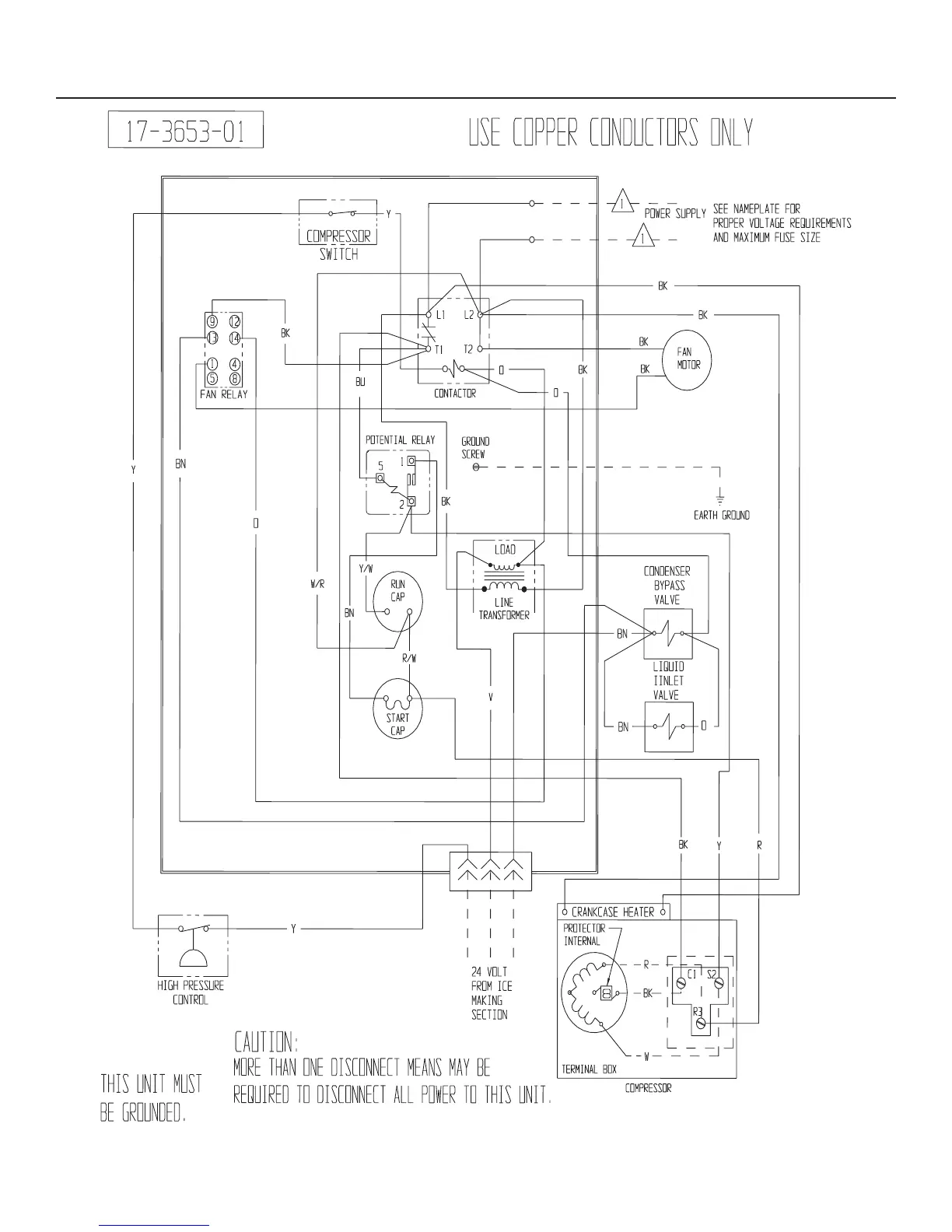

ECC Single Phase Schematic Diagram
