Scotsman Prodigy Plus E Series - Cabinet Drawings, Condensing Unit

EH222 E and Condensing Unit
Remote Low Side Cuber User Manual
June 2017
Page 6

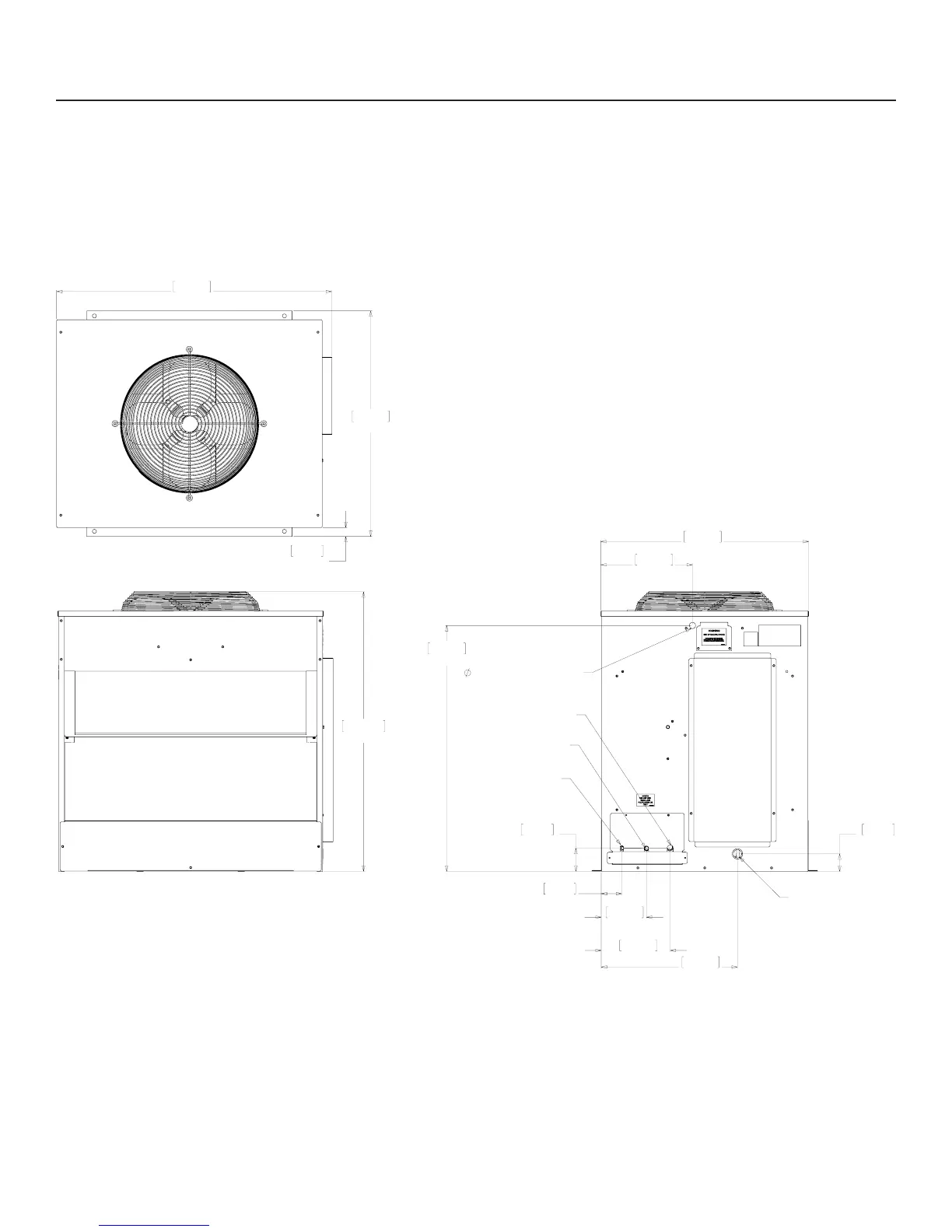

Cabinet Drawings, Condensing Unit
992.81
39.09
814.22
32.06
32.05
1.26
TYP.
TOP VIEW
1009.65
39.75
FRONT VIEW
83.67
3.29
74.12
2.92
163.02
6.42
248.87
9.80
491.69
19.36
63.50
2.50
887.73
34.95
750.06
29.53
330.86
13.03
SIDE VIEW
LINE SET AND ELECTRICAL ATTACHMENT SIDE
1/2" COOL VAPOR LINE
3/8" LIQUID LINE
3/4" SUCTION LINE
.88" ELECTRICAL INLET
INTERFACE HARNESS
ACCESS HOLE
