GENIUS
BIKE OWNERS MANUAL
BB (carbon frames): PF92 (ID41mm), no Spacer BB (alloy frames): PF92 (ID41mm), no Spacer
26 scott-sports.com 27
GENIUSENGLISH
BIKE OWNERS MANUAL

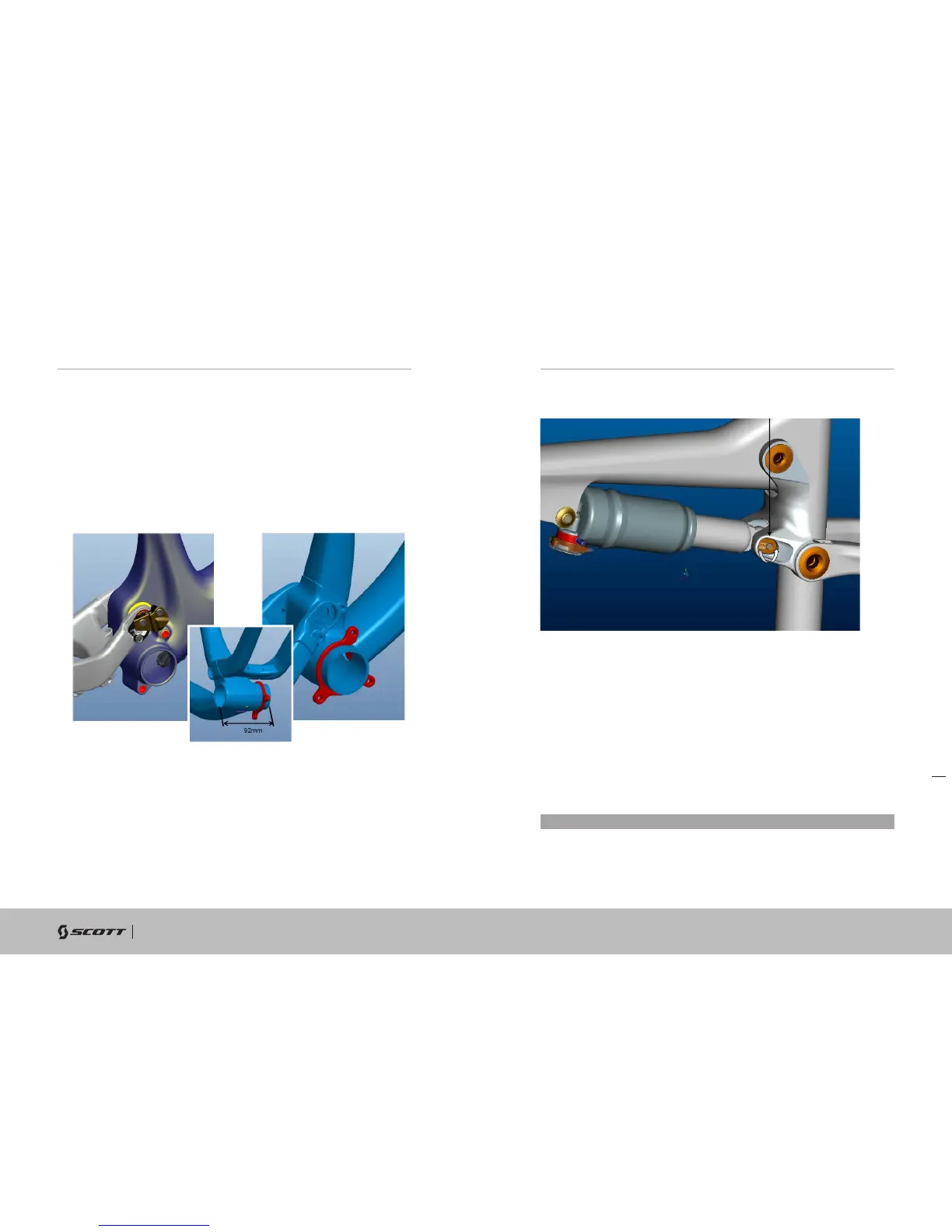

BOTTOM BRACKET (BB) ON GENIUS
All frames of Genius (carbon and alloy) have a BB shell for BB92PF standard.
This matches to several bearing and crankset models of Shimano, SRAM, FSA and
others.
Please note that you do not need anymore a spacer on the right side of the bearing
cup between frame housing and bearing cup.
ADJUSTABLE BB HEIGHT
On Genius bikes equipped with the Nude 2 or the M3 shock you can adjust the BB
height above ground in 2 positions by flipping a geometry chip located on the linkage
bar shock mount.
1. low BB for lower center of gravity over ground
2. high BB for bigger clearance between pedals/crankset and obstacles on the
ground
Genius 700:
- head angle: 67.9° (low) – 68.4° (high)
- BB height: 345mm (low) – 351mm (high)
Genius 900:
- head angle: 69° (low) – 69.5° (high)
- BB height: 335mm (low) – 340mm (high)
Important:
It is not possible to use this geometry chip with other shock models than the Nude 2
or M3.
The shock might collide with parts of the frame or linkage bar.
