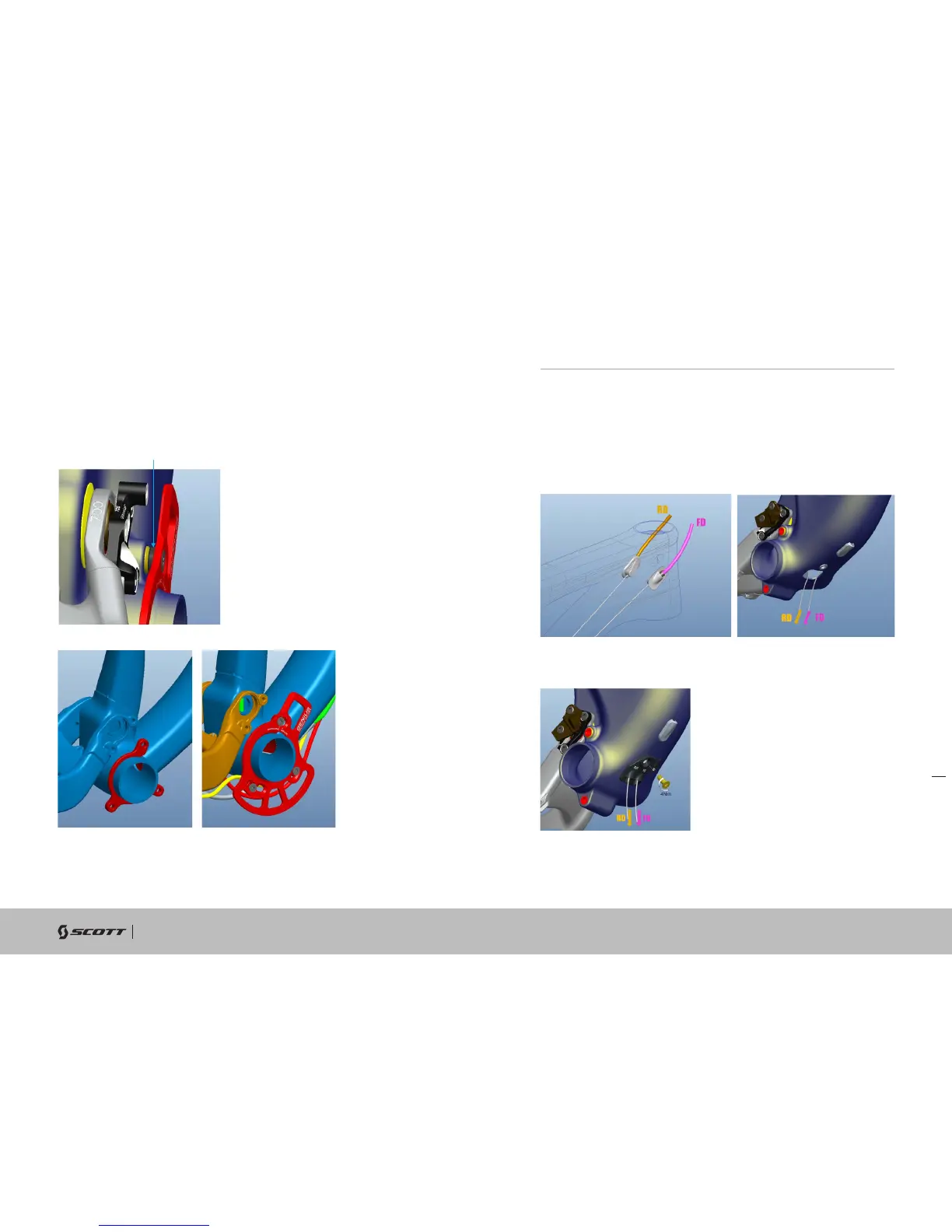

Please note that you need to assemble the chainblocker exactly the way as shown
below and use all parts of the set.
Please also respect the different assembly positions for SRAM and Shimano front
derailleurs
For 2x10 drivetrains you need to use 2x2.5mm washers, for 3x10 drive trains 1x2.5mm
washers between adaptor/frame and the chainblocker as shown above.
Details for the assembly on the alloy frames of Genius:
You can assemble the chainblocker directly on the integrated ISCG05 mount on the
BB shell.
Please respect the different assembly positions for SRAM and Shimano front
derailleurs.
GENIUS CABLE ROUTING
The direct and straight cable system on all our full suspension models offers perfect
shifting performance combined with lightweight and high resistance against water and
dirt.
Carbon Front frames:
The carbon frames of Genius have an internal shifting cable routing with cable stops on
the front end of the downtube as shown in the drawing below.
Please note that the inner cables need to cross each other 1 time on the inside of the
downtube before you pull them out through the cable slot on the lower downside of
the downtube.
Push the cables through the cable guide as shown below and fix the cable guide on
the downtube with a 3mm allen key and a tightening torque of max. 4Nm/35in/lbf.
