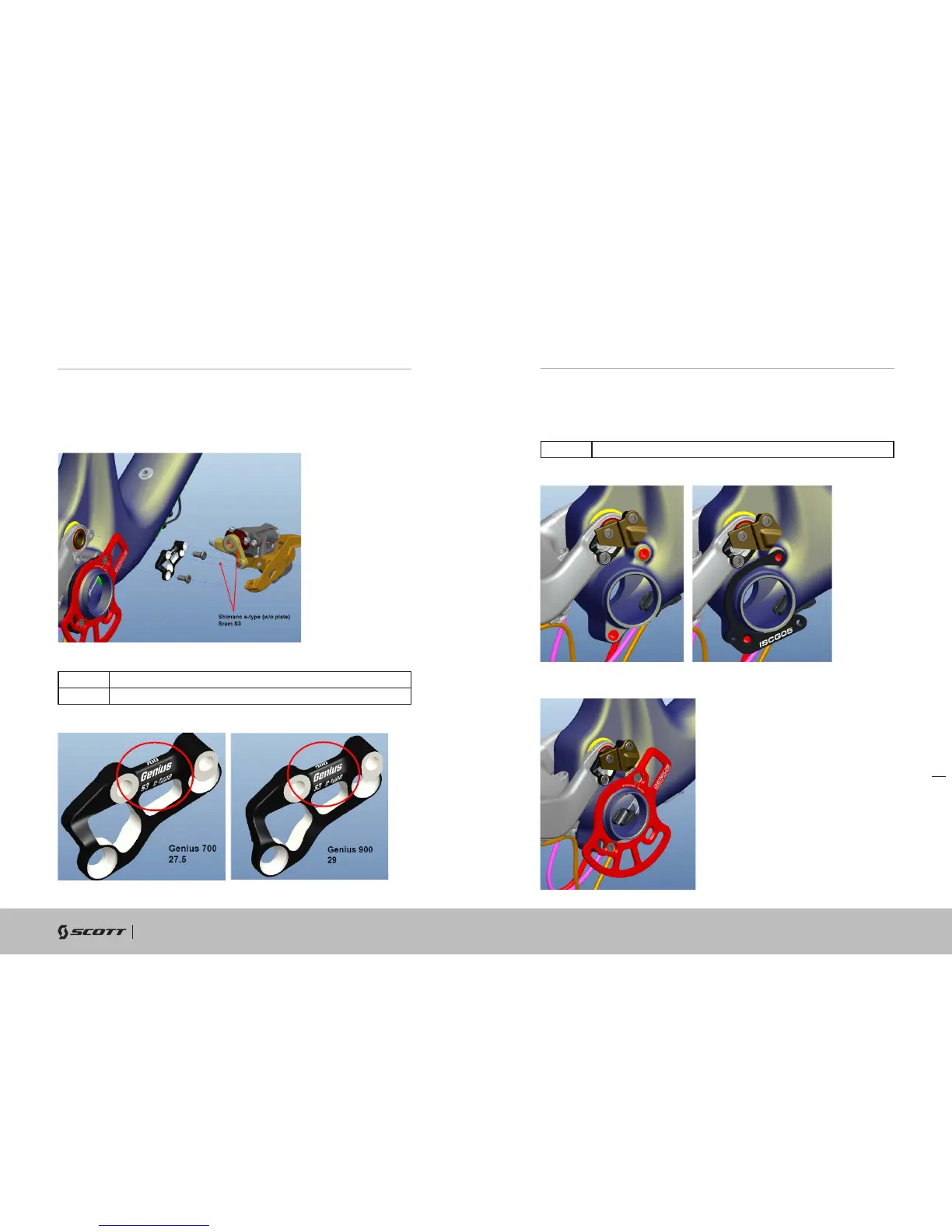

FRONT DERAILLEUR (FD) MOUNTING DETAILS
On all Genius frames you will find a Shimano E-type front derailleur but fixed directly
on the swingarm without the plate that is fixed normally between the bottom bracket
bearing cup and the bottom bracket housing of the front triangle or a SRAM Direct
Mount Type S3 FD.
Please note that you always need to use the adapter plate attached to the bike or
frame set between chainstay and front derailleur.
This adapter can be ordered at the Scott distribution with parts number:
Please note that the 2 sizes of the adapters are not interchangeable!
CHAINGUIDE
The Carbon as well as the alloy frames of Genius can be fitted with ISCG chainguide
systems.
A set of all spare parts for this action can be ordered via the Scott distribution with:
Details for the assembly on the carbon frames of Genius:
The adaptor must be used in order to assemble the chainblocker on the ISCG05
chainguide system.
