32 scott-sports.com 33
GENIUS
BIKE OWNERS MANUAL
USE PLASTIC GUIDE TO FIX THE BRAKE CABLE
229723 BB cabel guide Genius (f. carbon frame)
32 scott-sports.com 33
GENIUSENGLISH
BIKE OWNERS MANUAL

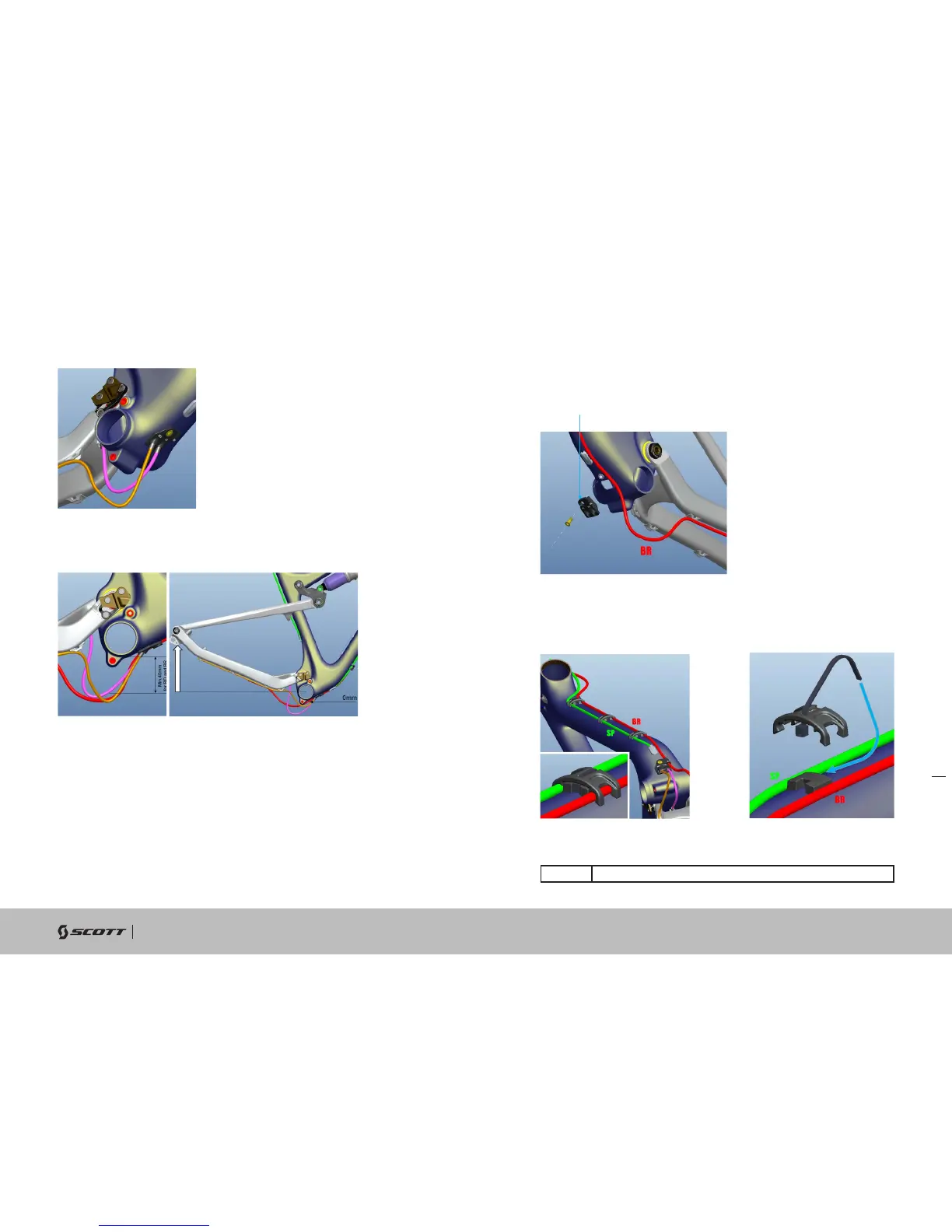

Push the outer cable housings on the cables into the cable guide but make sure to
respect the needed length as shown in the next drawing!
Please make sure to respect the 40mm distance between the cables and the BB
(bottom bracket) housing to avoid “ghost-shifting” and/or damages on the shift cables
and brake hose.
For the rear brake please assemble the cable as shown in the following drawings:
Please keep in mind to have a minimum distance of 40mm between the brake hose
and the BB housing as abovementioned!
Please fix the brake hose and the
remote seatpost cable housing (if
applicable) on the frame on the cable
mounts with the mount clips by
following the routing info as shown
below:
Please secure the clamps with a cable
zipper as shown in the drawing below:
The cable guide can be ordered via the Scott distribution with parts number:
