34 scott-sports.com 35
GENIUS
BIKE OWNERS MANUAL
229724 Cabel clamping set Genius alloy 2013 one size
34 scott-sports.com 35
GENIUSENGLISH
BIKE OWNERS MANUAL

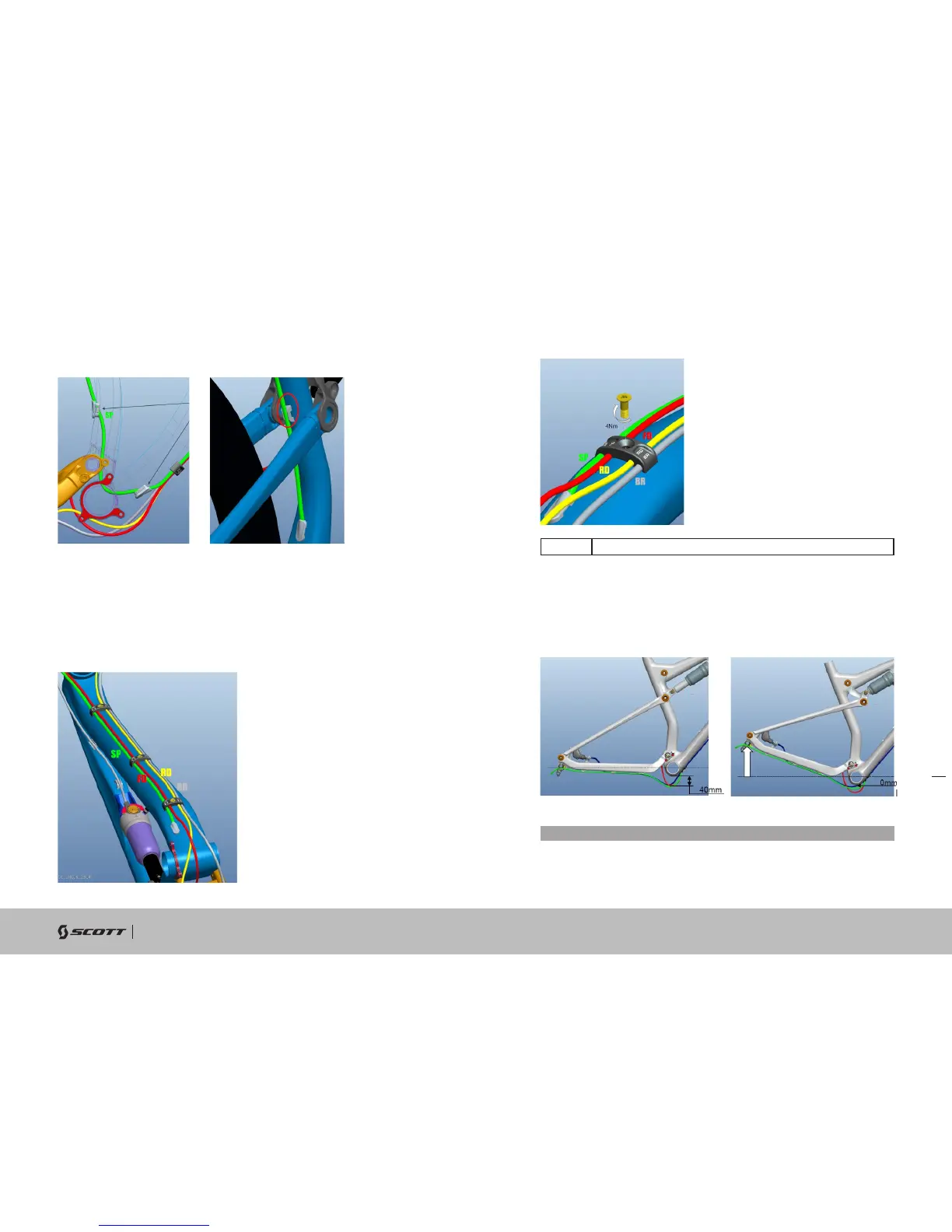

In addition to the derailleur cables and the brake hose you also will see a possibility for
an integrated cable routing of the seatpost remote on the carbon version of Genius.
In order to seal the housing ports on the frame you should use the plugs attached to
the bike.
Alloy front frames:
Please fix the derailleur cable housings, the brake hose and the remote seatpost cable
housing (if applicable) on the frame on the cable mounts with the mount clips by
following the routing info as shown below:
Please tighten the mount bolt with a max. of 4Nm.
Please make sure to respect the 40mm distance between the cables and the BB
(bottom bracket) housing to avoid “ghost-shifting” and/or damages on the shift cables
and brake hose.
For the rear brake please assemble the cable as shown in the following drawings:
Important:
Please make sure to respect the 40mm distance between the brake hose and the BB
(bottom bracket).
