GENIUS LT
30 2011 SCOTT BIKE OWNERS MANUAL
GENIUS LT
31
ENGLISH

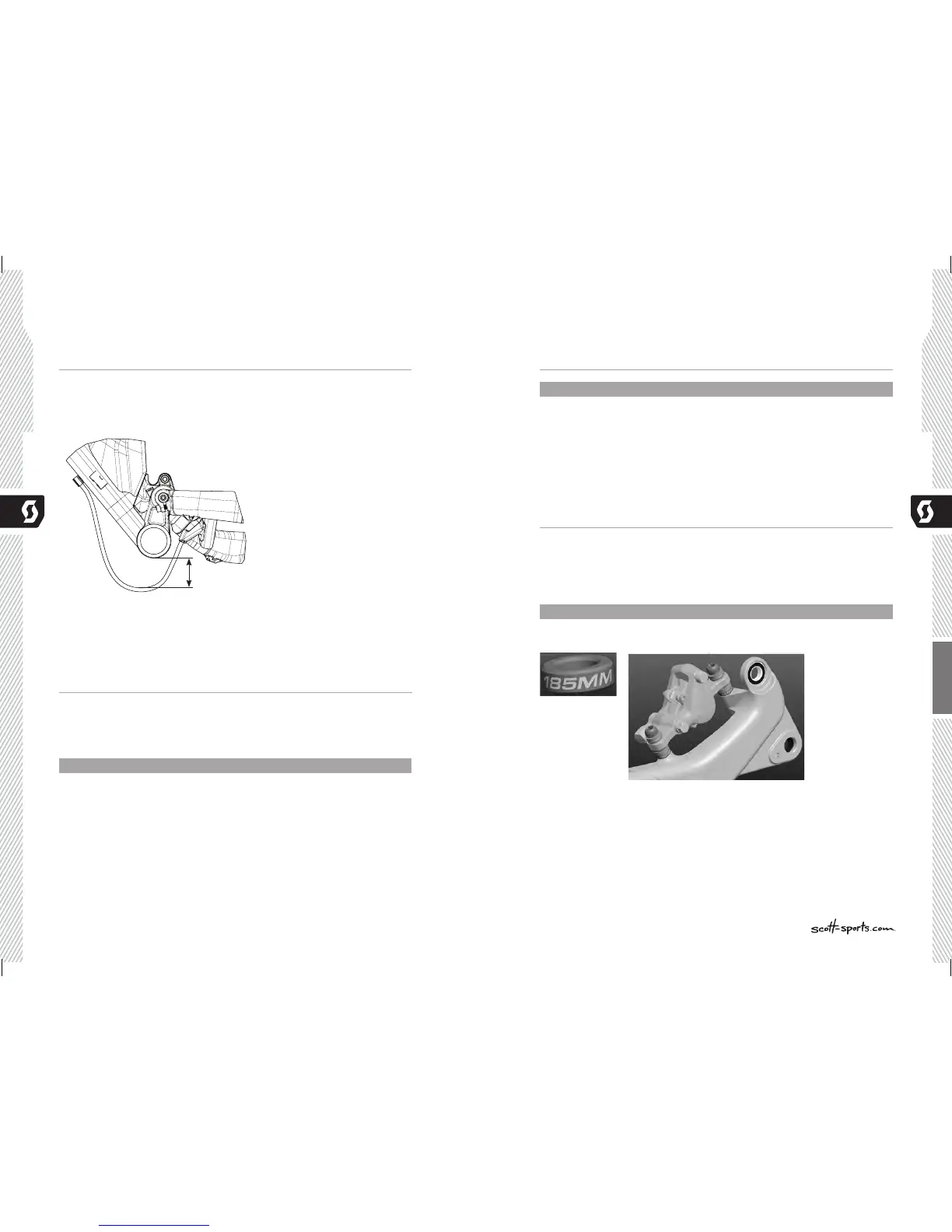

CABLE HOUSING LENGTH
SEATCLAMP
In order to avoid damages on the frame/derailleur and/or “ghost-shifting” which could
result in dangerous riding please note that under the BB housing the distance between
the cable housing and the BB shell should be minimum 45mm.
Please make sure only to use the original seatclamp of Scott Genius LT with a diameter
of 34.9mm.
This part can also be ordered as a spare part via the Scott distribution with
219569 Seatclamp 34.9mm QR Genius LT 2011
45 MM
ADJUSTMENT OF SEATPOST-HEIGHT
REAR DISC BRAKE MOUNT
Important:
The seatpost has to be inserted into the seattube at a minimum of 100mm.
Never use another seatpost diameter than 31.6mm or try to use a shim/reducer
between seatpost and frame.
Genius LT can be used with 3 different disc rotor sizes on the rear brake.
The rear disc brake on Genius LT is Postmount (PM) Standard on the left seatstay and
all complete bikes are delivered with 185mm rotors, so between the calliper and the PM
mount on the seatstay are 2 washers with a laser logo of “185mm”.
219568 Brake Mount Adapt.Spacers 4mm f/185mm
J_genius_lt_en.indd 30-31 06.08.10 16:30
