ENGLISH
BASIC SET-UP OF THE TWINLOC
REMOTE CONTROL OF EQUALIZER 3 SHOCK
To ensure perfect function of the Equalizer 3 shock it is very important to follow the
steps shown below exactly.
Please note that the following explanation shows a complete exchange/replacement
of the cable, so in case you just want to double check e.g. the cable tension please see
only steps 1, 7, 8 and 9.
Important:
For all following actions the TWINLOC lever needs to be in “ALL TRAVEL-MODE”
position!

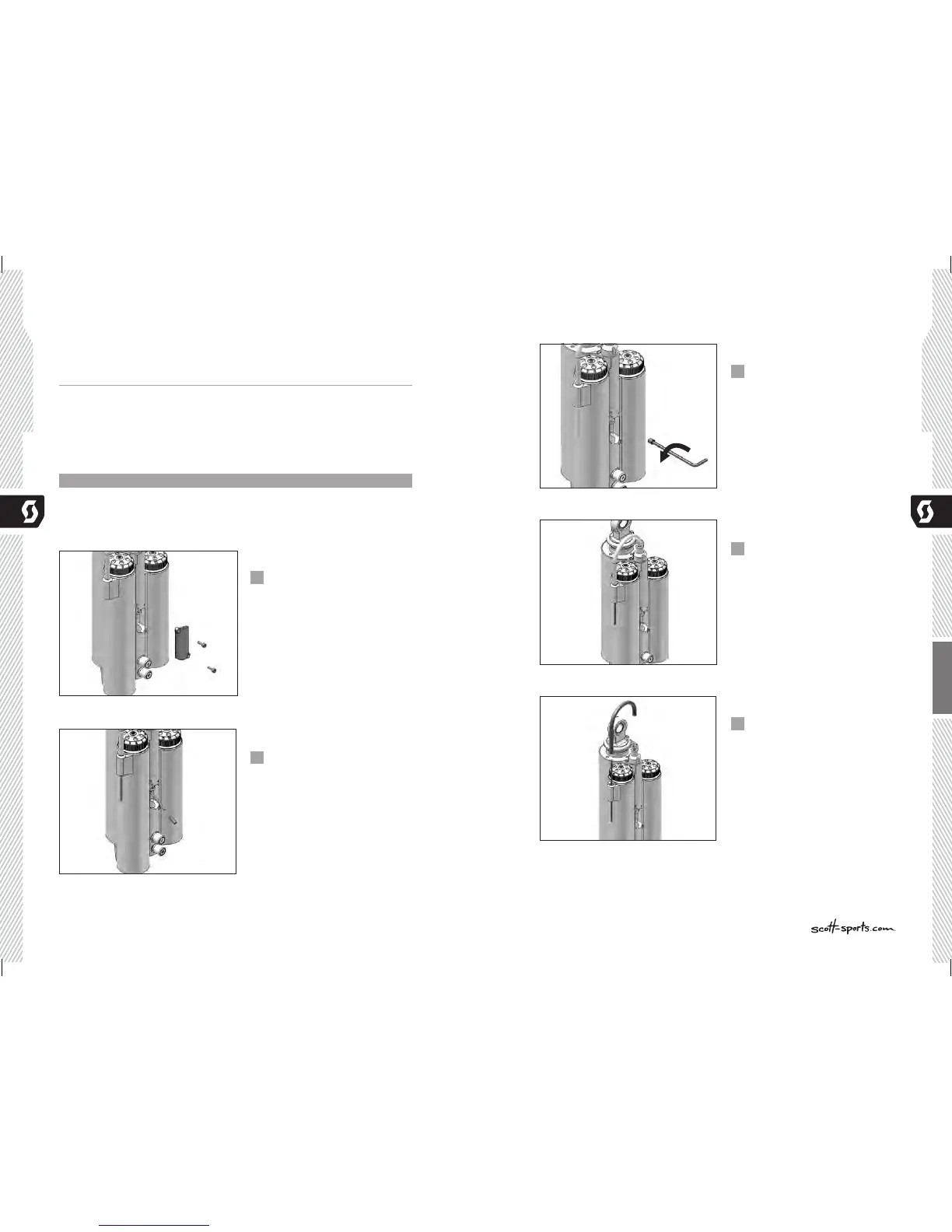

Remove the cap of the cable
housing window on the shock
by turning the screws counter
clockwise using a 1.5 mm allen key
1
remove the end cap of the cable
with pliers
2
loosen the cable fixing screw (S11)
by turning it counter clockwise
with a 2mm allen key.
3
remove the old cable by pushing/
pulling it out from the TWINLOC
lever
4
insert a new cable via lever hole
and cable housing and push it
into the shock as shown.
5
