GENIUS LT
16 2011 SCOTT BIKE OWNERS MANUAL
GENIUS LT
17

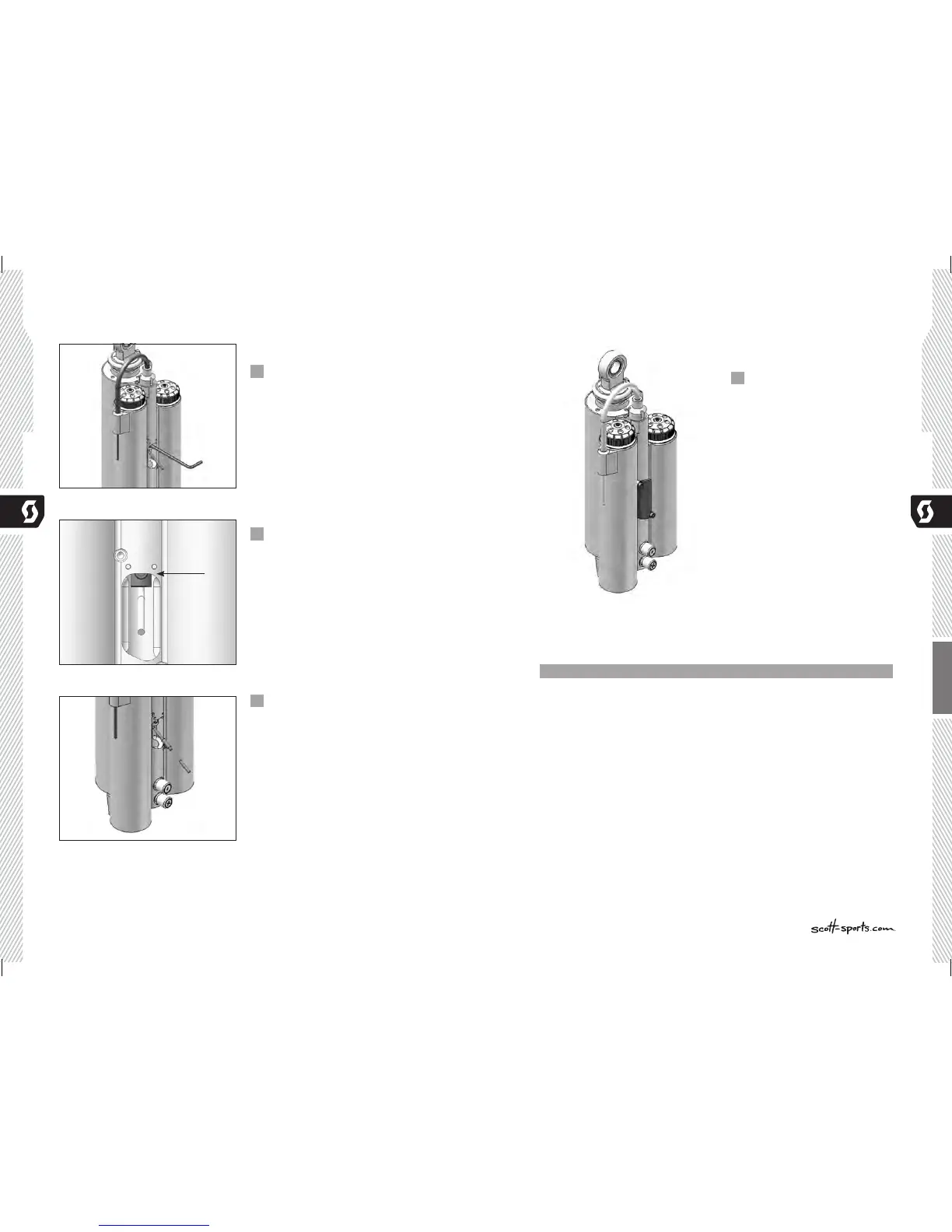

ENGLISH
tighten the cable and fix the
cablefixing screw (S11) by turning
it clockwise with a 2mm allen key
and a max. Tightening torque
of 1.6Nm.
6
to double check accurate cable
tension please push the TWINLOC
lever to “Traction mode”. The
mid of the cable fixing screw
(S11) should be at the edge of
the upper cable housing window
on the shock. For fine tuning
please adjust the cable tension
via the barrel adjuster (L5) on the
TWINLOC lever.
7
push the “open ended” cable cap
on the cable until it touches the
cable sled, fix it by squeezing it
with pliers and cut the cable just
below the cap.
Keep 35mm cable length from the
edge of the cable sled.
8
remount the cap of the cable
housing window on the shock by
turning them clockwise using a
1.5 mm allen key and a maximum
tightening torque of 0.3 Nm
9
Important:
Please note that the maximum pressure of the Equalizer 3 shock is 28.0 bars/406 psi
in the positive chamber and 22.4 bars/325 psi in the negative chamber which means a
max. Rider weight of 110 kgs/243 lbs incl. riding gear and load.
