GENIUS LT
12 2011 SCOTT BIKE OWNERS MANUAL
GENIUS LT
13
ENGLISH
REAR SHOCK-TECHNOLOGY
The heart of the TC-System is the new developed and innovative Scott Equalizer 3
Shock made by DT Swiss, offering three functions which make this system possible.
By using the TWINLOC remote lever you can chose following functions on the rear
shock:
1. ALL TRAVEL MODE: full travel of 185mm
2. TRACTION MODE: by reducing the internal chamber volume inside the shock the
travel of the shock will be reduced to around 60% (approx. 110mm) the characteristic
of the air spring gets harder. This results in climbing without “bobbing” and offers
still optimum traction of the rear wheel.
3. LOCK OUT MODE: the shock is locked; climbing on asphalt roads is now possible
without any power loss. Simultaneous a blow-off-system prevents the shock being
damaged in case the rider did not open the system while crossing obstacles.
EQUALIZER 3 SHOCK AND TWINLOC
REMOTE CONTROL LEVER

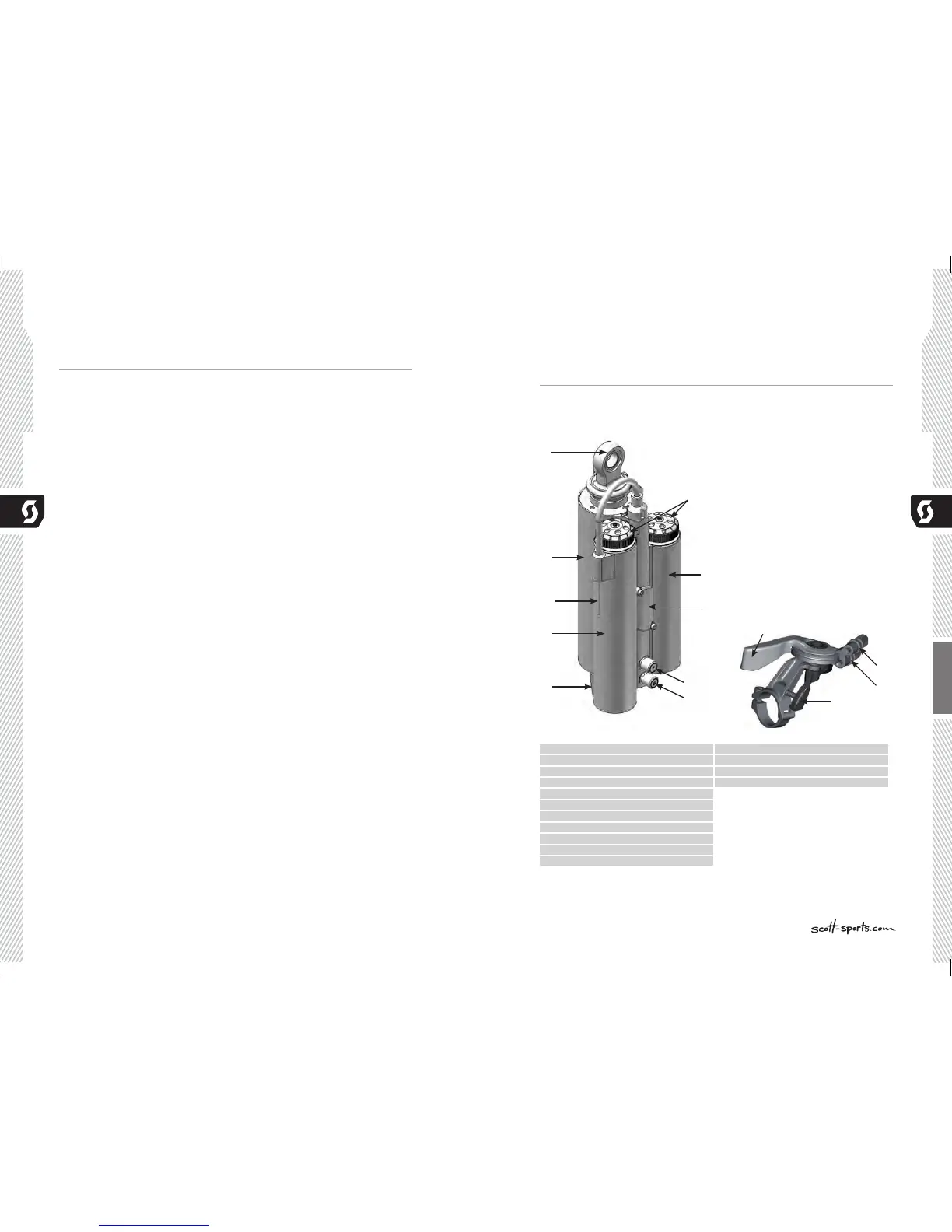

In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and set-up.
S6/S7
S3
S5
S10
S1
S4
S11
S9
S8
S2
S1 Top eyelet/ Shock Bolt L1 Remote Lever
S5 Shock Housing
S9 Negative Chamber Valve
S3 Traction Mode Chamber
S7 Rebound- Screw
S11 Cable fixing Screw (hidden behind dust protector plate)
S2 Down eyelet/ Shock Bolt L2 Release Button
S6 Rebound- Screw
S10 Remote Control Cable
S4 Full Mode Chamber
L3 Cable Tension Screw Fork Remote
L4 Cable Tension Screw Shock Remote
S8 Positive Chamber Valve
L3
L4
L1
L2
