SCOTT GENIUS LT - ASSEMBLY OF THE REMOTE CABLE; SRAM;RockShox Forks

GENIUS LT
10 2011 SCOTT BIKE OWNERS MANUAL
GENIUS LT
11
ENGLISH
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
FORK
CABLE
*** g *** A4
Scale Material Projection
Version: 00
3:2 ***
Division Pro-E file Drawn by Date Page
BIKE twinlock-lever_2.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
SCALE 3:2
FORK CABLE
rear shock cable

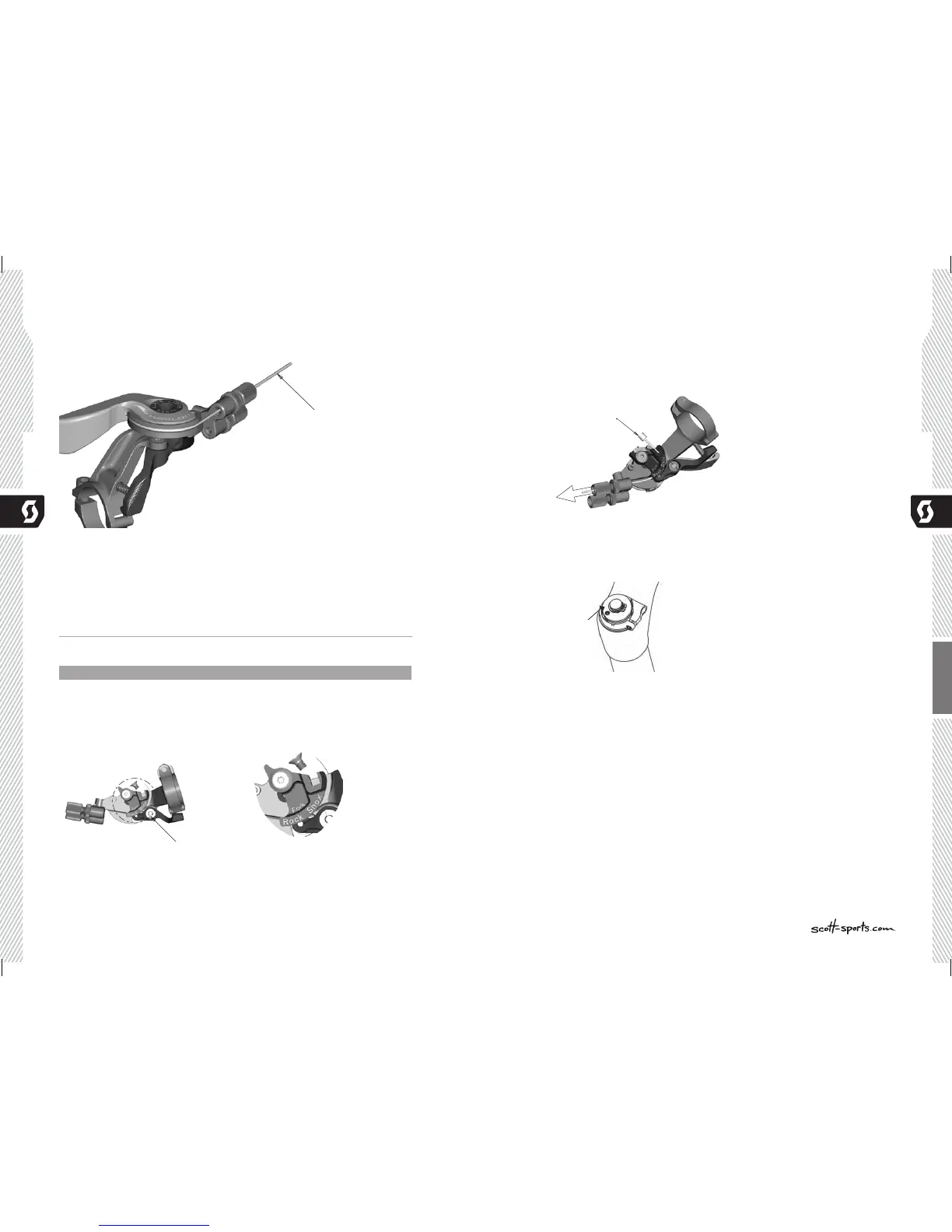

Please note that the cable for the rear shock is ALWAYS the upper cable on the lever
as shown in drawing below.
ASSEMBLY OF THE REMOTE CABLE
SRAM/RockShox forks:
Important:
Please make sure the lockout of SRAM/RockShox fork is activated after transport
correctly. Therefore please compress fork 5-10 times before following the manual on
remote cable installation and adjustment.
The lever should show on the downside of the able roll follow indication:
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
See Detail A
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
Detail A
To assemble the cable please bring the lever into the All Travel Mode, push the cable
into the lever-eyelet as shown on drawing below, push it through the pre-cut cable
housing and fix it at the assembly unit on top of the right side of the fork crown.
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROCK SHOX
CABLE ASSEMBLY
*** g *** A4
Scale Material Projection
Version: 00
13:10 ***
Division Pro-E file Drawn by Date Page
BIKE twinloc-rocks-cable-ass.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
ROCK SHOX
FORK
SCALE 13:10
FORK CABLE
Fork cable
2mm allen
Fix the cable with the 2mm allen screw on the barrel adjuster on the fork crown with a
tightening torque of 0.9Nm/ 8lb/in, cut the cable and secure it with a cable end-cap.
Please refer for this action also to the manual of SRAM/RockShox attached to the bike.
TIP:
To check for accurate cable tension, please try to move the plastic end cap of the cable
housing at the barrel adjuster on the remote lever. There should be “no-play” between
cap and barrel adjuster.
In case of “play” please turn the barrel adjuster clockwise until “no-play”.
