GENIUS LT
18 2011 SCOTT BIKE OWNERS MANUAL
GENIUS LT
19
ENGLISH
RECOMMENDED TOOLS FOR THE SHOCK SET-UP
For the set-up of the shock we recommend to use a shock pump with a scale up to 40
bars/600 psi with a special air valve connector preventing from air getting away while
removing the pump from the shock valve, this will result in an exact air pressure.
Please note that air will flow into the hose and indicator when counterchecking the
air pressure, so you have to set up again the recommended pressure after this action.
Make sure to balance at least this air loss when you make a check of the air pressure
of the shock. Pls also note that the indicators of shock pumps have a tolerance of
max. 10%

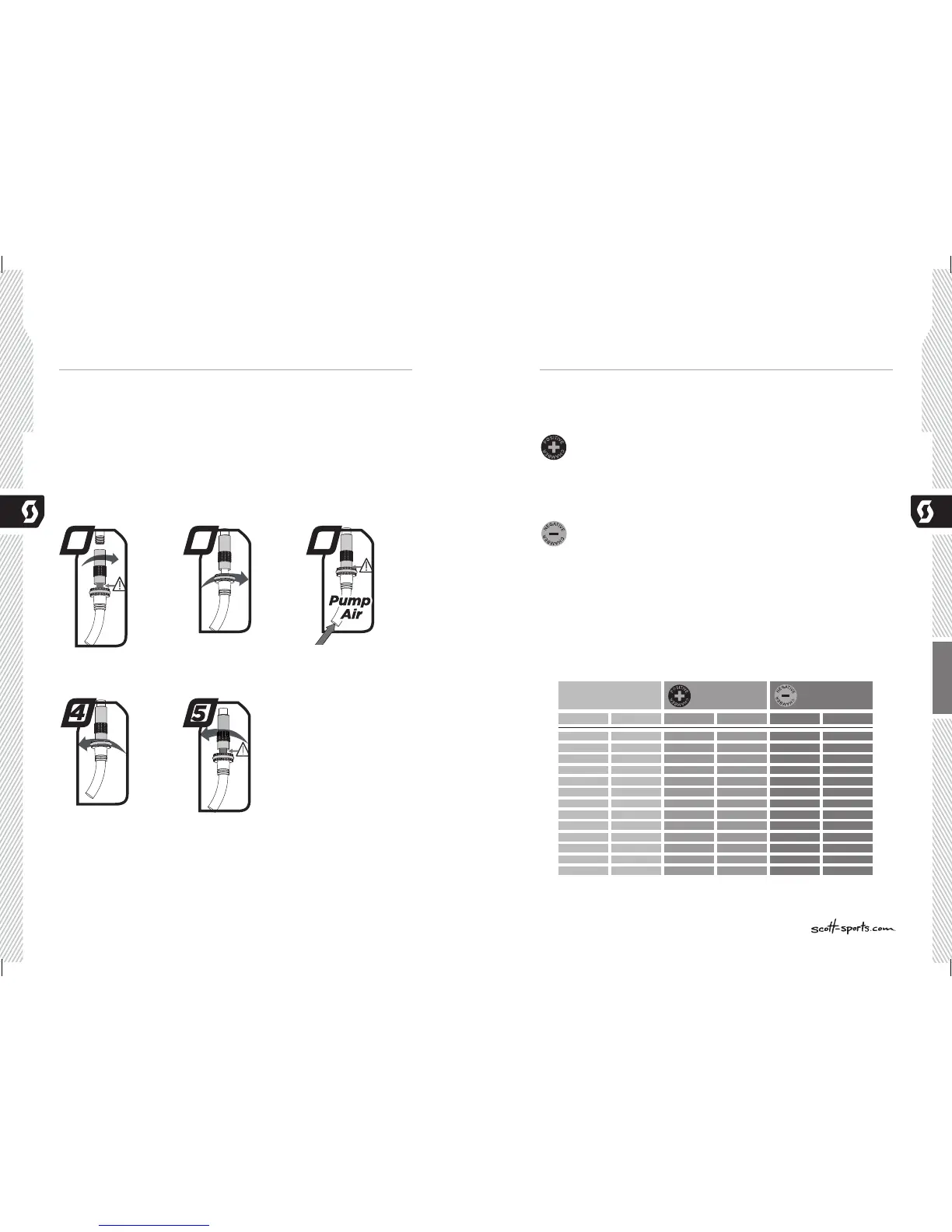

SET-UP GENIUS WITH EQUALIZER 3 SHOCK
The Set-Up of the Scott/DT Equalizer 3 Shock can be easy done within a few minutes..
To adjust the air pressure of the air chamber of the Scott Equalizer 2 Shock please refer
to the following instruction:
1. remove the valve cap of the positive valve (S8) which is the LOWER valve
on the shock body and mount the shock pump with its adaptor on the valve.
2. pump the recommended pressure into the shock. On the shock body
you will find a table showing the recommended air pressure of the positive
chamber according to the rider’s weight.
3. when you reached the needed pressure remove the pump and put the valve
cap on the valve
4. remove the valve cap of the negative valve (S9) which is the UPPER valve
on the shock body and mount the shock pump with its adaptor on the valve
5. pump the recommended pressure into the shock. On the shock body
you will find a table showing the recommended air pressure of the negative
chamber according to the rider’s weight.
6. when you reached the needed pressure remove the pump and put the valve
cap on the valve
AIR PRESSURE
POSITIVE
RIDERS WEIGHT AIR PRESSURE
NEGATIVE
KG LBS BAR PSI BAR PSI
40 88 11.0 160 8.0 116
45 99 12.0 174 8.5 123
50 110 13.0 189 9.0 131
55 121 14.0 203 10.0 145
60 132 15.0 218 10.5 152
65 143 16.0 232 11.0 160
70 154 17.0 247 12.0 174
75 165 18.0 261 12.5 181
80 176 19.0 276 13.5 196
85 187 20.0 290 14.0 203
90 198 21.0 305 14.5 210
95 209 22.0 319 15.5 225
100 220 23.0 334 16.0 232
Recommended Air Pressure
