SCOTT SCALE 940 User Manual

2023 SCALE | ENGLISH 3
|
SCALE

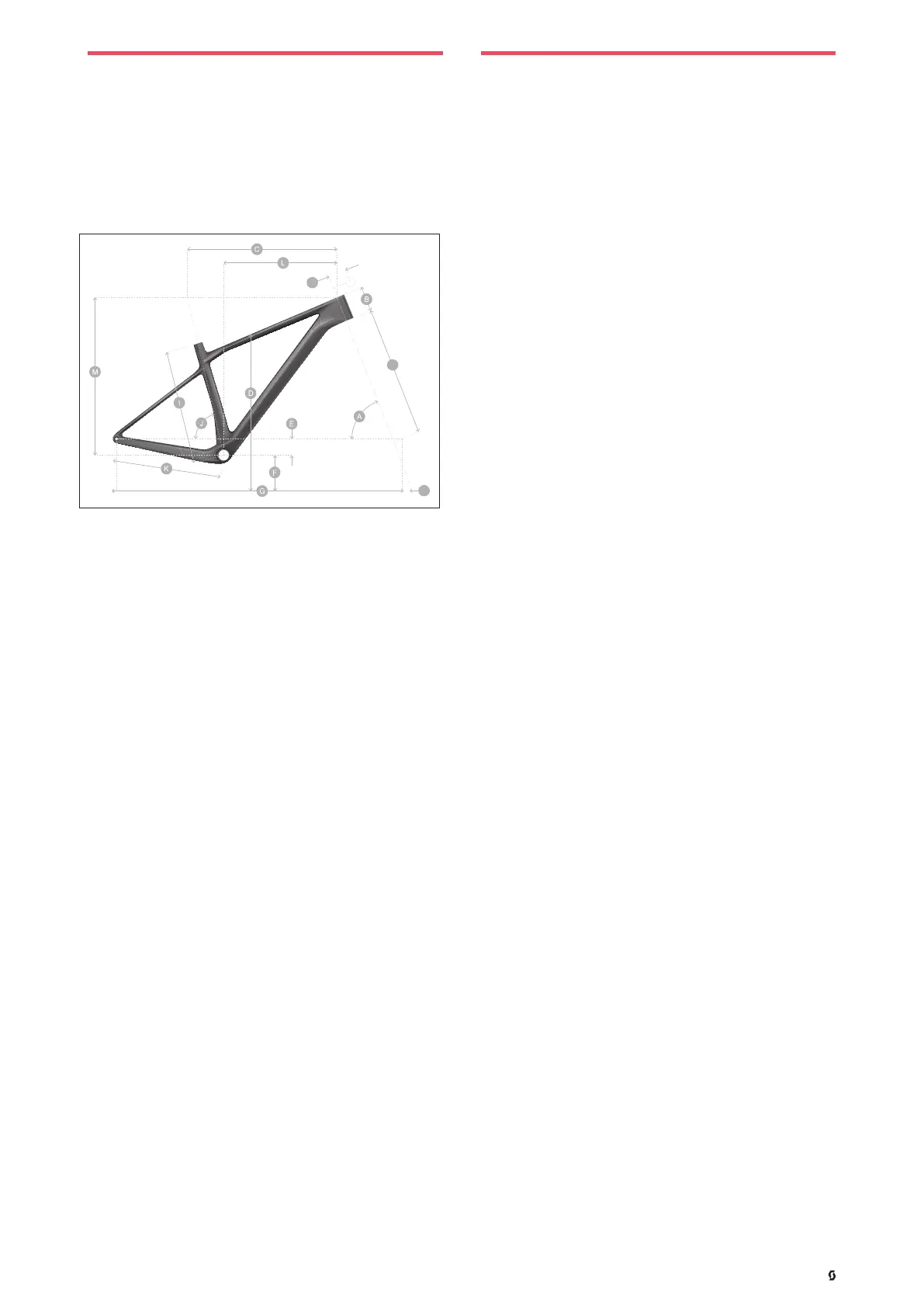

GEOMETRY & TECHNICAL DATA
SEATPOST
mm 31.6 (use carbon grease)
SEATPOST CLAMP
mm 34.9
TRAVEL
mm 100 Ft
SHOCK LENGTH
mm 185
MAX ROTOR
mm 180 Rr/Ft (160 Rr Small)
MAX CHAINRING
Tooth 38
MAX TYRE WIDTH
in 2.5
CHAINLINE
mm 55
N
O
P
Alloy/Carbon Alloy/Carbon Alloy/Carbon Alloy/Carbon Alloy
MY23 SCALE SM MED LG XL XXL
A Head tube angle
° 67.4/67.9 67.4/67.9 67.4/67.9 67.4/67.9 67.4
B Head tube length
mm 90/90 100/95 110/110 120/120 120
C Top tube horizontal
mm 580/575 605/600 630/626 660/656.5 680
D standover height
mm 755/752 786/781 805/800 835/835.1 870
E BB offset
mm -60/-62 -60/-62 -60/-62 -60/-62 -60/-62
F BB height
mm 315/313 315/313 315/313 315/313 315
G Wheelbase
mm 1111.8/1105.4 1138.2/1131.1 1164.6/1158 1195.9/1189.4 1215.9
I BB center to TST
mm 390/390 440/440 480/480 530/530 580
J Seat angle
°
75/75.4 75/75.4 75/75.3 75/75.3 75
K Chainstay
mm 425/425 425/425 425/425 425/425 425
L Reach
mm 420.3/418.5 442.8/442.3 463.3/463.6 492.9/491.2 512.9
M Stack
mm 596.1/600.3 605.3/604.9 614.6/618.9 623.8/628.1 623.8
Fork Rake
mm 44 44 44 44 44
Trail
mm
112.6/105.1 112.6/105 112.6/105 112.6/105 112.6

SCOTT SCALE 940 Specifications

General

Brakes	Shimano MT201 Disc
Chain	KMC X12
Saddle	Syncros Belcarra Regular 2.5
Frame	Boost 148x12mm
Fork	RockShox Judy Silver TK, 100mm travel
Shifters	Shimano Deore SL-M6100
Crankset	Shimano FC-MT511-1 / 32T
Cassette	Shimano Deore CS-M6100-12 / 10-51 T
Wheelset	Syncros / 32H
Tires	29x2.25"
Handlebar	Syncros Alloy 6061 / 740mm
Seatpost	Syncros / 31.6mm
BB-Set	Shimano BB-MT500
Rotor	Shimano SM-RT10 CL / 180/F and 160/R
H'stem	Syncros FL1.0
Headset	Syncros OE Press Fit
Hub (Front)	Formula CL-811
Hub (Rear)	Formula CL-3248
Spokes	Stainless Black 15G / 1.8mm
