SCOTT SCALE CARBON User Manual

SCALE CARBON
6 2011 SCOTT BIKE OWNERS MANUAL
SCALE CARBON
7
TECHNICAL DATA SCALE
Seatpost diameter 34.9mm
Seattube clamp 38,2mm, some models with integrated seatclamp
Headtube diameter 1 1/8” /1.5”, tapered, cups semi-integrated, 50-61mm cup OD
Fork travel 100mm
Fork length 471mm
BB housing PF BB 92, PF BB 30
Rear Hub Width 135mm
Max tire width 57.0mm/2,25”
Chainring size Min. 22T, max. 45T

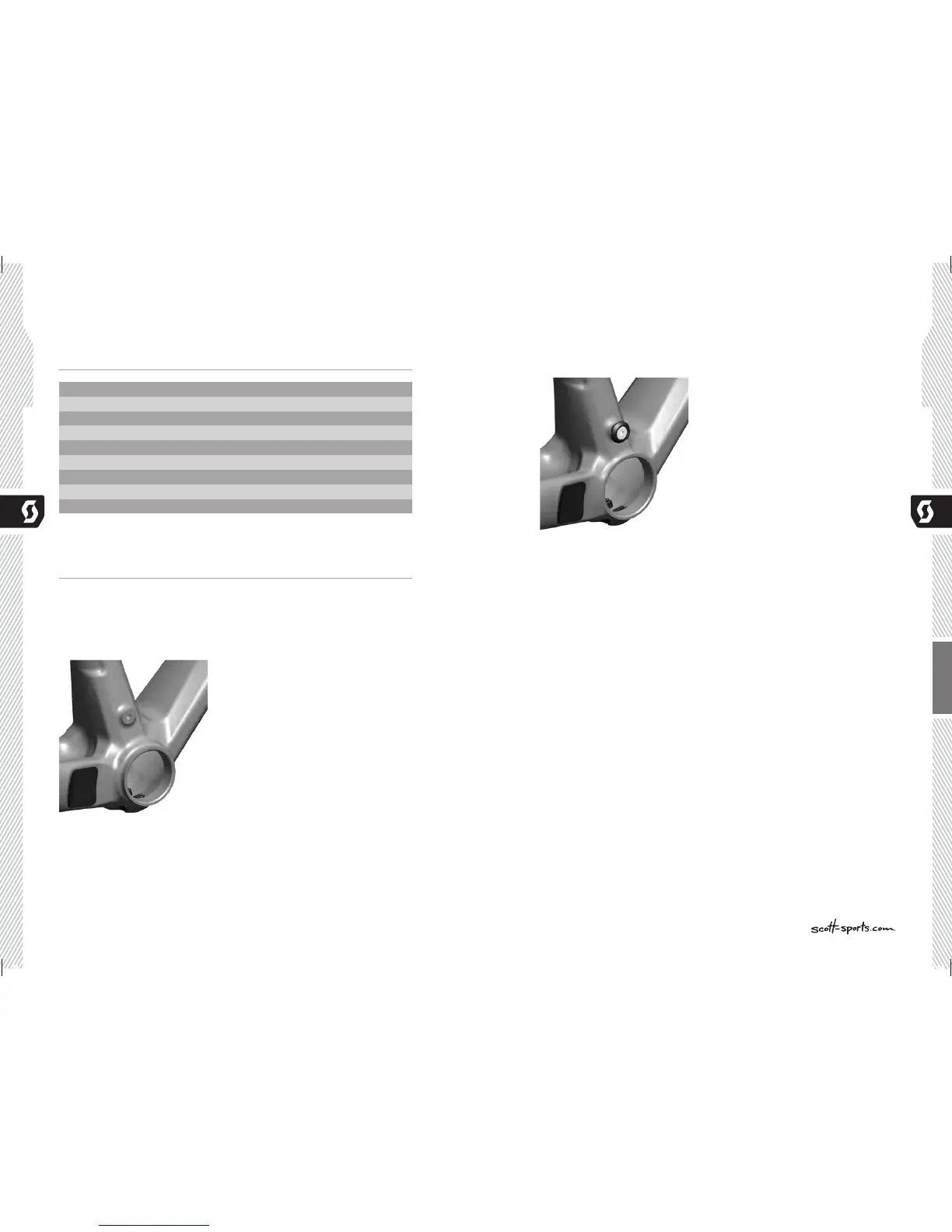

BB STANDARDS / FD MOUNTING DETAILS
Scale is available with 2 different Bottom Bracket systems. Both of them are designed
for PressFit Cartridges (PF).
PFBB92hasahousingwidthof89.5mmwithaninnerdiameterforthecartridges
of41mm.
The Front Derailleur (FD) clamp is with an inner diameter of 34.9mm, the cable routing
on the frame is for “down route/pull - down swing” models.
PFBB30hasahousingwidthof73mmwithaninnerdiameterforthecartridges
of46mm.
The Front Derailleur (FD) clamp is with an inner diameter of 38.2mm, the cable routing
on the frame is for “down route/pull - down swing” models.
Important
PleaserespectthetorquegivenbyShimano/Sram
AhighertighteningtorquemightcausedamagetotheFDclampand/orframetube!
ENGLISH
H_scale_carbon_en.indd 6-7 19.04.10 11:04

SCOTT SCALE CARBON Specifications

General

Frame Material	Carbon
Wheel Size	29"
Wheelset	Syncros (depending on the specific model)
Saddle	Syncros (depending on the specific model)
Fork	RockShox / FOX / Suntour (depending on the specific model)
Drivetrain	Shimano or SRAM (depending on the specific model)
Brakes	Shimano or SRAM disc brakes (depending on the specific model)
Tires	Schwalbe or Maxxis (depending on the specific model)
Handlebar	Syncros Alloy or Carbon (depending on the specific model)
Seatpost	Syncros Alloy or Carbon (depending on the specific model)
