SCOTT SCALE CARBON User Manual

SCALE CARBON
10 2011 SCOTT BIKE OWNERS MANUAL
SCALE CARBON
11

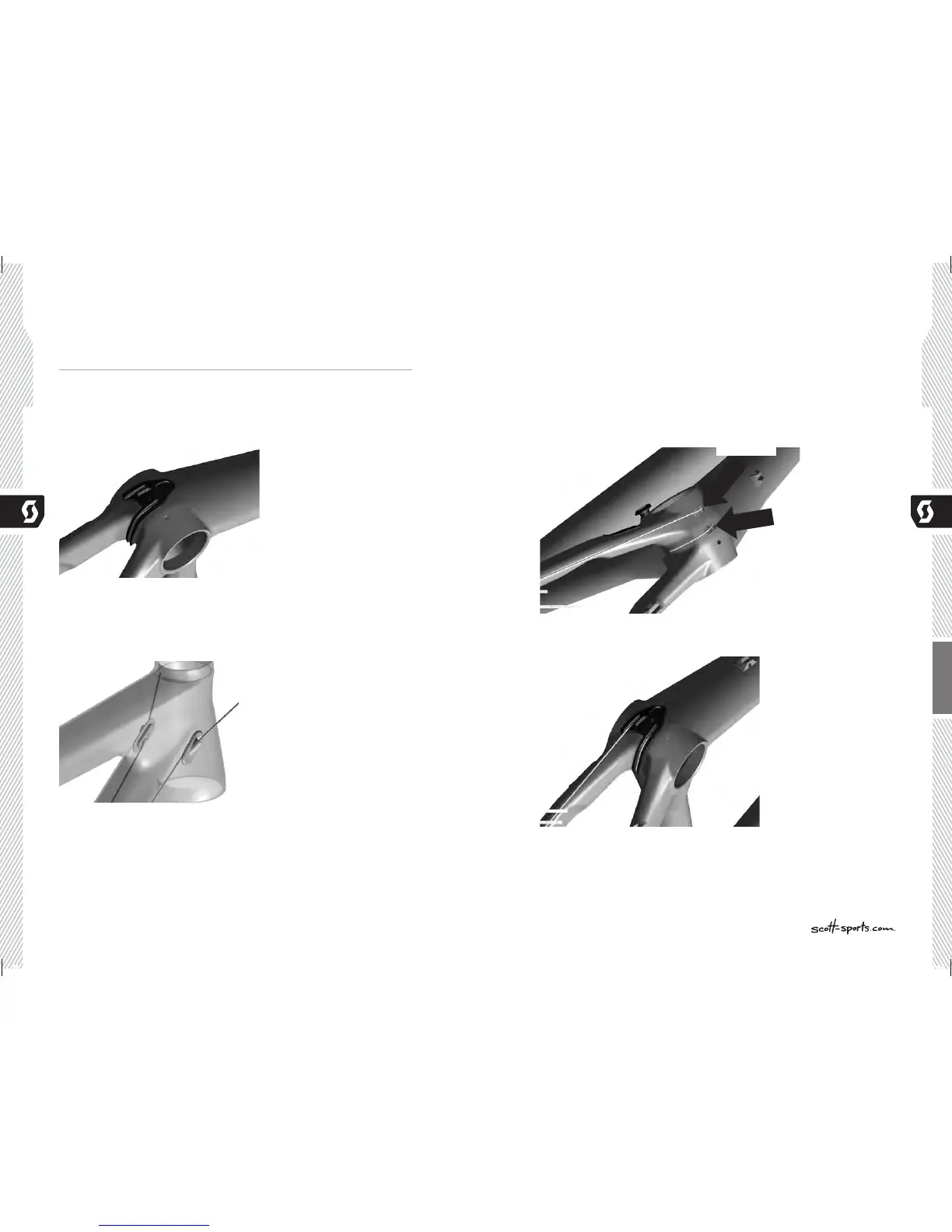

BB CABLE GUIDE / CABLE ROUTING
Scale Carbon features also an internal cable routing for front and rear derailleur.
A special BB Cable Guide was developed for Scale Carbon which is available as a spare
part at the Scott distribution.
In case you want to replace the cables, please follow those steps:
1. Remove the clip-in BB Guide in the BB housing
2. Push the inner cables from the front downward inside the downtube to the
BB housing. Please make sure to follow the cable routing as shown below:
3. Pull them out on the related holes (RD on right side, FD on left side) on the
BB housing.
4. Push them through the related holes on the BB Guide and clip the BB Guide into the
BB housing
5. Follow the standard set up and assembly instructions of the shifting system
manufacturer for final adjustment of the shifting system
Please note that the outer housing of the FD and RD cables will stop at the cable stop/
port on the front end of the down tube.
ENGLISH
Front derailleur
Rear derailleur
H_scale_carbon_en.indd 10-11 19.04.10 11:04

SCOTT SCALE CARBON Specifications

General

Frame Material	Carbon
Wheel Size	29"
Wheelset	Syncros (depending on the specific model)
Saddle	Syncros (depending on the specific model)
Fork	RockShox / FOX / Suntour (depending on the specific model)
Drivetrain	Shimano or SRAM (depending on the specific model)
Brakes	Shimano or SRAM disc brakes (depending on the specific model)
Tires	Schwalbe or Maxxis (depending on the specific model)
Handlebar	Syncros Alloy or Carbon (depending on the specific model)
Seatpost	Syncros Alloy or Carbon (depending on the specific model)
