SCOTT SCALE CARBON User Manual

SCALE CARBON
12 2011 SCOTT BIKE OWNERS MANUAL
SCALE CARBON
13

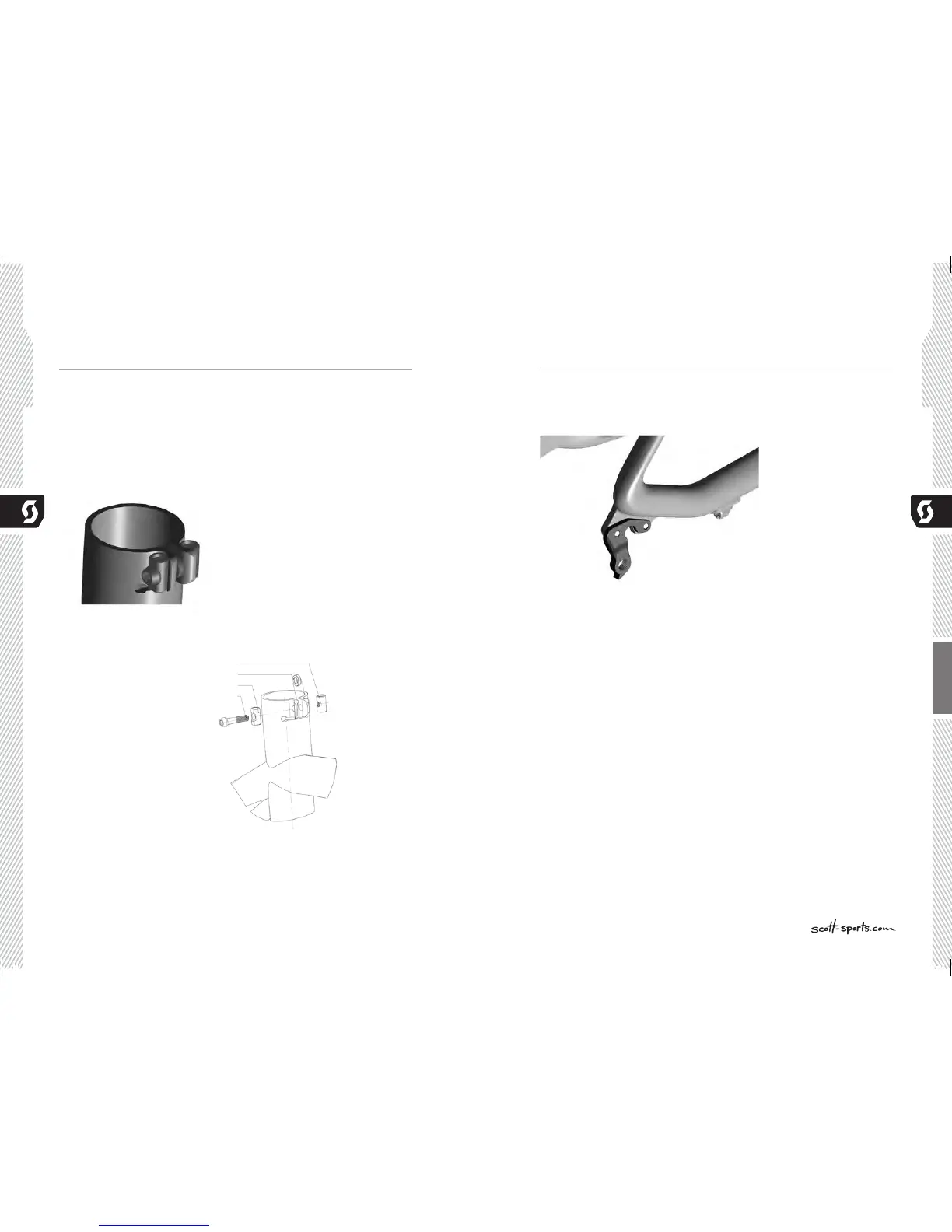

SEATTUBE CLAMP REPLACEABLE REAR DERAILLEUR HANGER
Scale Carbon features two different versions of the seatpost fixation on the seattube.
Integrated clamp type:
This fixation shaves off approx. 15 grams in comparison to a regular seattube clamp.
Pleasenotethemaximumtighteningtorqueonthefixingboltof5Nm/44in/lbsto
avoiddamagesonframe,clamppartsortheseatpost.
Scale Carbon is using the same replaceable rear derailleur hanger as Scott Spark and
Genius.
This spare part can be ordered via the Scott distribution with article number 206473.
Standard type:
Please make sure to only use a seatclamp with an inner diameter of 38.2mm and
please note the maximum tightening torque on the fixing bolt of 5Nm/44 in/lbs
ENGLISH
Please make sure to use always the washer between the 2 clamp parts to avoid dama-
ges on the frame, seatpost or clamp mechanism.
seatclamp M5 nut
seatclamp washer
seatclamp nut
seatclamp M5 screw
H_scale_carbon_en.indd 12-13 19.04.10 11:04

SCOTT SCALE CARBON Specifications

General

Frame Material	Carbon
Wheel Size	29"
Wheelset	Syncros (depending on the specific model)
Saddle	Syncros (depending on the specific model)
Fork	RockShox / FOX / Suntour (depending on the specific model)
Drivetrain	Shimano or SRAM (depending on the specific model)
Brakes	Shimano or SRAM disc brakes (depending on the specific model)
Tires	Schwalbe or Maxxis (depending on the specific model)
Handlebar	Syncros Alloy or Carbon (depending on the specific model)
Seatpost	Syncros Alloy or Carbon (depending on the specific model)
