> INSTALLATION OF THE MECHANICAL TRAVEL LIMITS.
open at left
(Diagrams are as seen from the inside of the property)
1
ère
limit switches
2
ème
limit switches
2
ème
limit switches
1
ère
limit switches
open at right

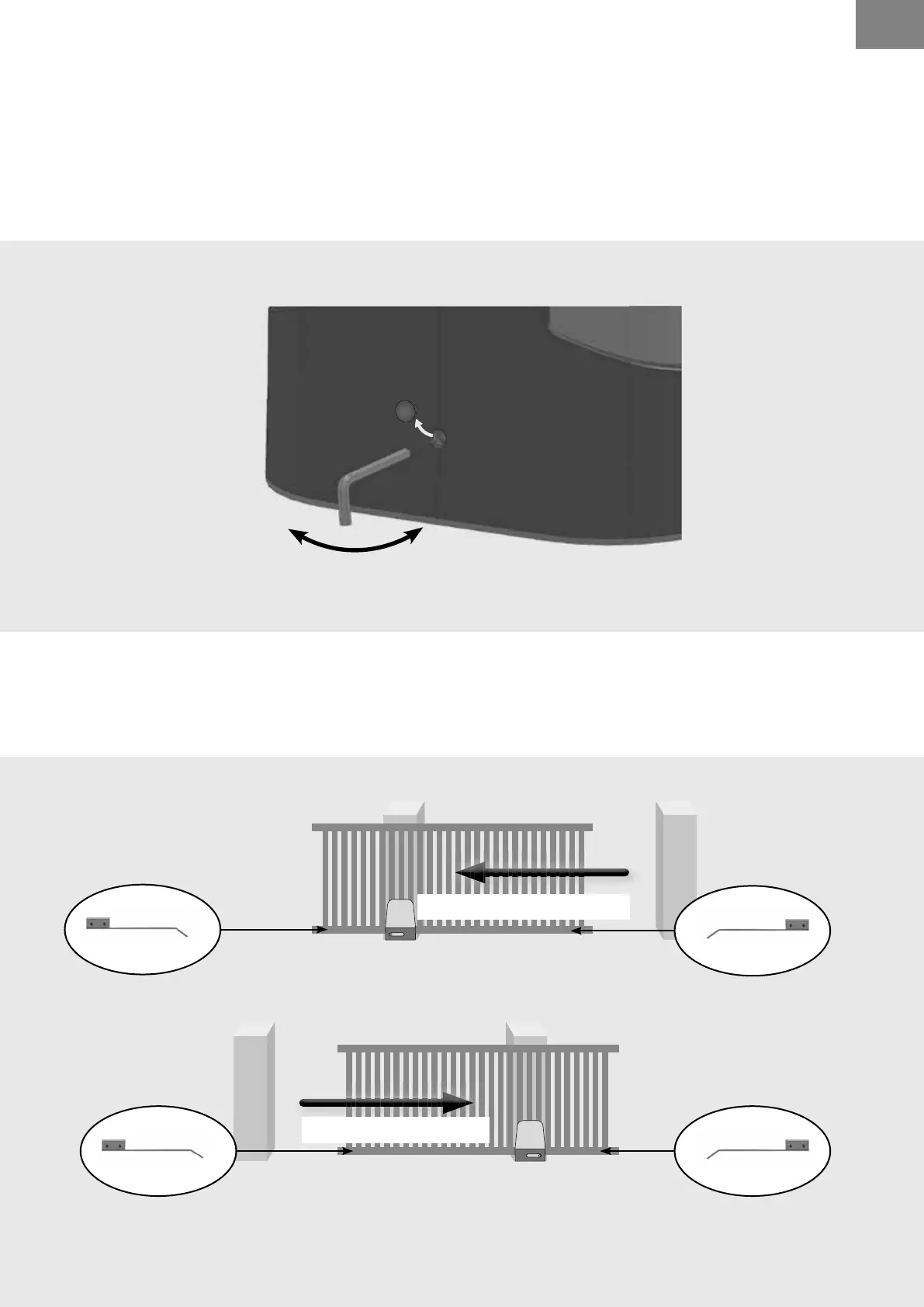

> MANUAL UNLOCKING
In case of power failure or to program your gate automation, you can manually unlock the motors.
Situate yourself at the interior of the gate. Remove the plug and insert the six-sided unlocking key, then
turn between  ve and ten times. You will now be able to open your gate manually.
To return your motor to the locked position, remove the plug and insert the six-sided unlocking key,
then turn between  ve and ten times in the opposite direction.
Do not forget to replace the plug afterwards.
5 rounds and more
