SCS Compact - Dimensions and Parameters

- 47 -
SCS Compact - Operating instructions

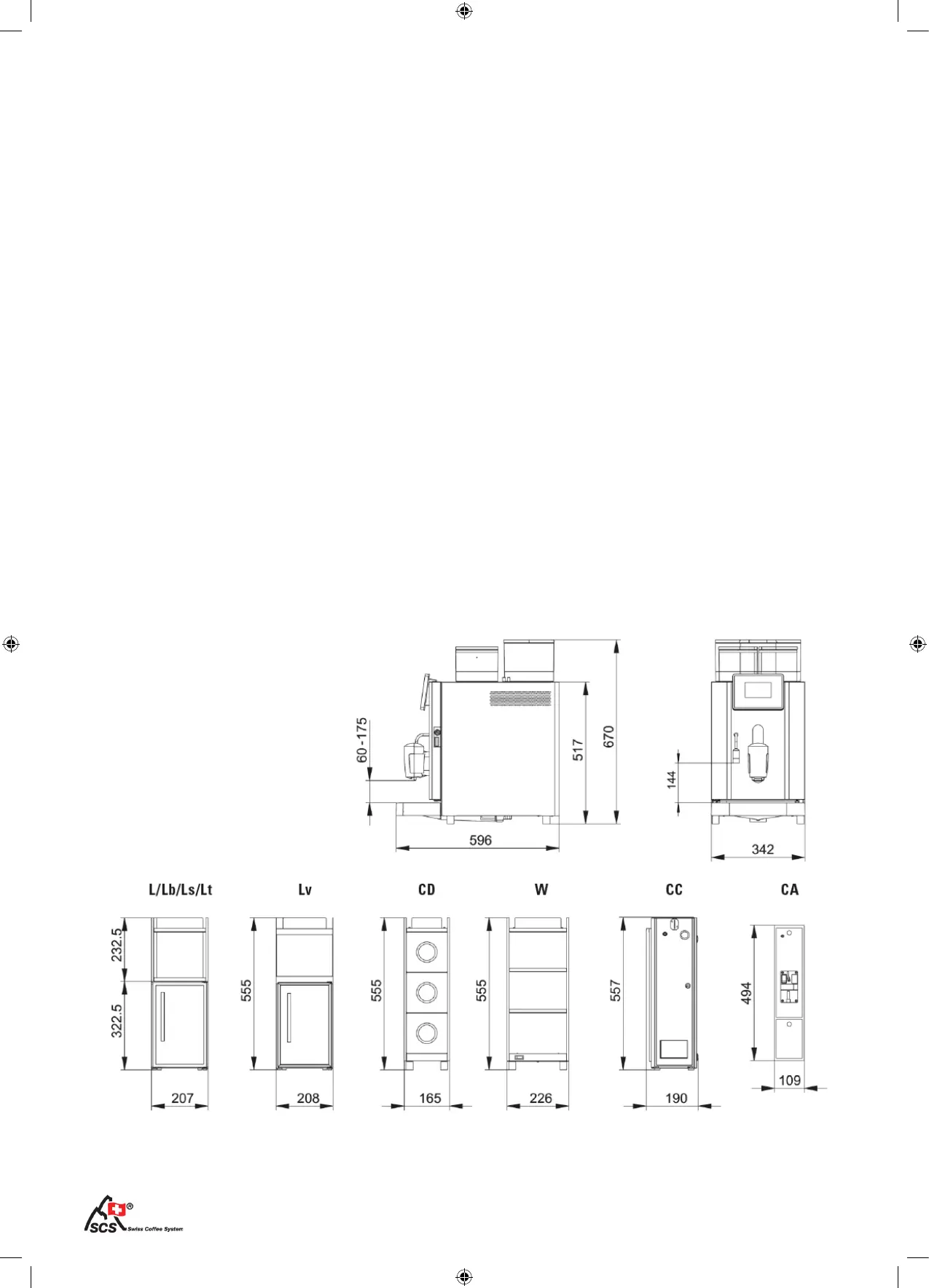

External dimensions WxHxD: 342 x 670 x 596 mm
Outer height: 550 mm
without bean hoppers
Height (coffee outlet): 60-175 mm
Height (water / tea outlet): 144 mm
Weight: 37-42 kg
depending of the type and options
CapacitiesDimensions
Dimensions and parameters
Water / humidity / temperature
Bean hopper: 1.4 kg
Capacity with 1 grinder
Bean hopper: 800 g / hopper
Capacity with 2 grinders
Powder hopper: 1 kg / hopper
Capacity per hopper
Water tank: 3.2 litres
(optional)
Water pressure: 200-600 kPa
Water hardness ideal: 5-8 dH° (8-14 fH°)
Water hardness maximum: 10 dH° (17 fH°)
Humidity maximum allowable: 80 %
Ambient temperature: 10°-35° C
Note:
The machine must not be installed outdoors!
Add-on units
Compressor refrigerator 4 litres (L/Ld): 14 kg
Compressor refrigerator with tray: 18 kg
Compressor refrigerator with cup warmer (Lv): 21 kg
Cup warmer (W): 13 kg
Cup dispenser (CD): 12 kg
Coin changer / coin acceptor (CC / CA): 15 kg / 4 kg
