SF2 ECCR OPERATION MANUAL
5.3 Assembly Scrubber und lower
carbon fiber tube

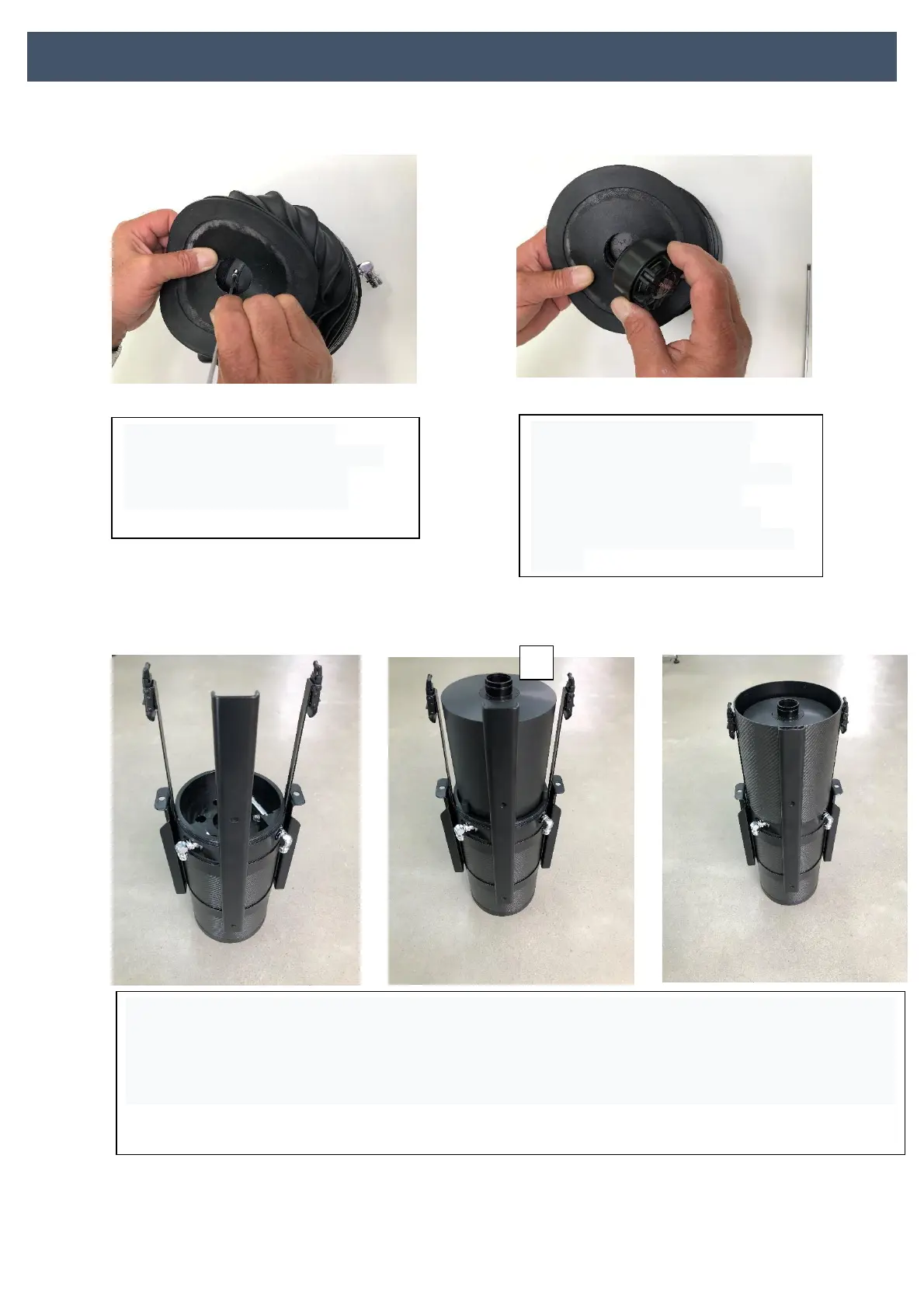

The bellow washer disc is
attached to the middle part with
the help of the screws. The
screws are hand-tightened.
The pressure relief valve is
screwed into the breathing
bellows. Here, too, hand-tight is
completely sufficient. The
material needs light counter
pressure so that it does not turn
with it.
The middle part is pushed into the backmount frame. The two gas seals must be positioned between
the pony clamps and the plate holder. Then the lime container is placed on the middle part. The O-ring
on the lime connection (1) must be checked regularly. Then the upper carbon tube is mounted. Inside
the carbon tube there is a sticker with a serial number. This sticker is at the bottom (points towards
the middle part).
