5.4 Assembly battery solenoid
5.5 Assembly Sensors

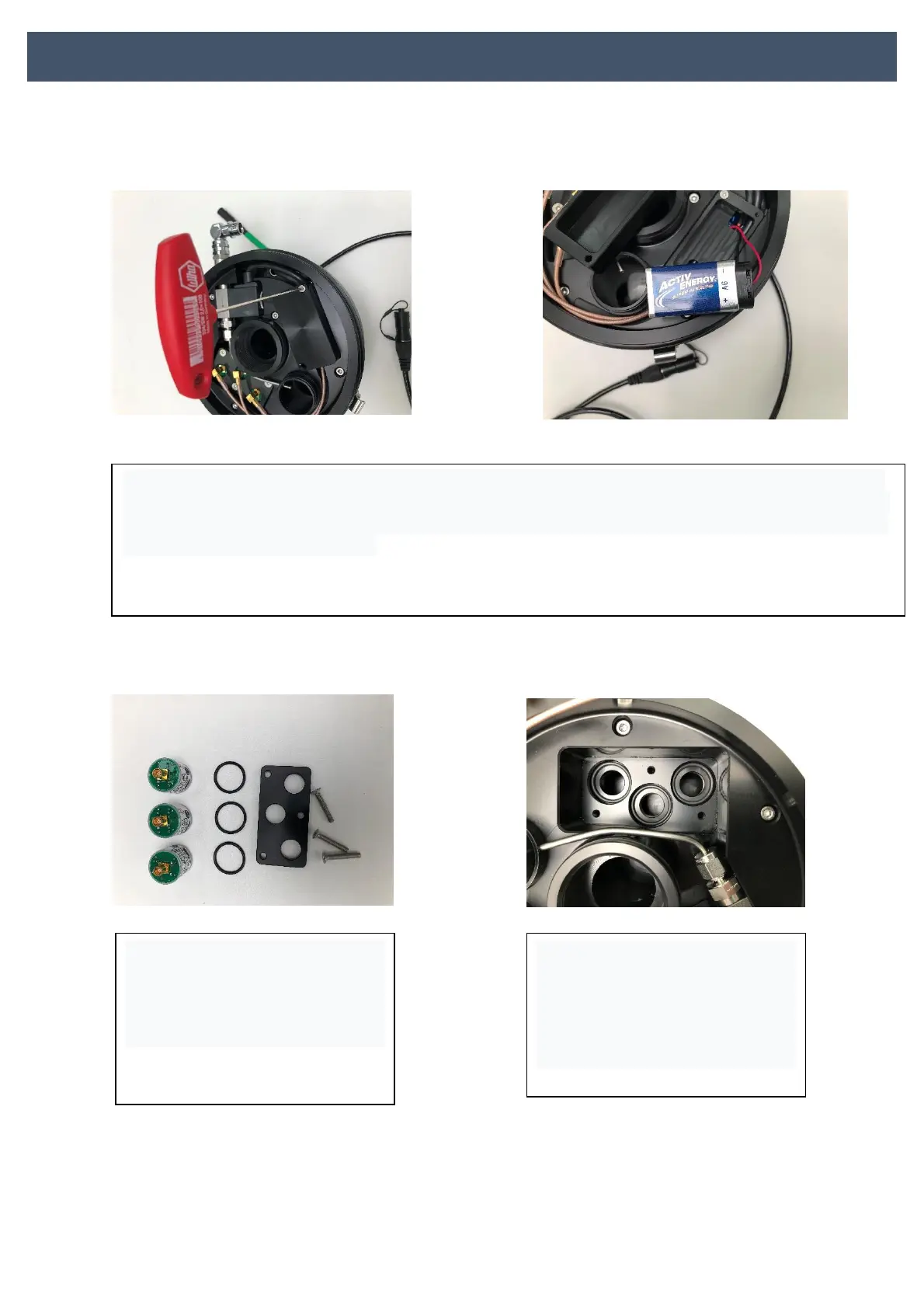

To insert the battery, the battery compartment must first be opened. To do this, the two Allen
screws are unscrewed with a suitable key. The battery that powers the solenoid is a standard
9 volt battery. This is connected to the system via a splash-proof connector. Then the screws
are tightened again hand-tight.
The following parts are
required for the sensor
assembly:
3 x oxygen sensor; 3 x O-ring;
Sensor cover plate; 3 x screws
First the O-rings are placed in
position. When changing the
sensors, it often happens that
the O-rings get stuck on the
old sensors.
