IDS701 User Manual
Page 5 of 25
2. Installation and Calibration
2.1 connection indicator with loadcell
IDS701 can connect four pcs 350Ωload cell at most, both four and
six wire load cell are ok. To make it simple, we use quick disconnect
Or standard plug. As belows

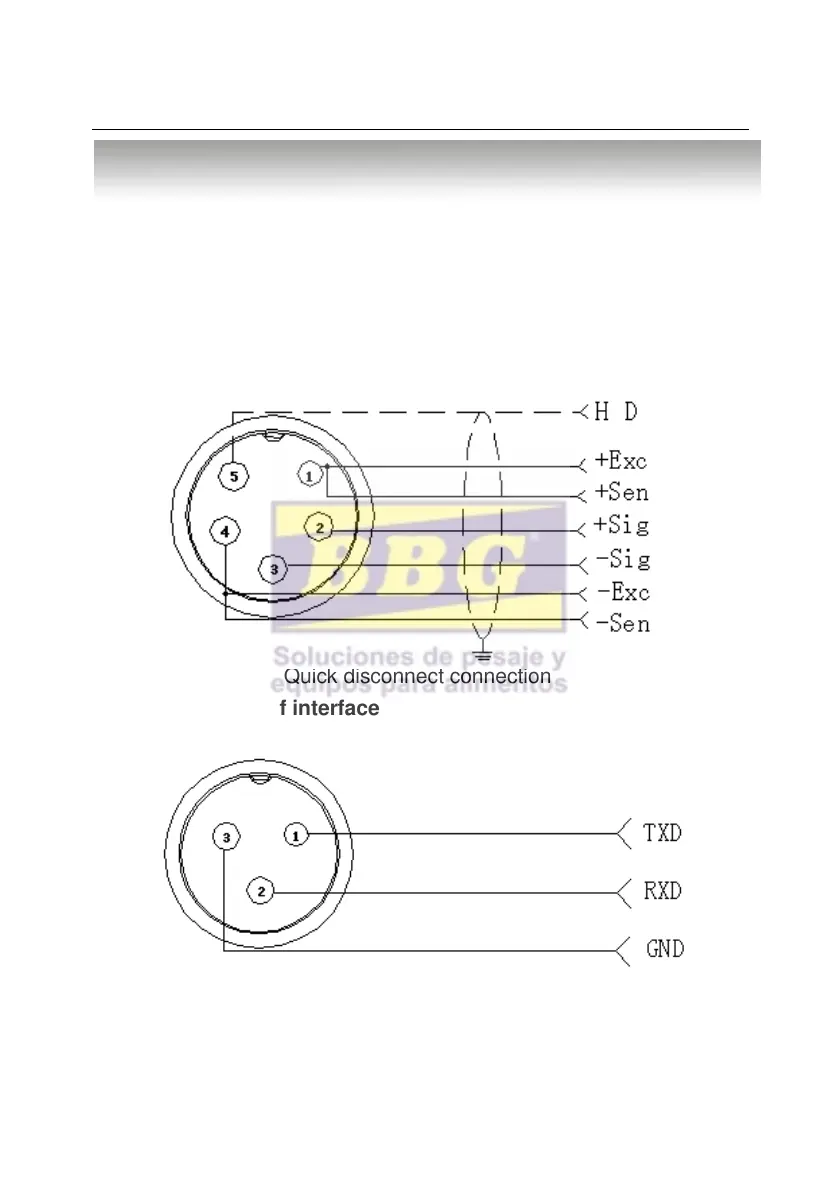

Quick disconnect connection
2.2 Connection of interface
RS232 communication interface use 3 cores quick connector
RS232 communication interface connection
