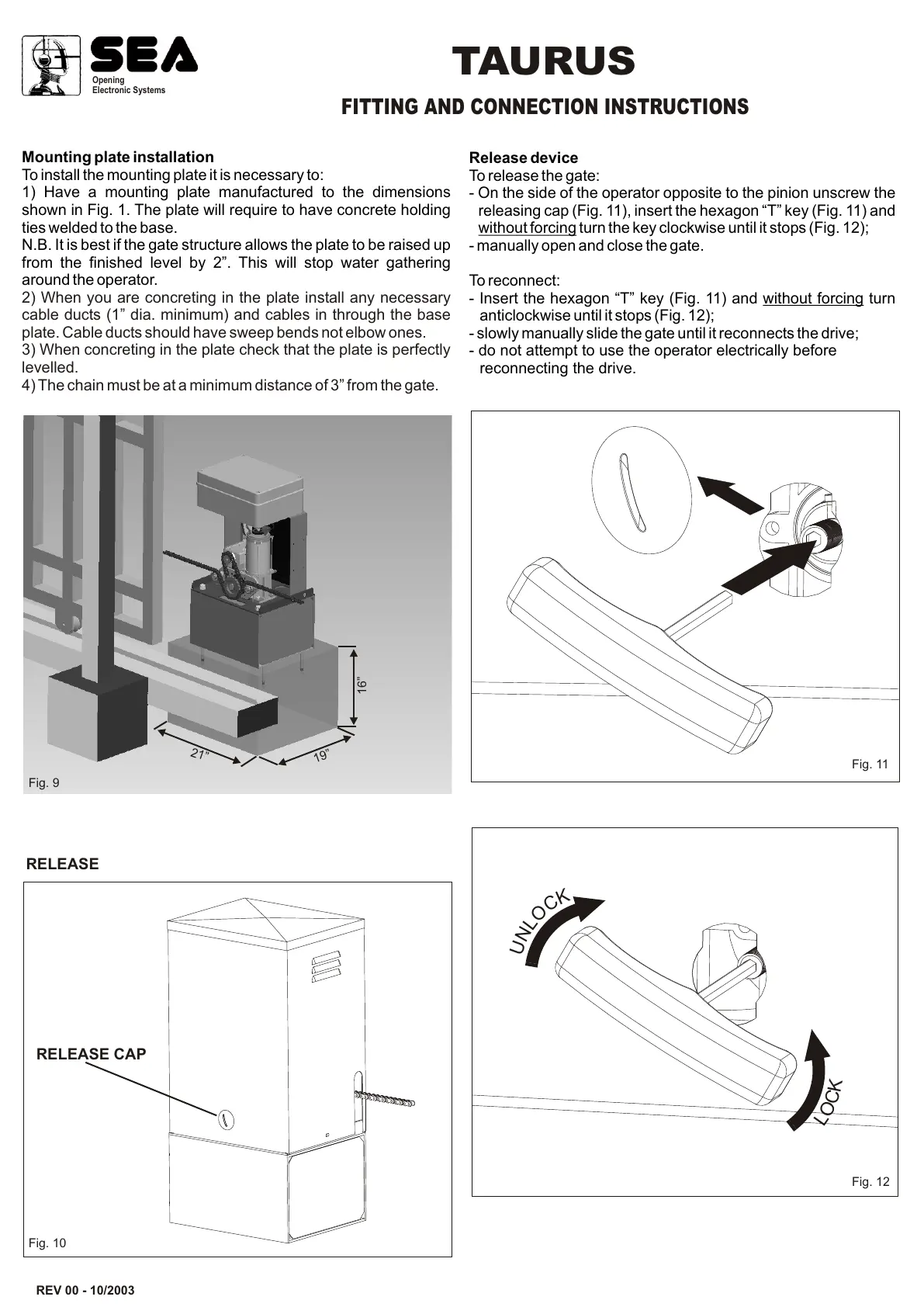

Mounting plate installation
To install the mounting plate it is necessary to:
1) Have a mounting plate manufactured to the dimensions
shown in Fig. 1. The plate will require to have concrete holding
ties welded to the base.
N.B. It is best if the gate structure allows the plate to be raised up
from the finished level by 2”. This will stop water gathering
around the operator.
2) When you are concreting in the plate install any necessary
cable ducts (1” dia. minimum) and cables in through the base
plate. Cable ducts should have sweep bends not elbow ones.
3) When concreting in the plate check that the plate is perfectly
levelled.
4) The chain must be at a minimum distance of 3” from the gate.
RELEASE
Fig. 9
16”
1”
9
2
1”
REV 00 - 10/2003
RELEASE CAP
Fig. 10
Opening
Electronic Systems
TAURUS
FITTING AND CONNECTION INSTRUCTIONS
Release device
To release the gate:
- On the side of the operator opposite to the pinion unscrew the
releasing cap (Fig. 11), insert the hexagon “T” key (Fig. 11) and
without forcing turn the key clockwise until it stops (Fig. 12);
- manually open and close the gate.
To reconnect:
- Insert the hexagon “T” key (Fig. 11) and without forcing turn
anticlockwise until it stops (Fig. 12);
- slowly manually slide the gate until it reconnects the drive;
- do not attempt to use the operator electrically before
reconnecting the drive.
Fig. 11
Fig. 12
K
C
O
L
N
U
K
C
O
L
