2.2 Video Overlay
The LBV is fitted with an informational Video Overlay. Use the overlay to keep track of
position and orientation. The Video Overlay can be manipulated to display the
information how it best suits the user.

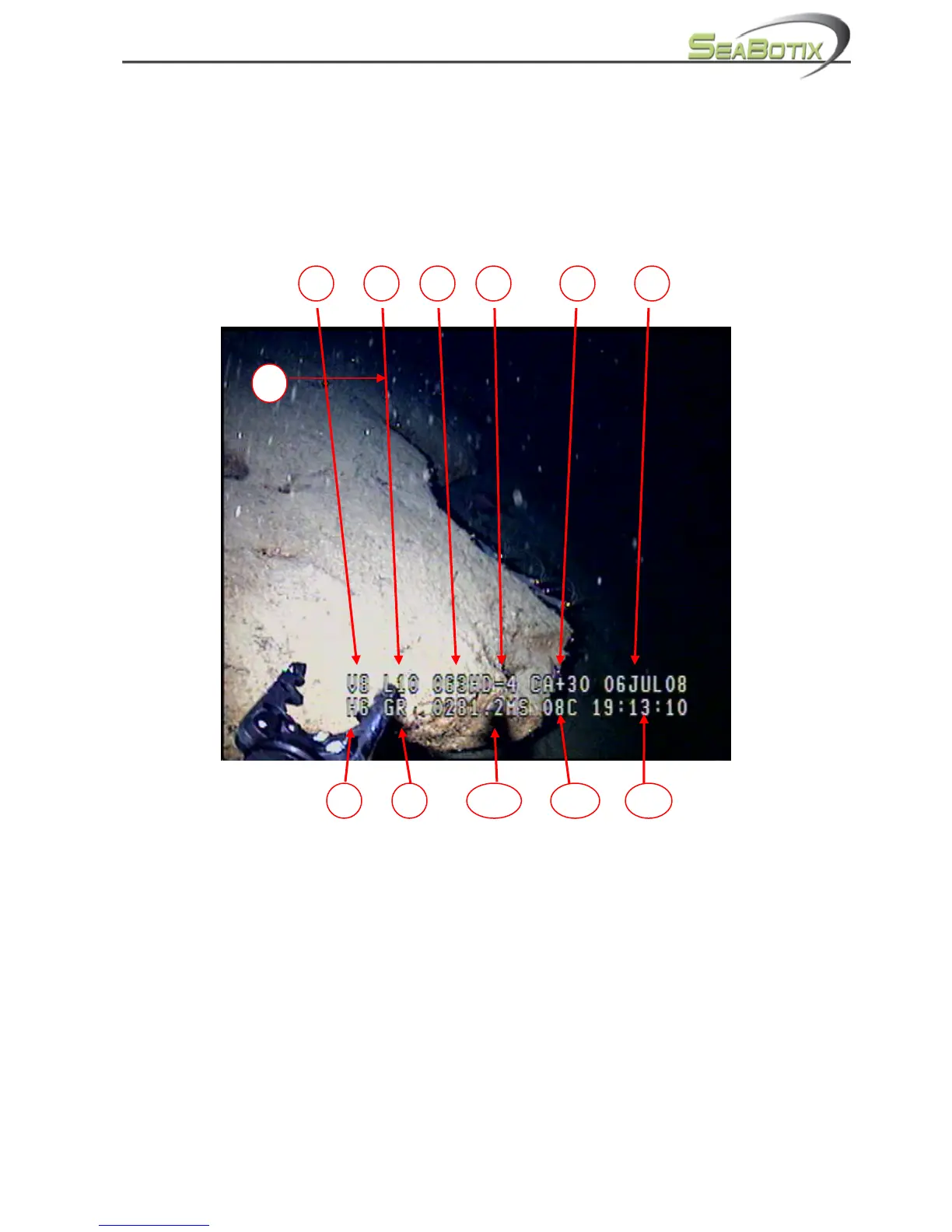

Video Overlay
1. User Text 7. Date
2. Vertical thruster GAIN 8. Horizontal Thruster GAIN
3. Internal Light & Trim Function 9. Selected Accessory
4. Heading 10. Depth & Reference
5. Turns Counter 11.Temperature & Reference
6. Camera Angle 12.Time
42 3 5 6 7
8 9 10
11 12
User text here
