DOCS-010 Manual, SeaBotix Inc. Users, 200 Series ā 18 Mar 09 - Rev B - Page 10 of 52

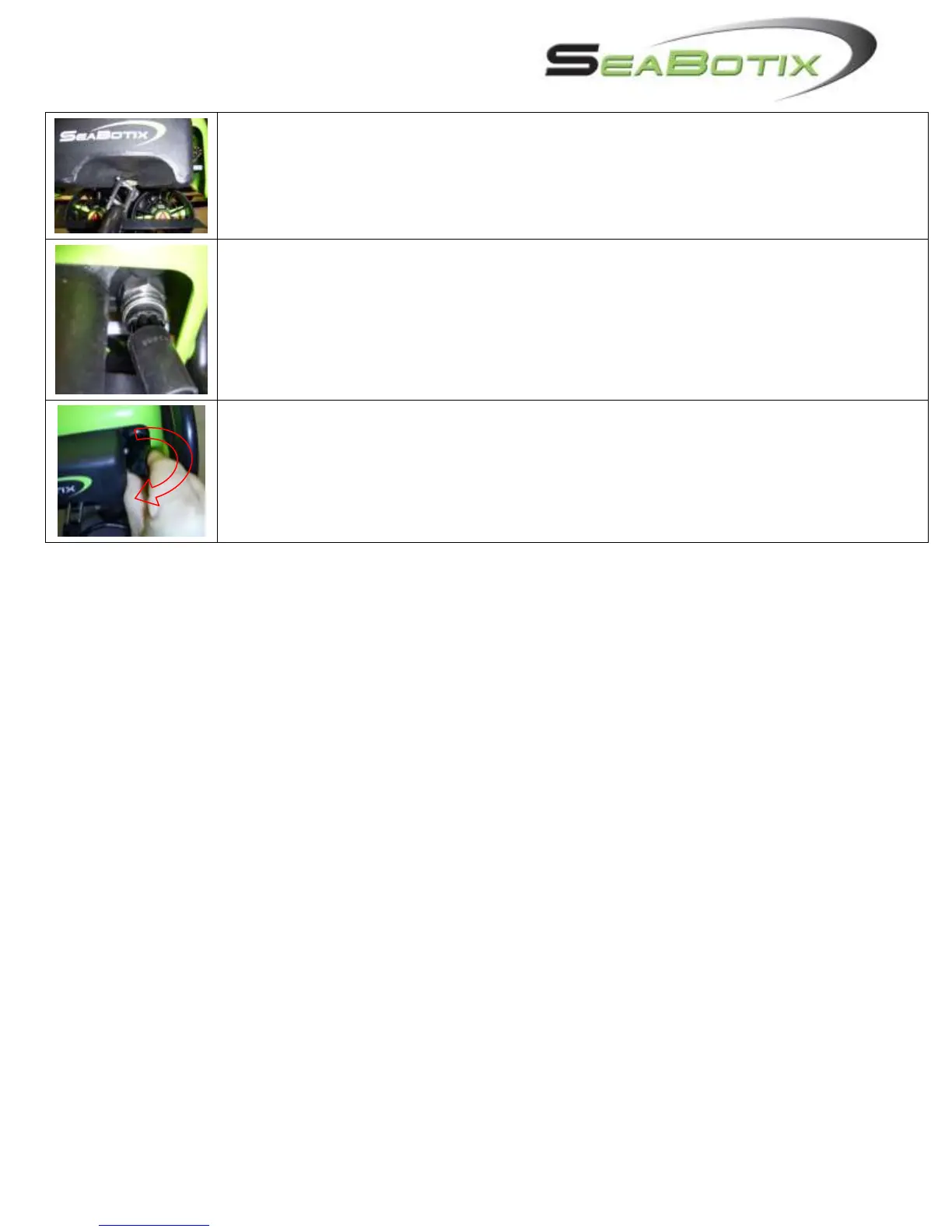

Step 6
Slide the shackle over the pad eye beneath the flotation module. Twist the locking
rod to secure.
Step 7
Push the female connector onto the male bulkhead connector being careful to align
the pins. On the 3-contact connectors there is a single small pin used for alignment.
Step 8
Tighten the locking ring clockwise. Do not over tighten.
Once the tether is connected to the LBV, the next step is to connect the Integrated Control
Console/Surface Power Supply. Again, ensure that the Integrated Control Console/Surface
Power Supply is OFF.
