1.3 Setting up the System
Select a suitable area from which the LBV will be deployed and controlled. The area should
be dry and not in direct sunlight. Now the LBV is ready to set up.
The first step is to connect the tether to the LBV. Prior to connecting, ensure that the
Integrated Control Console/Surface Power Supply is OFF.
1.3.1 LBV

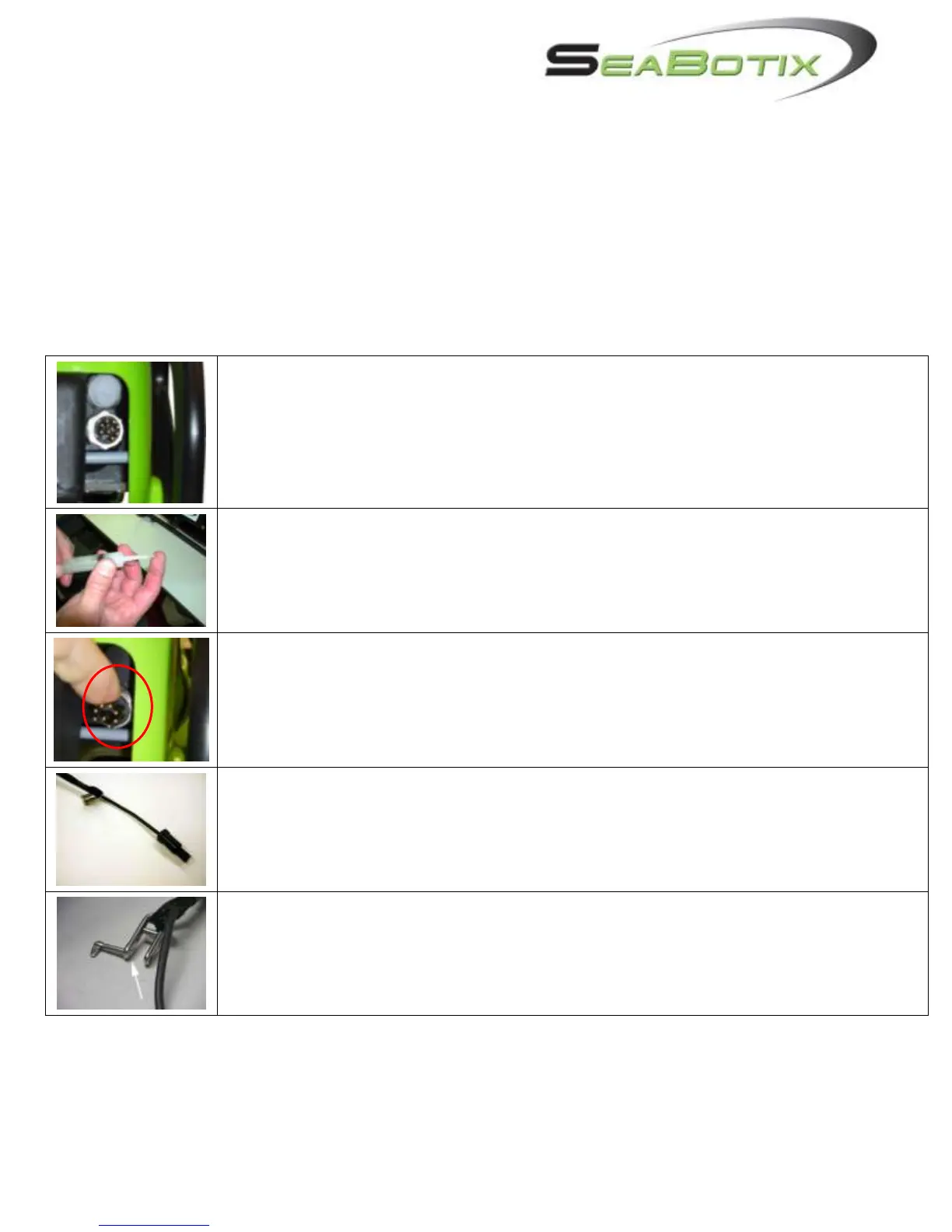

Step 1
Position the LBV so you that you can see the rear of the LBV. Located at the upper
right next to the flotation is an 8-contact male connector.
Step 2
Put a small amount of silicone grease on your finger. This is GLA001 which is
supplied with your order.
Step 3
Apply a small amount of the grease to the male pins on the bulkhead connector.
The grease is simply for lubrication and not a sealant.
Step 4
Locate the tether female connector and the strain relief.
Step 5
Open the shackle completely. Note: There is an indent to allow the locking rod to be
flush with the “D” portion of the shackle.
