DOCS-010 Manual, SeaBotix Inc. Users, 200 Series ā 18 Mar 09 - Rev B - Page 38 of 52

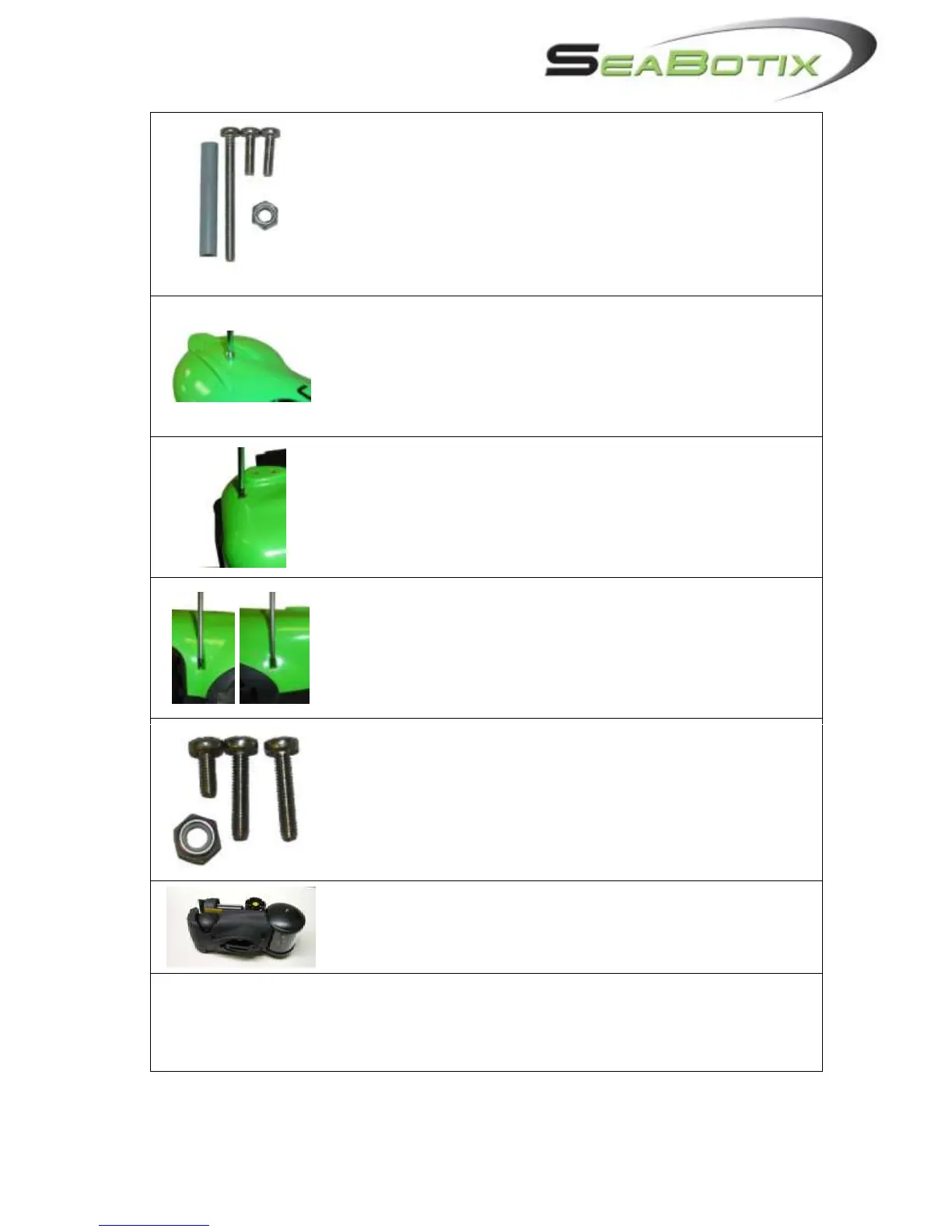

Step 18
Fasteners removed:
2 ea M4 X 20 Pan Phillips
1 ea M4 X 50 Pan Phillips
1 ea 44.6mm Spacer
1 ea M6 Nylock Nut
Step 19
Turn the LBV over. Remove the M6 Nyloc nut securing
the front of the shell to the camera housing end cap.
TO012 Required.
Step 20
Remove the M4 x 10 Phillips head screw securing the
rear portion of the shell to the float.
TO015 Required.
Step 21
Remove the 2 M4 x 20 Phillips head screws securing the
shell to the float.
TO015 Required.
Step 22
Fasteners removed:
2 ea M4 X 20 Pan Phillips
1 ea M4 X 10 Pan Phillips
1 ea M6 Nylock Nut
Step 23
Remove the shell.
Step 24
Soak the LBV in a container of fresh water or, use a hose
with a low velocity nozzle to rinse the LBV thoroughly.
