Operating Modes:
14A model features high or low water sensing automatic mode.
Pump starts when water reaches 4.5cm/1.77'' level, and stops when the water level is lower than 1cm/0.39''.
Typical Installation:
OFF
ON
1-3cm
4.5cm
14B model features electronic automatic mode.
Pump automatically turns on every 2.5 minutes.
2.5min
0.5sec
2.5min
0.5sec
2.5min
0.5sec
OFF
ON
1-3cm
ON
4.5cm
Side Mounting
Narrow Bilge
Shallow Bilge
Under Cockpit
Power Boat
Sail Boat

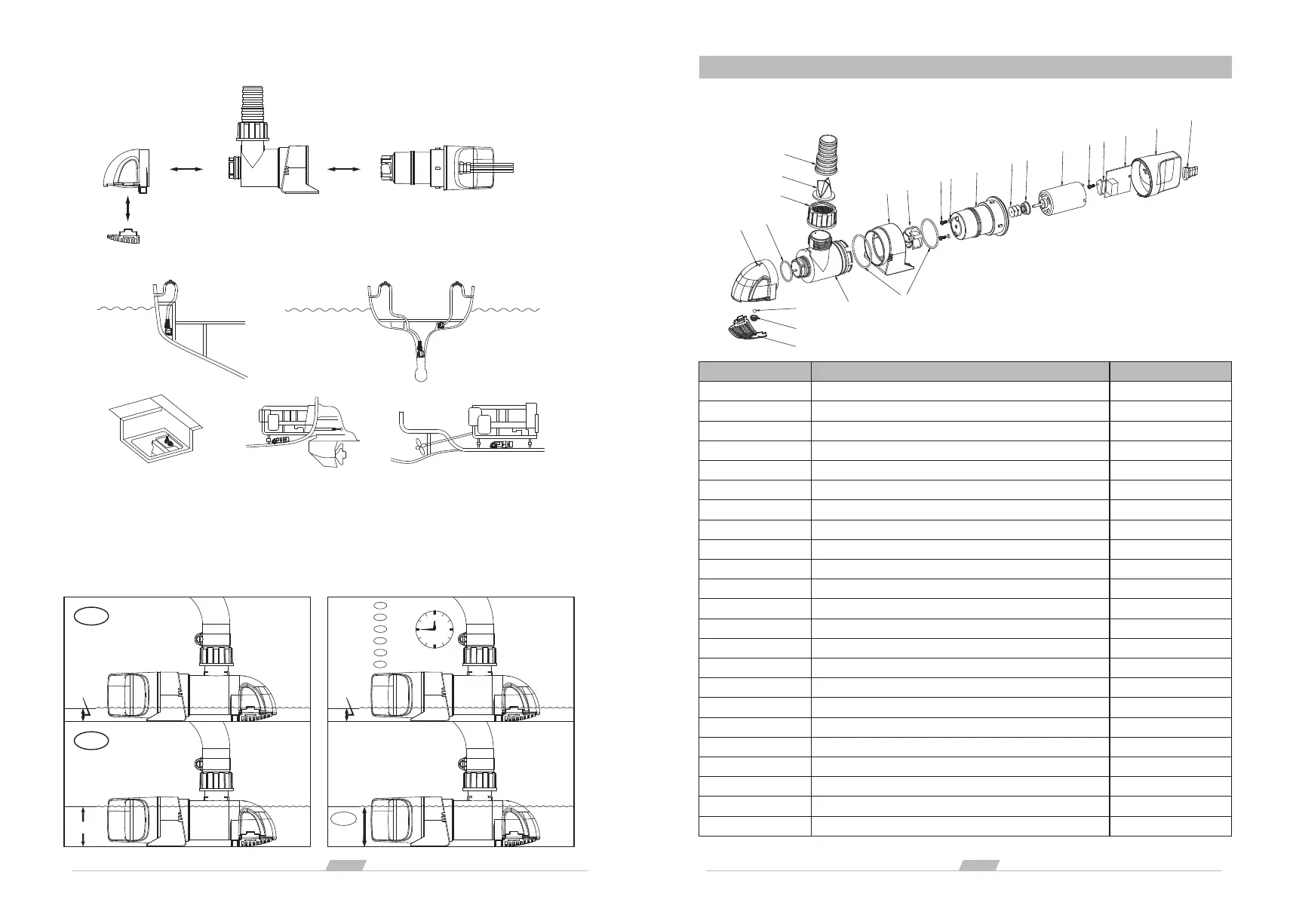

Disassembly and Reassembly:
14A14B
OFF
ON
OFF
ON
CONFIGURATIONS
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Key
Filter Head
Exhaust Bead
Exhaust Valve
Filter Net
Inlet Seal Ring
Pump Chamber
Pump Chamber Seal
Pump Base
Impeller
Machine Screw M3*8
Screw Seal
Motor Cover
Oil Seal
Oil Seal Seat
Motor
Self-tapping Screw
Circuit Board Buckle
Circuit Board
Motor Back Cover
Three-hole Line Card
Lock Nut
Check Valve
25-29mm Straight Fitting
1
1
1
1
1
1
2
1
1
2
2
1
3
1
1
1
1
1
1
1
2
1
1
Quantity
01
02
03
04
05
23
22
21
07
06
08
10
09
11
12
13
14
15
16
17
18
19
20
14A:
