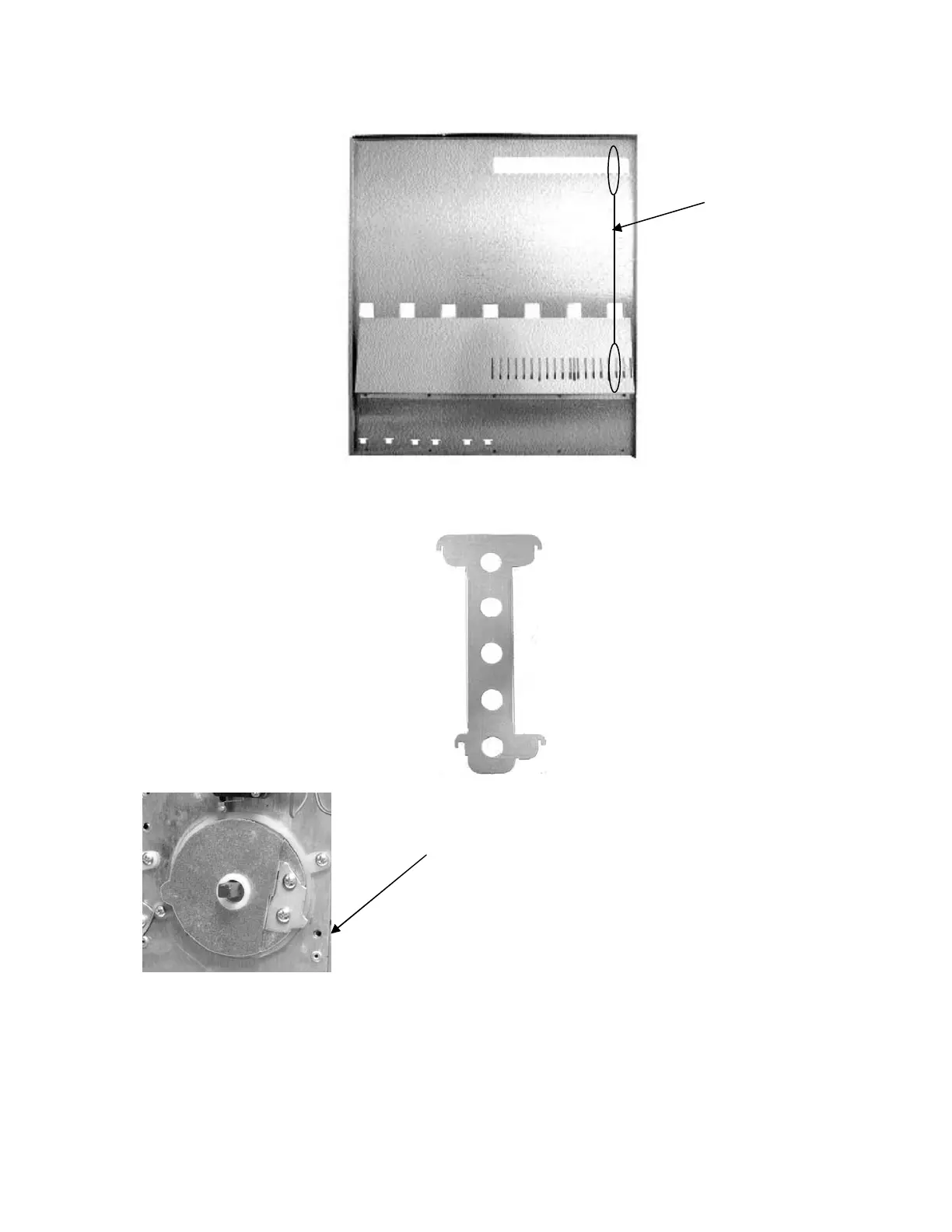

Figure 10 – Vertical Column Components
Bottle Cam shown
installed on auger.
Motor and
brackets removed.
Rear Spacer
Rear spacer position
for 16.9 oz. bottles
(20th slot)
You may need to adjust due to product height variance.
