Rev. 2013.08.19 11
Product Size Type
Rear
Spacer
Max
Load Notes
Coca-Cola and varieties 16.9 oz/500 ml Bottle 20 14 Load bottom to bottom
Pepsi, Diet Pepsi, Mt. Dew and
varieties 16.9 oz/500 ml Bottle 20 14 Load bottom to bottom
7 up and Diet 7up 16.9 oz/500 ml Bottle 19 14 Load bottom to bottom
Dr Pepper, Diet and varieties 16.9 oz/500 ml Bottle 19 14 Load bottom to bottom
Gatorade 16.9 oz/500 ml Bottle 16 12
Kit available from
parts@seagamfg.com
Nestle Water 16.9 oz/500 ml
Bottle
(soft) 16 20 Load bottom to bottom
Monster, Rock Star, etc. 16.9 oz/500 ml Can 8 14
Kit available from
parts@seagamfg.com
Coca-Cola and varieties 12 oz/355 ml Can 10 21
Kit available from
parts@seagamfg.com
Frappuccino 9.5 oz/281 ml
Bottle
(glass) na na Do not vend
Red Bull, Starbucks Double
Shot 8.4 oz/248 ml Can * *
Kit available from
parts@seagamfg.com
Coca-Cola and varieties, Pepsi,
Mt. Dew, etc. 24 oz/710 ml Bottle na na Do not vend
Bottle Shim shown Installed

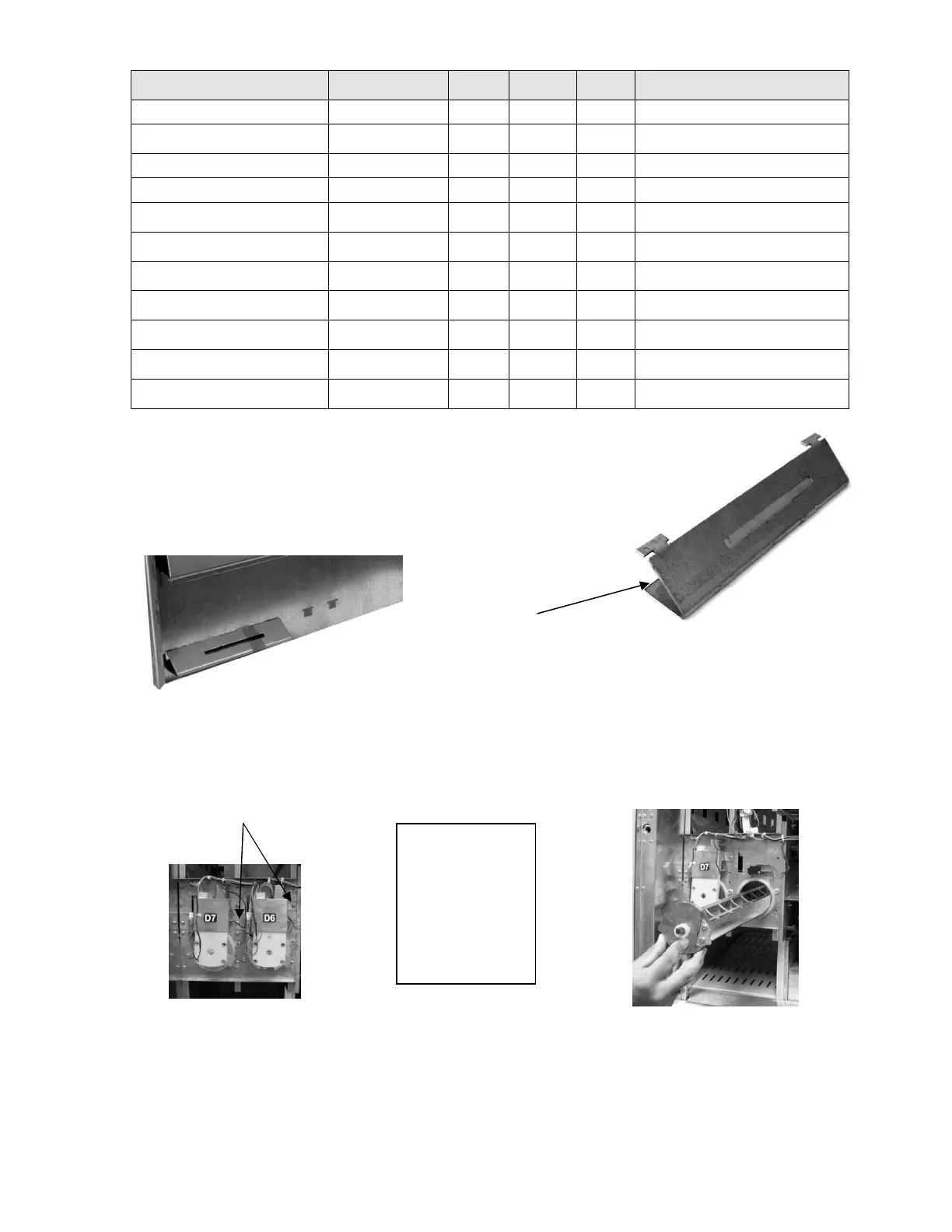

Figure 11 – Removing Vertical Drop Motors and Auger System
The Beverage unit does not ensure FIFO (first in first out). So whenever fresh beverages are loaded
(usually from the upper chutes) it is likely that the lower chutes of the can unit may still be holding
some older cans for a period of time. Although beverages have reasonably good shelf life, we
recommend that the Beverage unit be emptied once every 30 days and reloaded, so that a forced
product rotation takes place.
Bottle Shim
Remove two
screws holding in
motor/bracket.
Remove auger for
replacement.
If replacing motor,
unplug wire
harness and
re-assemble.
If replacing auger,
continue with
instruction to
right…
